Brand: Neutrik
|
SKU:
NE8FDY-C6

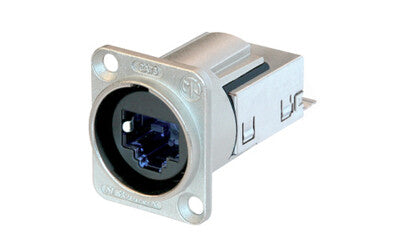

Neutrik NE8FDY-C6 | Panel Connector, IDC Termination, Stranded Cable, 24 to 22 AWG Solid, 26/7 to 22/7 AWG Stranded
Regular price
$47.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Neutrik NE8FDY-C6 | Panel Connector, IDC Termination, Stranded Cabl...
Regular price
$47.07
Unit price
Description
Description
Neutrik NE8FDY-C6 | Panel Connector, IDC Termination, Stranded Cable, 24 to 22 AWG Solid, 26/7 to 22/7 AWG Stranded
The etherCON CAT6 D-shape panel connectors with metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.
Neutrik - NE8FDY-C6 - Features
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 / Class EA according to TIA/EIA 568C and ISO/IEC 11801
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ground lead jumper on panel connector with selectable grounding option
- Gas-tight IDC termination without tool
- PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Specifications
Specifications
Neutrik - NE8FDY-C6 - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- AV Cable and Connectors
- Other AV Cable and Connectors
Neutrik - NE8FDY-C6 - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NE8FDY-C6 |
| Item Description | Panel Connector, IDC Termination, Stranded Cable, 24 to 22 AWG Solid, 26/7 to 22/7 AWG Stranded |
| Amperage Rating | 1.5 A |
| Cable Type | Stranded |
| Category | Category 5E |
| Conductor Material | Polycarbonate Insert, Bronze Contact |
| Conductor Size | 24 To 22 Awg Solid, 26/7 To 22/7 Awg Stranded |
| Product Type | Panel Connector |
| Temperature Rating | -10 To 60 C |
| Termination Type | Idc |
| Termination | 110 |
| Voltage Rating | 57 V |
