Brand: Northern
|
SKU:
730065

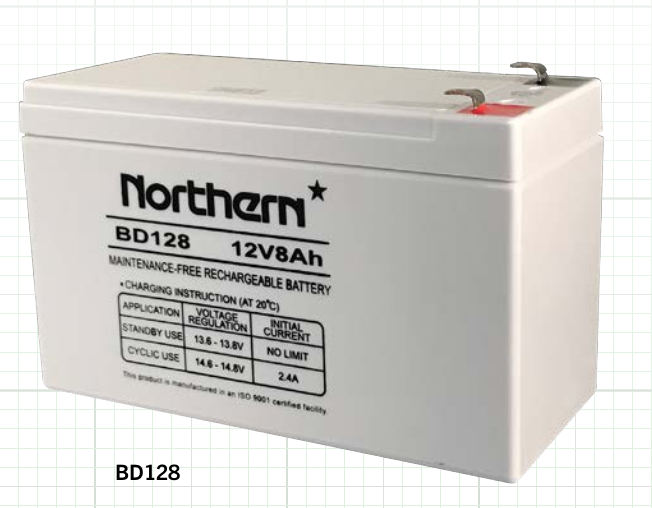

Northern BD128 | Sealed Lead Acid Battery, 12 Volt, 8 Amp-Hour
Regular price
$25.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern BD128 | Sealed Lead Acid Battery, 12 Volt, 8 Amp-Hour
Regular price
$25.83
Unit price
Description
Description
Northern BD128 | Sealed Lead Acid Battery, 12 Volt, 8 Amp-Hour
Categorized under - Shop by Manufacturer/Northern | Security | Intrusion Detection | Batteries and Transformers
Sealed Lead Acid Battery
Absorbant Glass Mat (AGM) technology for superior performance. Valve regulated, spill proof construction allows safe operation in any position. Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified. U.L. recognized under file number MH 20567.
Specifications
Specifications
Northern - BD128 - Specifications
| Nominal Voltage | 12V DC |
|---|---|
| Nominal Capacity20-hr. (0.40A) 10-hr. (0.74A) 5-hr. (1.36A) 1-hr. (4.8A) | 77º F (25º C)8.0Ah7.44Ah 6.80Ah4.8Ah |
| Approximate Weight | 4.96 lbs (2.25 kgs) |
| Internal Resistance (approx.) | 23m? |
| Shelf Life (% of normal capacity at 77º F (25º C) | 3 Months : 91%6 Months : 82%12 Months: 64% |
| Temperature Dependancy of Capacity (20 hour rate) | 104°F:102%77°F:100%32°F:85%5°F:65% |
| AGM Operational Temperature | Charge 32°F to 104°F (0°C to 40°C)Discharge5°F to 113°F (-15°C to 45°C) |
| AGM Storage Temperature | 5°F to 104°F (-15°C to 40°C) |
| Charge Method | (Constant Voltage) |
| Cycle Use | (Repeating Use) |
| Initial Current | 2.4 A or smaller |
| Control Voltage | 14.6 - 14.8 V |
| Float Use | Control Voltage13.6 - 13.8 V |
| Total Height | 4.21in (106.9 mm) |
| Height | 3.98in (101.1 mm) |
| Length | 3.54in (89.9 mm) |
| Width | 2.76in (70.1 mm) |
| Battery Type | Sealed Lead Acid |
| Type | Battery |
| UNSPSC Code | 46171600 |
