Brand: Northern
|
SKU:
10258677

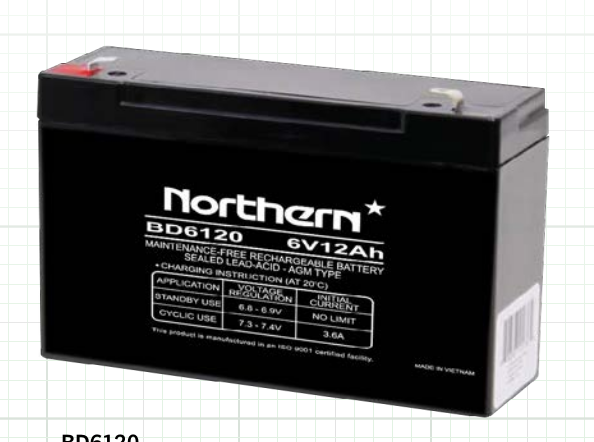

Northern BD6120 | Northern 6V 12Ah F1 Agm Battery
Regular price
$22.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern BD6120 | Northern 6V 12Ah F1 Agm Battery
Regular price
$22.53
Unit price
Description
Description
Northern BD6120 | Northern 6V 12Ah F1 Agm Battery
Categorized under - Shop by Manufacturer/Northern | Hardware | Power Products | UPS Systems
Sealed Lead Acid Battery
Absorbant Glass Mat (AGM) technology for superior performance. Valve regulated, spill proof construction allows safe operation in any position. Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified. U.L. recognized under file number MH 20567.
Specifications
Specifications
Northern - BD6120 - Specifications
| Nominal Voltage | 6 volts |
|---|---|
| Nominal Capacity20-hr. (0.60A)10-hr. (1.12A)5-hr. (2.04A)1-hr. (7.20A) | 77º F (25º C)12.00 Ah11.2 Ah10.02 Ah7.20 Ah |
| Approximate Weight | 4.18 lbs (1.89kgs) |
| Internal Resistance (approx.) | 12m? |
| Shelf Life (% of normal capacity at 68º F (20º C)) | 3 Months : 91%6 Months : 82%12 Months: 64% |
| Temperature Dependancy of Capacity(20 hour rate) | 104°F:102%77°F:100%32°F:85%5°F:65% |
| AGM Operational Temperature | Charge32°F to 104°F (0°C to 40°C)Discharge5°F to 113°F (-15°C to 45°C) |
| AGM Storage Temperature | 5°F to 104°F (-15°C to 40°C) |
| Charge Method | (Constant Voltage) |
| Cycle Use | (Repeating Use) |
| Initial Current | 3.6 A or smaller |
| Control Voltage | 7.3 - 7.4 V |
| Float Use | Control Voltage6.8 - 6.9 V |
| Total Height | 3.94 inches (100mm) |
| Height | 3.70 inches (94mm) |
| Length | 5.94 inches (151mm) |
| Width | 1.94 inches (49.3mm) |
| Weight | Approx. 4.18 lbs (1.89Kg) |
| Type | Battery |
| UNSPSC Code | 39121011 |
