Brand: Northern
|
SKU:
1019747

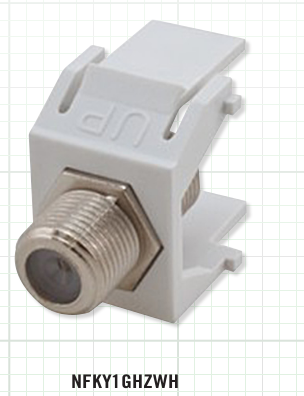

Northern NFKY1GHZWH | F Keystone Insert 1Mhz White, Fmale F-Connector Insert, White
Regular price
$0.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern NFKY1GHZWH | F Keystone Insert 1Mhz White, Fmale F-Connect...
Regular price
$0.57
Unit price
Description
Description
Northern NFKY1GHZWH | F Keystone Insert 1Mhz White, Fmale F-Connector Insert, White
Categorized under - Shop by Manufacturer/Northern | Communications | Copper Cabling Infrastructure | Copper Jacks
Part Number: NFKY1GHZWH
Northern - NFKY1GHZWH - Features
- F-Type Female to Female
Specifications
Specifications
Northern - NFKY1GHZWH - Specifications

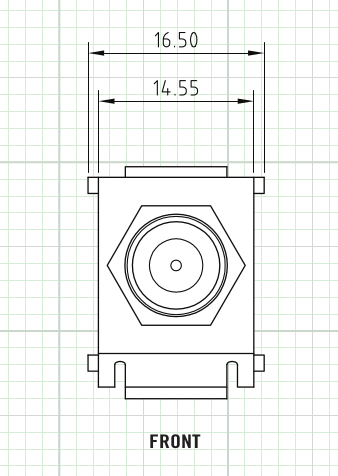

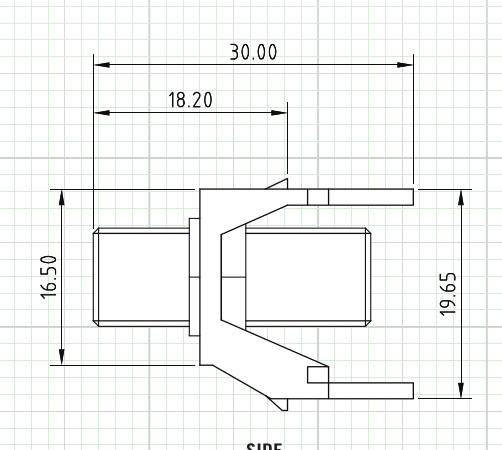

| Depth | 30.00 mm | 1.181 in |
|---|---|
| Height | 16.50 mm | 0.650 in |
| Width | 16.50 mm | 0.650 in |
| Construction Materials:Housing | Brass W/ Nickel Plating |
| Seizing Pin | 360º Beryllium Bronze W/ Gold Plating |
| Insulator | Nylon Dielectric | Blue |
| Plastic Material | ABS 94V-0 |
| Nut Material | Iron Plated W/ Nickel Over Copper |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cUL | UL |
| Relative Humidity | Up to 93%, Non-Condensing |
| Operating Temperature | -40ºC to + 65ºC ( -40 °F to + 149 °F) |
| Seizing Pin (Accepts Center Conductors) | Range (0.64 mm - 1.07 mm Diameter) |
| Holding Force | >160 Grams (Initial)>120 Grams (After Insertion) |
| Housing Shall Support | 2.2Kg Force (Min) Applied to InsulatorFrom Either Direction |
| Frequency Range | DC -1HGz |
| Insertion Loss | < 0.2 dB |
| Return Loss | > 30dB |
| Contact Resistance | < 4 Milliohms |
| Color | White |
| UNSPSC Code | 39121444 |
