Brand: Northern Video
|
SKU:
9955169
Northern Video HDBIR60WD | Tvi/Cvi/Ahd/960H 1080P Bullet, 2.8Mm, True Wdr,690', 12Vdc, Ip67 - White
Regular price
$24.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video HDBIR60WD | Tvi/Cvi/Ahd/960H 1080P Bullet, 2.8Mm, Tr...
Regular price
$24.75
Unit price
Brand: Northern Video
|
SKU:
9955169
Regular price
$24.75
Unit price
Shipping calculated at checkout.
Description
Description
Northern Video HDBIR60WD | Tvi/Cvi/Ahd/960H 1080P Bullet, 2.8Mm, True Wdr,690', 12Vdc, Ip67 - White
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Surveillance Cameras
4-in-1, Full HD 1080p Outdoor Bullet Camera True WDR, 2.8mm IR Lens, 60’ IR Range
Northern Video - HDBIR60WD - Features
- Multi Format (TVI, CVI, AHD, 960H)
- True 120dB Wide Dynamic Range
- True Day/Night Mechanical IR Cut Filter
- 2.8mm Fixed Focal IR Lens
- 24 IR LED’s / 60’ IR Range
- UTC & Joystick Controllable OSD
- 3D Digital Noise Reduction
- 12 Volt DC Power
- IP67 Weatherproof
Specifications
Specifications
Northern Video - HDBIR60WD - Included Accessories
- Camera
- User Manual
- Mounting Screws
Northern Video - HDBIR60WD - Specifications
| Image Sensor | 1/2.8" CMOS Sensor |
|---|---|
| Total Pixels | 1984 x 1225 |
| Active Pixels | 1920 x 1080 |
| Resolution | 1920 x 1080 (1080p) |
| Scanning System | Progressive Scan |
| OSD (On Screen Display) | Dual OSD Access: Cable OSD Controlled / UTC Controlled (coaxial control) |
| True WDR (Wide Dynamic Range) | Yes- 120dB |
| DNR (Digital Noise Reduction) | 3D DNR - Auto, Manual (0~30), Off |
| Video Output | TVI, CVI, AHD & 960H (Selectable via OSD Cable) |
| Lens Type / Viewing Angle | 2.8mm IR Lens - H: 108.9° V: 58.8° |
| Shutter Speed | Auto, Manual 1/25 ~ 1/10,000 |
| IR Cut Filter | Built in Mechanical |
| Minimum Illumination | Color 0.001 Lux, B/W 0.0 Lux, IR LED ON |
| IR LED Count / Range | 24 IR LED's / 60' Range / 850nM |
| S/N Ratio | More than 50dB |
| Automatic Gain Control | Auto, Manual 0 ~16 Adjustable |
| Sync System | Internal |
| Gamma Characteristics | y = 0.45 typ |
| White Balance | ATW, MWB - R & B Gain 0~32 Adjustable |
| Back Light Compensation | Globe / BLC / 1~8 Adjustable |
| Day/Night | EXT / Auto / Color / B/W |
| Languages | English, French, Spanish, German, Italian (see OSD Menu for more) |
| Brightness | 0 ~30 Adjustable |
| Power Input | 12VDC Only |
| Power Requirement | 110mA /390 mA IR LED ON |

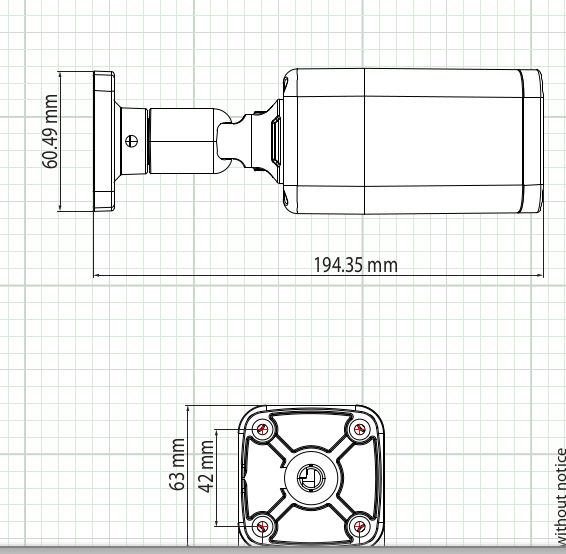

| Overall Camera Dimensions | 7.7" x 2.5" (195mm x 63mm) |
| Housing / Color | Aluminum / White |
| Weight | 1.08lb / 490g |
| Operating Temperature | (-14°F ~ 131°F |
| Weatherproof Rating | IP67 |
| Compression Type | Multiple Compression Types |
| Poe | Yes |
| Environment | Indoor / Outdoor |
| Form Factor | Bullet |
| Lens Type | Fixed 2.8 Millimeter |
| Position Type | Fixed |
| Resolution | 1920 X 1080 |
| Signal Process | Ip |
| UNSPSC Code | 46171610 |
