Brand: Northern Video
|
SKU:
10095856
Northern Video HDBXWDR | Box Camera, 5Mp, Tvi/Cvi/Ahd/960H, True Wdr, Otc, Osd, Dual Voltage, No Lens
Regular price
$152.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video HDBXWDR | Box Camera, 5Mp, Tvi/Cvi/Ahd/960H, True Wd...
Regular price
$152.52
Unit price
Brand: Northern Video
|
SKU:
10095856
Regular price
$152.52
Unit price
Shipping calculated at checkout.
Description
Description

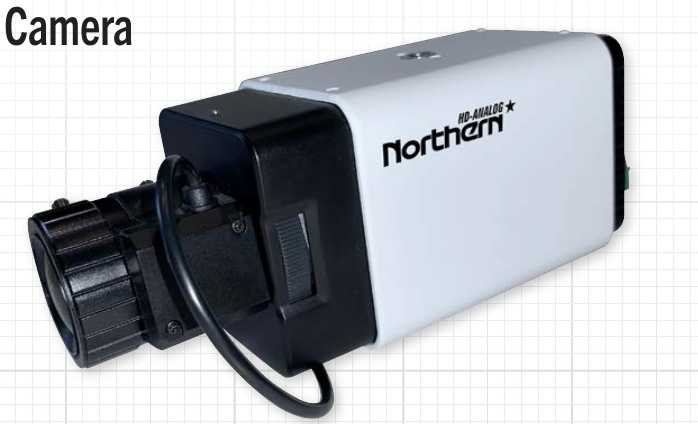

Northern Video HDBXWDR | Box Camera, 5Mp, Tvi/Cvi/Ahd/960H, True Wdr, Otc, Osd, Dual Voltage, No Lens
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Surveillance Cameras
5MP, 4-in-1, True Wide Dynamic Box Camera OSD, UTC, 3DNR - Lens Sold Separately
Northern Video - HDBXWDR - Features
- Up to 5MP Resolution (TVI/AHD)
- Multi Format (TVI, CVI, AHD, 960H)
- True 120dB Wide Dynamic Range
- True D/N Mechanical IR Cut Filter
- 12VDC/24VAC Dual Voltage Power
- Accepts C/CS Lenses (Lens Sold Separately)
- Back Panel & UTC Controllable OSD
- Adjustable Shutter Speed
- 3D Digital Noise Reduction
- Top & Bottom Mounting Holes
- Adjustable Back Focus
- Indoor Only
Specifications
Specifications
Northern Video - HDBXWDR - Additional Information
- Enter the OSD by pressing the center button. Use UP, Down, Left & Right Arrows to navigate & Adjust OSD settings.
- Insert bare power leads into screw terminals on back of Camera.
- Insert video lead into BNC connector, Push, then Twist to lock BNC Connector in place.
Northern Video - HDBXWDR - Included Accessories
- User Manual
- C-CS Mounting Adapter
- Power Connector.
- OPTIONAL MOUNTING ACCESSORIES:

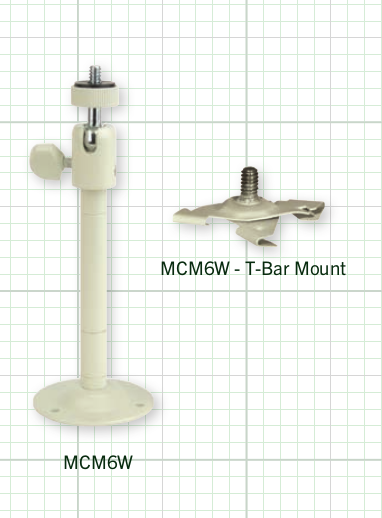

- Metal Dual Option Camera Mounts
- MCM6W - White Camera Mount with Wall/Ceiling & T-Bar Mount
Northern Video - HDBXWDR - Specifications
| Image Sensor | 1/2.8" Sony CMOS |
|---|---|
| Active Pixels | 2688(H)×1944(V) |
| Resolution | Up to 5 Megapixel (5MP TVI/AHD), 4MP&2MP (TVI/AND/CVI), 960H |
| Resolution Default | TVI 1080p |
| Scanning System | Progressive Scan |
| OSD (On Screen Display) | Back Panel / UTC Controlled (coaxial control) |
| True WDR (Wide Dynamic Range) | 120dB |
| 3D Digital Noise Reduction | Yes (OFF / LOW / MIDDLE / HIGH) |
| Video Output | TVI, CVI, AHD & 960H (Selectable via OSD Menu) |
| Lens Type | Accepts C/CS Mount (CS Adapter Included) |
| Iris Type | DC Auto-Iris |
| Sense-up | Yes (x2 ~ x32 Adjustable) / OFF |
| Shutter Speed | Auto / FLK / Manual (1/30s ~ 1/30,000s) |
| IR Cut Filter | Yes - Built in Mechanical |
| Minimum Illumination | Color (0.03) / B&W (0.003 lux) |
| S/N Ratio | More than 52dB |
| Automatic Gain Control | Yes (0~10 Adjustable) |
| Sync System | Internal |
| White Balance | Yes AUTO / MANUAL (C-TEMP, R-GAIN / B-GAIN) Adjustable |
| Back Light Compensation | Yes ON/OFF (H/V Position & Size Adjustable) |
| HLC | Yes ON/OFF (Level & Color Adjustable) |
| Day/Night | Auto / COLOR / B&W / EXT / (D>N, N>D, Delay Adjustable) |
| Mirror | Yes |
| Digital Zoom | 1x ~ 16X |
| Languages | ENG / CHN / CHN(S) /JPN / KOR |
| Brightness ) | Yes (1~20 Adjustable |
| Motion Detection | Yes, 4-Zone Adjustable |
| Privacy Mask | Yes, 16-Zone Adjustable |
| Power Input | 12 VDC±10%, 24 VAC±10% |
| Power Requirement | 180mA |

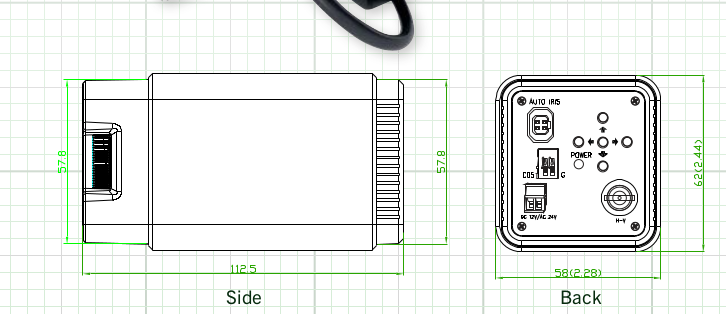

| Overall Camera Dimensions | 58×62×128mm (2.28"×2.44"×5.04") |
| Weight | Approx.85lb / 385g |
| Operating Temperature | -10°C – 60 °C (14°F – 140°F) |
| Weatherproof Rating | Indoor Only |
| Poe | No |
| Environment | Indoor / Outdoor |
| Form Factor | Box |
| Position Type | Fixed |
| Resolution | 5 Megapixels |
| Signal Process | Analog |
| UNSPSC Code | 46171600 |
