Brand: Northern Video
|
SKU:
988687
Northern Video HDLPCAM | Tvi/Cvi/Ahd/960H License Plate, Bullet, 9-22Mm, 50' Range, Ip66, White
Regular price
$249.60
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video HDLPCAM | Tvi/Cvi/Ahd/960H License Plate, Bullet, 9-...
Regular price
$249.60
Unit price
Brand: Northern Video
|
SKU:
988687
Regular price
$249.60
Unit price
Shipping calculated at checkout.
Description
Description
Northern Video HDLPCAM | Tvi/Cvi/Ahd/960H License Plate, Bullet, 9-22Mm, 50' Range, Ip66, White
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Surveillance Cameras

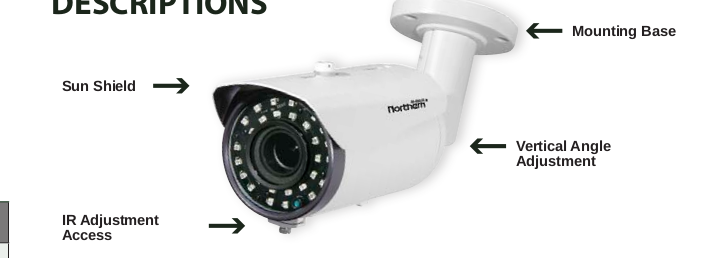

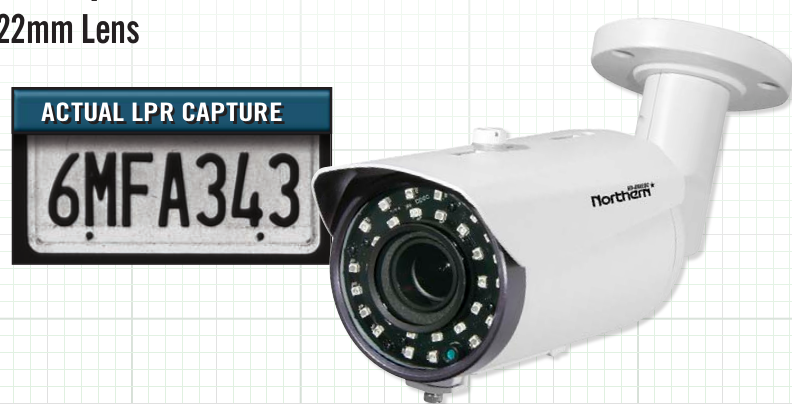

4-in-1 Full HD 1080p License Plate Capture Camera OSD, True D/N - DWDR, IP66, Motorized 9~22mm Lens
Northern Video - HDLPCAM - Features
- Multi Format (TVI, CVI, AHD, 960H)
- Full HD 1080p Resolution
- Motorized 9~22mm Auto Iris IR Lens
- 42 IR LED’s
- 50’ Plate Capture Range
- 44 MPH Plate Capture Speed
- Digital Wide Dynamic Range
- True Day/Night Mechanical IR Cut Filter
- UTC Controllable OSD & Joystick
- Sense-up / Slow Shutter Speed
- 12VDC/24VAC Dual Voltage Power
- 3D Digital Noise Reduction
- 1/2.9" Sony CMOS Sensor
- 3-Axis Cable Management Mount
- IP66 Weatherproof
Specifications
Specifications
Northern Video - HDLPCAM - Included Accessories
- Mounting Hardware Packet
- Mounting Template
- L-Style Wrench
Northern Video - HDLPCAM - Specifications
| Image Sensor | 1/2.9" Sony CMOS Sensor |
|---|---|
| Total Pixels | 1984 x 1225 |
| Active Pixels | 1920 x 1080 |
| Resolution | 1920 x 1080 (1080p) |
| Scanning System | Progressive Scan |
| OSD (On Screen Display) | Dual OSD Access: Cable OSD Controlled / UTC Controlled (coaxial control) |
| D-WDR (Digital Wide Dynamic Range) | Auto / Off / On (0 ~8 Adjustable) |
| DNR (Digital Noise Reduction) | 2D & 3D (Off / Low / Middle / High) |
| Video Output | BNC Video Connector |
| Lens Type - True Day Night | Motorized 9 ~ 22mm Varifocal Auto Iris IR Lens |
| Sense-up | Off / x2 ~ x30 |
| Shutter Speed | Auto, FLK, 1/30 ~ 1/50,000, x2 ~ x30 |
| IR Cut Filter | Built in Mechanical |
| Minimum Illumination | 0.0 Lux IR LED On |
| IR LED Count / Range | 42 IR LED’s / 50’ Range / 850nM |
| Plate Capture Viewing Angle | 14° ~ 32° Vertical / 8° ~ 35° Horizontal |
| Plate Capture Speed | 44 MPH |
| Plate Capture Range | Up to 50 |
| S/N Ratio | More than 52dB |
| Automatic Gain Control | 0 ~15 Adjustable |
| Sync System | Internal |
| Gamma Characteristics | y = 0.45 typ |
| White Balance | ATW / AWC->Set / Indoor / Outdoor / Manual |
| Back Light Compensation | Off / BLC / HSBLC |
| HBLC (High Back Light Compensation) | On / Off 4-Zone, Level & Mode Adjustable |
| Day/Night | EXT / Auto / Color / B/W |
| Mirror | Mirror / V-Flip / Rotate / Of |
| Languages | English, French, Spanish, German, Italian (see OSD Menu for more) |
| Brightness | 0 ~100 Adjustable |
| Motion Detection | On/Off (4 Zone Selectable) |
| Privacy Mask | On/Off (4 Zone Selectable) |
| Power Input | 12VDC/24VAC +/- 10% Dual Voltage Power |
| Power Requirement | 400mA / 900mA IR LED ON |

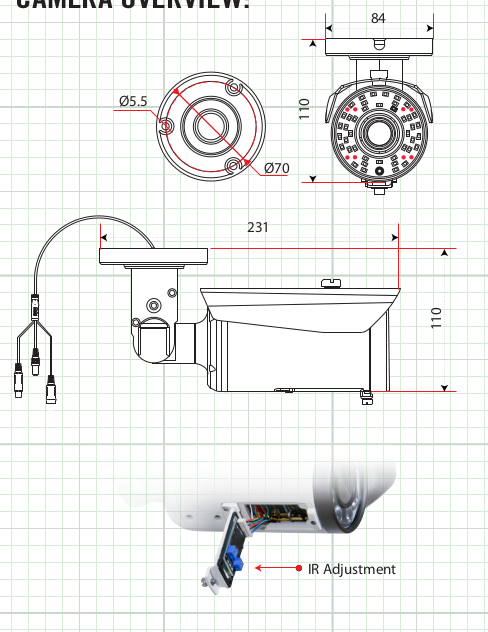

| Overall Camera Dimensions | 9.1" x 3.3" x 4.3" (231mm x 84mm x 110mm) |
| Housing / Color | Aluminum - White |
| Weight | 1.6 Lb. |
| Operating Temperature | -22°F ~ 122°F |
| Weatherproof Rating | IP66 |
| UNSPSC Code | 46171610 |
