Brand: Northern Video
|
SKU:
9783364
Northern Video HDMBIR120 | Tvi/Cvi/Ahd/960H 1080P Bullet Cam 2.8-12Mm, 120' Ir - Gray
Regular price
$32.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video HDMBIR120 | Tvi/Cvi/Ahd/960H 1080P Bullet Cam 2.8-12...
Regular price
$32.05
Unit price
Brand: Northern Video
|
SKU:
9783364
Regular price
$32.05
Unit price
Shipping calculated at checkout.
Description
Description

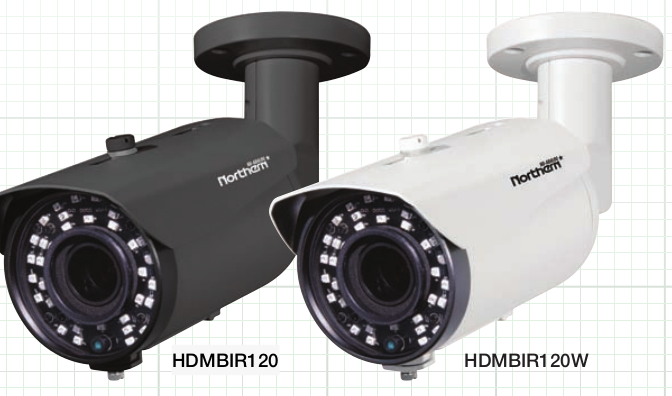

Northern Video HDMBIR120 | Tvi/Cvi/Ahd/960H 1080P Bullet Cam 2.8-12Mm, 120' Ir - Gray
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Surveillance Cameras
4-in-1, Full HD 1080p Outdoor Bullet Cameras
Semi Autofocus 2.8 ~ 12mm Lens, 120’ IR Ranges
Northern Video - HDMBIR120 - Features
- Multi Format (TVI, CVI, AHD, 960H)
- Semi-Autofocus 2.8 ~ 12mm Lens
- Full HD 1080p Resolution
- 42 IR LED’s / 120’ IR Range
- Easy Access OSD Hatch
- Video Test Output & Cable
- True Day/Night Mechanical IR Cut Filter
- Digital Wide Dynamic Range
- Cable Management Mount
- Sense-up / Slow Shutter Speed
- UTC & Joystick Controllable OSD
- 12 Volt DC Power
- 3D Digital Noise Reduction
- 1/2.9" Sony CMOS Sensor
- IP66 Weatherproof
Specifications
Specifications
Northern Video - HDMBIR120 - Additional Information
- CAMERA CABLE CONNECTION
- Insert power lead into power connector: be sure proper voltage is supplied and observe polarity.
- Insert video lead into BNC connector: push, then twist to lock BNC connector in place.

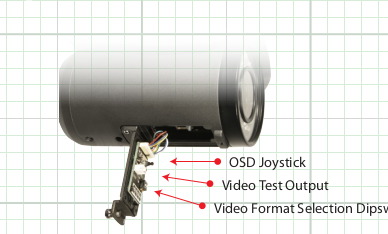

- OSD CONTROL
- Press Up/Down to Zoom In/Out
- Press Left/Right for Fine Focusing
- Press in on the OSD button to access the OSD menu and sub-menus
- While in the OSD menu - press up, down, left and right to navigate/change OSD settings
- LENS ADJUSTMENT
- Loosen Screw on the OSD Panel at the bottom of Housing.
- Open OSD Panel.
- Press U/D for Zoom In/Out.
- Move to Desired Zoom Level & Stop Pressing Joystick—
- The Lens Will Focus Automatically.
- If Image is blurred, se L/R to Fine Focus or
- Press U/D again to AutoFocus.
- Lens Adjustment Can Also Be Performed via UTC Enabled DVR
- PACKAGE CONTENTS: Mounting Hardware Packet, L-Style Wrench, Mounting Template
Northern Video - HDMBIR120 - Included Accessories
- User Manual
- Mounting Screws
- Video Test Cable
- Adjustment Wrench
Northern Video - HDMBIR120 - Specifications
| Image Sensor | 1/2.8" CMOS Sensor |
|---|---|
| Total Pixels | 1984 x 1225 |
| Active Pixels | 1920 x 1080 |
| Resolution | 1920 x 1080 (1080p) |
| Scanning System | Progressive Scan |
| OSD (On Screen Display) | Dual OSD Access: Cable OSD Controlled / UTC Controlled (coaxial control) |
| Digital WDR (Wide Dynamic Range) | Auto / Off / On - 0 ~ 8 Adjustable |
| DNR (Digital Noise Reduction) | 2D & 3D, Low, Middle, High, Of |
| Video Output | TVI, CVI, AHD & 960H(Selectable via Dipswitch) |
| Lens Type / Viewing Angle | TDN Semi Auto-Focus 2.8 ~ 12mm Lens / 28° ~ 90° |
| Shutter Speed | Auto, FLK, 1/30 ~ 1/50,000, x2 ~ x30 |
| IR Cut Filter | Built in Mechanical |
| Minimum Illumination | Color 0.001 Lux, B/W 0.0 Lux, IR LED ON |
| IR LED Count / Range | 42 IR LED's / 120' Range / 850nM |
| S/N Ratio | More than 52dB |
| Automatic Gain Control | 0 ~15 Adjustable |
| Sync System | Internal |
| Gamma Characteristics | y = 0.45 typ |
| White Balance | AWB / ATW / AWC->Set / Indoor / Outdoor / Manual |
| Back Light Compensation | Off / BLC / HSBLC |
| HBLC (High Back Light Compensation) | On / Of |
| Day/Night | EXT / Auto / Color / B/W |
| Mirror | Mirror / V-Flip / Rotate / Of |
| Languages | English, French, Spanish, German, Italian (see OSD Menu for more) |
| Brightness | 0 ~100 Adjustable |
| Motion Detection | On/Off (4 Zone Selectable) |
| Privacy Mask | On/Off (4 Zone Selectable) |
| Power Input | 12VDC Only |
| Power Requirement | 150mA /600mA IR LED ON |

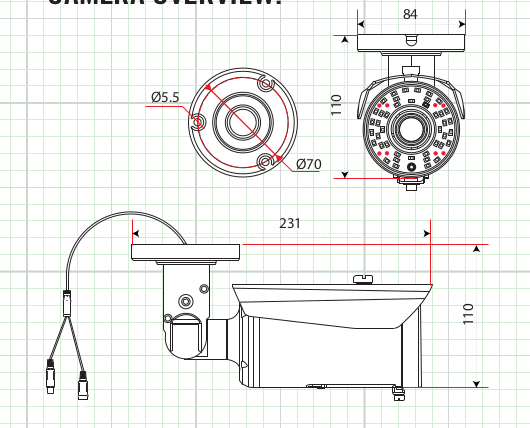

| Overall Camera Dimensions | 9.1" x 3.3" x 4.3" (231mm x 84mm x 110mm) |
| Housing / Color | Grey : White |
| Weight | 1.6lb |
| Operating Temperature | -14°F ~ 122°F`` |
| Weatherproof Rating | IP66 |
| Poe | No |
| Environment | Indoor / Outdoor |
| Form Factor | Bullet |
| Lens Type | Vari-Focal 2.8-12 Millimeter |
| Position Type | Fixed |
| Resolution | 1920 X 1080 |
| Signal Process | Analog |
| UNSPSC Code | 46171600 |
