Brand: Northern Video
|
SKU:
9808391

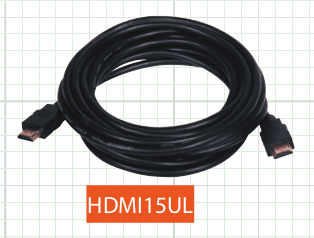

Northern Video HDMI15UL | Cable Assembly A/V, Hdmi, 15' Hdmi V2.0, 3D, Arc, Ethernet, Ul
Regular price
$11.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video HDMI15UL | Cable Assembly A/V, Hdmi, 15' Hdmi V2...
Regular price
$11.18
Unit price
Brand: Northern Video
|
SKU:
9808391
Regular price
$11.18
Unit price
Shipping calculated at checkout.
Description
Description
Northern Video HDMI15UL | Cable Assembly A/V, Hdmi, 15' Hdmi V2.0, 3D, Arc, Ethernet, Ul
Categorized under - Shop by Manufacturer/Northern Video | Audio and Visual | AV Cable and Connectors | AV Cable Assemblies
4K @ 60Hz High Speed HMDI 2.0 Cables - 3’, 6’, 15’ 3D, Ethernet, ARC, HDR, 18Gbps, UL
Specifications
Specifications
Northern Video - HDMI15UL - Specifications
| Signal Bandwith | 18Gbps |
|---|---|
| Nominal Impedence with Tolerance | 100? |
| Nominal Compacitance | less 0.5pf |
| Dielectric Strength | AC- 750V/1sec MIN |
| Insulation Resistance | 10M? |
| Nominal Attenuation | 300KHz |
| Cable Bend Radius | 75mm |
| Package Type | Poly Bag |
| Conductor Type | 30AWG (1/0.254BC) |
| Insulation | Foamed PE [0.65mm (White/Blue)] |
| Drain Wire | 30AWG (1/0.254BC) |
| Shield | Aluminum Foil |
| Braiding | 16/4/0.12AL |
| Conductor Type | 30AWG (1/0.254BC) |
| Insulation | HDPE 0.6mm |
| HDMI Cable Length | 3’ : 6’: 15’ |
| Connector Type | 19 Pin HDMI-A |
| Plating | Gold |
| Connector | PE (Inner Mould) / 45P PVC (Outer Mould) |
| Jacket | Black PVC 6.0mm |
| Approvals | ROHS/CE/UL |
| UNSPSC Code | 52161500 |
