Northern Video HDMISPL14 | Cable Assembly A/V, Hdmi, Hdmi Splitter 1-In 4-Out, Up To 4Kuhd@60Hz Edid Hdmi, 2.0/Hdcp2.2/Hdr10
Categorized under - Shop by Manufacturer/Northern Video | Audio and Visual | AV Cable and Connectors | AV Cable Assemblies

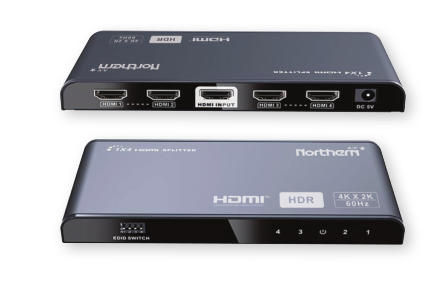

4K UHD/60Hz HDMI 2.0 Splitter - 4 Channel Plug & Play - Indoor Only
1x4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously. For use with STB, DVD, Media Player, Laptop, D-VHS and other HD-Player devices. It's compatible with HDMI 3D and 4Kx2K.
Northern Video - HDMISPL14 - Features
- Send 1 HDMI Source to 4 HDMI Diplays
- Up to 4K UHD @ 60Hz Resolution
- Supports HDMI 2.0 / HDCP 2.2
- Supports HDR-10
- Supports EDID
- Supports HDR-10
- Plug & Play Design
- 18 Gbps Transmission
- Includes Power Supply
- For Indoor Use Only
Specifications
Specifications
Northern Video - HDMISPL14 - Additional Information
- INSTALLATION REQUIREMENT:
- 1. Source: HDMI video source, such as DVD, PS3, STB, PC, Etc.
- 2. Display: HDTV, projector or other display with HDMI port
- 3. Cable: High standard HDMI cable (can support 4Kx2K)
- 1. CONNECTION
- 1)Connect the HDMI video source output port to the splitter input port by HDMI cable
- 2)Connect the splitter output port to HDMI display by HDMI cable
- 3)Set the TV input to right HDMI channel
- 4)Power on the splitter(Power indicator will light on)
- 2. OPERATION
- 1 ) Before output HDMI signal, the splitter will read EDID information of connected TVs and send it back to HDMI source part to let it determine the output mode
- 2 ) Indicator led shows the working status

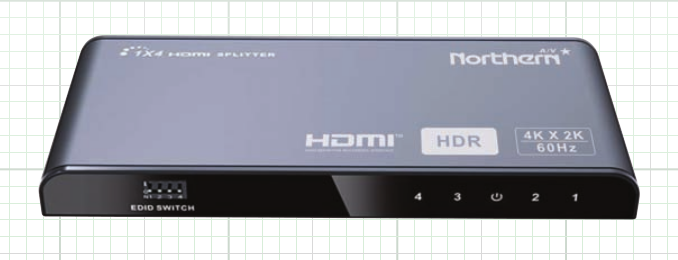

- 3 ) The splitter has 16 built-in EDID options that can be selected by 4 dip switch codes as shown in the following chart.
Northern Video - HDMISPL14 - Included Accessories
- 5 Volt DC / 2AMP Power Supply
- User Manual
Northern Video - HDMISPL14 - Specifications

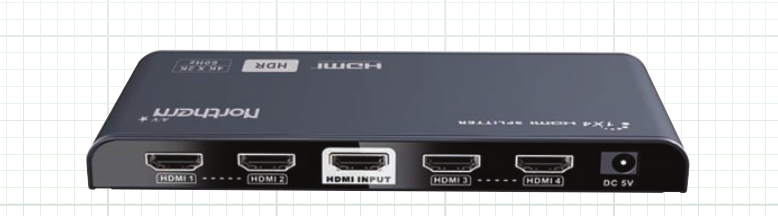

| Input Ports | HDMI × 1 (Type A, 19 pin, Female) |
|---|---|
| Output Ports | HDMI × 4 (Type A, 19 pin, Female) |
| Input / Output Cable Length | ?5M (AWG26 HDMI Cable, Supports HDMI 2.0) |
| Video Support | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz, 4K×2K@24/25/30/60Hz |
| Audio Support | Supports Standard Audio,DSD (Direct Stream Digital) & HD (HBR) Audio |
| HDMI Version | Supports HDMI 2.0, HDMI 1.4 |
| HDCP Version | Supports HDCP 2.2, HDCP 1.4 |
| HDR Version | Supports HDR-10 |
| Video Format | Supports 12 bit Full HD Video,3D Video & 4K&2K 30/60Hz Ultra HD Video |
| Maximum Transmission Rate | 18Gpbs |
| TMDS Signal | 0.5 ?1.5Vp-p (TMDS) |
| DDC Signal | 5Vp-p (TTL) |
| EDID DIP Switch | Yes |
| Housing | Aluminum - Black |
| Dimensions (L ×W × H) | 158 × 80 × 17mm (6.2" x 3.2" x 0.7") |
| Weight | 200g (0.45lb) |
| Power Input | 5 Volt DC |
| Power Requirement | <8W |
| Operating Temperaure | 0 ~ 60°C (32° ~ 140°F) |
| Weatherproof Rating | Indoor Only |
| Certifications | FCC, CE, RoHS |
| UNSPSC Code | 52161500 |
