Brand: Northern Video
|
SKU:
9955178
Northern Video N2HVR4KIT4C | N2 Series 4Ch Hd Analog Kit, With 4Ch 2Tb Dvr And 4X 2.8Mm, 1080P Eyeball Camera
Regular price
$191.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video N2HVR4KIT4C | N2 Series 4Ch Hd Analog Kit, With 4Ch ...
Regular price
$191.33
Unit price
Brand: Northern Video
|
SKU:
9955178
Regular price
$191.33
Unit price
Shipping calculated at checkout.
Description
Description
Northern Video N2HVR4KIT4C | N2 Series 4Ch Hd Analog Kit, With 4Ch 2Tb Dvr And 4X 2.8Mm, 1080P Eyeball Camera
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Video Accessories
4 Channel N2HVR Kit

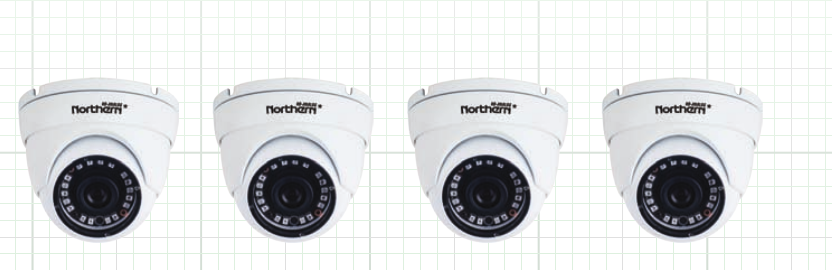

4-Channel N2HVR w/ 2TB Storage 4 x 1080p 2.8mm EyeballCameras w/ 60’ IR
Northern Video - N2HVR4KIT4C - Features
- Up to 1080p Analog Recording @ 15FPS
- 2 Terabyte Included Storage
- H.265 Recording Compression
- NorthernView Mobile App for iPhone, iPad & Android
- Built-In Motion Detection
- Built-In Privacy Mask
- 4 Channel Synchronous Playback
- Free CMS Software Included
- Supports P2P Operation
- Included Mouse for Control
- Dual USBs for Copying Video/Mouse Control
- Simultaneous HDMI & VGA Outputs
- 1 Channel Audio Input/Output
- UTC Control of Cameras OSD
Specifications
Specifications
Northern Video - N2HVR4KIT4C - Additional Information
- Full HD 1080p Resolution
- Digital Wide Dynamic Range
- True Day/Night Mechanical IR Cut Filter
- 2.8mm Fixed Focal IR Lens
- UTC & Cable Controllable OSD
- 3D Digital Noise Reduction
- 12 Volt DC Power
- 18 IR LED’s / 60’ IR Range
- 3-Axis Wall or Ceiling Mountable
- IP66 Weatherproof
Northern Video - N2HVR4KIT4C - Specifications
| Video Compression | H.265+, H.265, H.264+, H.264 |
|---|---|
| Analog Video Input | 4-ChannelBNC Interface (1.0Vp-p, 75?) |
| TVI/CVI/AHD/Formats | 5MP / 4MP / 3MP / 1080p / 720p |
| 960H Format | PAL / NTSC |
| IP Channels (1080p Max) | 4+2 |
| Audio Compression | G.711A |
| Audio Input | 1-Ch. RCA Input |
| BNC Output | 1x CVBS 640x480 Max |
| HDMI Output | 1x HDMI 3840x2160, 1920x1080, 1440x900, 1280x1024 |
| VGA Output | 1x VGA 1920x1080, 1280x1024, 1280x720 |
| Frame Rate | Main Stream: 10FPS @ 5MP Lite,7FPS @ 4MP, 15 FPS @ 1080p/720pSub Stream: 15FPS @ 704x480, 640x360, 480x270, 352x288 |
| Record Resolution | 960x576(960H), 1280x720(720p), 1280x1440(4MP-Lite), 1920x1080(1080p), 1280x1920(5MP-Lite), 2560x1440(4MP) |
| Audio Output | 1-Channel RCA Output |
| Audio Bit Rate | 128kbps |
| Dual Stream | Yes - Supports |
| Stream Type | Video / (Audio Recording Stream Enabled via Record Setup) |
| Synchronous Playback | 4 Channe |
| Multi Screen Viewing | 1, 4, 6 |
| Remote Connections | Up to 4 Simultaneous Connections |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP |
| SATA | 1 x SATA |
| Capacity | Up to 8TB |
| Network Interface | 1 RJ-45 port (10/100Mbps) |
| USB Interface | USB x 2 (Front & Rear) |
| Mobile App | NorthernView Mobile App for iPhone, iPad & Android |
| Power Supply | DC 12Volt, 2Amp |
| Consumption (no drives) | Max 5W |
| Operating Temp | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Operating Humidity | Less than 90% RH |
| Dimensions (L x W x H) | 2.1"x 9.6"x 1.7" (55 x 244 x 44mm) |
| Certifications | CE / FCC |
| Chassis | Non Rack Mount |
| Weight (no drives) | 1.9lb, 900g |
| HDIEIR60 Camera SpecificationsImage Sensor | 1/2.8" CMOS Sensor |
| Total Pixels | 1984 x 1225 |
| Active Pixels | 1920 x 1080 |
| Resolution | 1920 x 1080 (1080p) |
| Scanning System | Progressive Scan |
| OSD (On Screen Display) | Dual OSD Access: Cable OSD Controlled / UTC Controlled (coaxial control) |
| True WDR (Wide Dynamic Range) | Yes- 120dB |
| DNR (Digital Noise Reduction) | 3D DNR - Auto, Manual (0~30), Of |
| Video Output | TVI, CVI, AHD & 960H (Selectable via OSD Cable) |
| Lens Type / Viewing Angle | 2.8mm IR Lens - H: 108.9° V: 58.8° |
| Shutter Speed | Auto, Manual 1/25 ~ 1/10,000 |
| IR Cut Filter | Built in Mechanical |
| Minimum Illumination | Color 0.001 Lux, B/W 0.0 Lux, IR LED ON |
| S/N Ratio | More than 50dB |
| Automatic Gain Control | Auto, Manual 0 ~16 Adjustable |
| Sync System | Internal |
| Gamma Characteristics | y = 0.45 typ |
| White Balance | ATW, MWB - R & B Gain 0~32 Adjustable |
| Back Light Compensation | Globe / BLC / 1~8 Adjustable |
| Day/Night | EXT / Auto / Color / B/W |
| Languages | English, French, Spanish, German, Italian (see OSD Menu for more) |
| Brightness | 0 ~30 Adjustable |
| Power Input | 12VDC Only |
| Power Requirement | 120mA /250 mA IR LED ON |
| Overall Camera Dimensions | 4.6" x 4.1" (?118 × 103mm) |
| Housing / Color | Aluminum / White |
| Weight | 1.2lb / 550g |
| Operating Temperature | -14°F ~ 131°F |
| Weatherproof Rating | IP66 |
| Type | Camera Kit |
| UNSPSC Code | 46171600 |
