Brand: Northern Video
|
SKU:
9955177
Northern Video N2NVR8KIT6C | N2 Series 8Ch Ip Kit With 8Ch 2Tb, Nvr And 6X 4Mp Eyeball Cameras
Regular price
$845.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video N2NVR8KIT6C | N2 Series 8Ch Ip Kit With 8Ch 2Tb, Nvr...
Regular price
$845.43
Unit price
Brand: Northern Video
|
SKU:
9955177
Regular price
$845.43
Unit price
Shipping calculated at checkout.
Description
Description
Northern Video N2NVR8KIT6C | N2 Series 8Ch Ip Kit With 8Ch 2Tb, Nvr And 6X 4Mp Eyeball Cameras
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Video Accessories

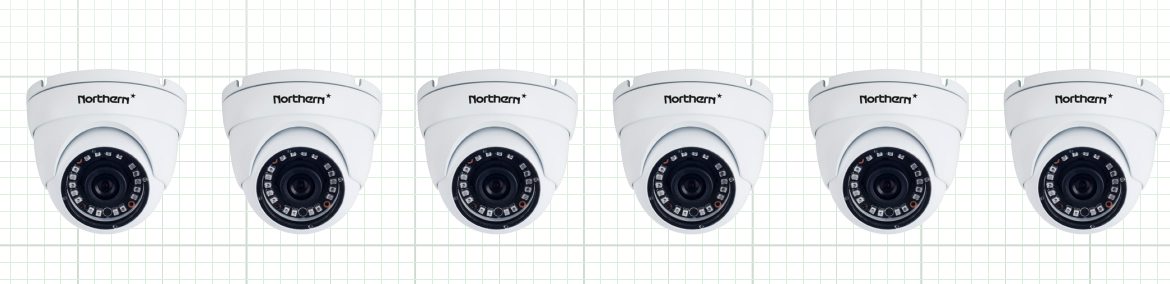

8 Channel IP Kit INCLUDES: 8-Channel N2NVR w/ 2TB Storage 6x 4MP IP, 2.8mm Eyeball Cameras with 75’ IR
Northern Video - N2NVR8KIT6C - Features
- Real Time 30FPS Recording @ 1080p
- 2 Terabyte Included Storage
- Up to 8MP Recording
- H.265 Recording Compression
- NorthernView Mobile App for iPhone, iPad & Android
- Supports P2P Operation
- Free CMS Software
- Integrated 40W POE Switch
- Included Mouse for NVR Control
- Dual USB for Mouse Control & Copying Video
- Simultaneous HDMI & VGA Outputs
- Up to 4 Channel Synchronous Playback
- Built-In Audio & Alarm
- Supports 2-Way Audio
- Up to 25FPS, 4MP Max Resolution
- H.265 Recording Compression
- Digital Wide Dynamic Range
- Fixed Focal 2.8mm IR Lens
- 18 IR LED’s – 75’ IR Range
- Mechanical IR Cut Filter,Dual Stream Capability,POE- Power over Ethernet,IP66 Weatherproof
Specifications
Specifications
Northern Video - N2NVR8KIT6C - Additional Information
- -15°C ~ 55°C (5°F ~ 131°F ), Less than 90% RH
- Power Requirement
- 12VDC / POE (IEEE 802.3af)
- Power Consumption & Current
- 2W (IR LED OFF), 4W Max (IR LED ON)
- Weatherproof Rating
- IP66
- Housing Material / Color
- Aluminum / White
- Overall Camera Dimensions
- ?3.7" x 3.3" (?94 x 84mm)
- Weight
- 0.77lb / 350g
- Certifications
- CE / FCC
Northern Video - N2NVR8KIT6C - Included Accessories
- Operating Conditions
Northern Video - N2NVR8KIT6C - Specifications
| IP Video Input | 8-Channel |
|---|---|
| Two-Way Audio Input | 3.5mm Audio Jack |
| NTSC / PAL | Yes |
| Additional Plug & Play Cameras | "N2 Series Only" N2IP4B, N2IP4D, N2IP4D4MM, N2IP4T, N2IP4W, N2IP4AFD, N2IP4AFB, N2IPPTZ30X, N2IPKITCAM |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Connection | Up to 9 Users |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 |
| Frame Rate | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 @ 30fps |
| HDMI Output Resolution | 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 |
| VGA Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Audio Output | 3.5mm Audio Jack - For Two-Way Audio Only |
| Live / Playback Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 |
| Playback Capability | 1Ch-8MP / 4Ch-1080P@30fps / 8Ch-D1@30fps |
| Compression | H.265 , H.265+, H.264, H.264+ |
| Record Mode Types | Manual, Schedule (Regular, Continuous), Motion Detection, Alarm In |
| Bit Rate (Per Channel) | 100Kbps ~ 6000Kbps |
| Pre & Post Recording | Auto Pre Recording based on # of Cameras Connected / Post Record (30 sec ~ 60 sec adjustable) |
| Recording Parameters | Independent for Each Channel (Resolution, Frame Rate, Bit Rate, etc.) |
| Zooming | Yes - Digital Zoom Available in Live View & Playback |
| Synchronous Playback | Up to 8Ch |
| Playback Controls | Play, Pause, Stop, Rewind, Fast Play, Slow |
| Searching | Time / Date, Alarm, Picture Grid, Event |
| SATA | 1x |
| Capacity | 2TB Installed |
| HDD Detection | Built-IN SMART Detection |
| Network Interface | 4Ch 100Mbps |
| USB Interface | 2x USB 2.0 |
| Alarm In/Out | 2022-01-08 00:00:00 |
| CMS Software | Included NorthernView N2 Series CMS |
| Network Interface | 8Ch 100Mbps |
| Maximum Power | 80W |
| Supported Standard | IEEE 802.3af |
| Power Supply | DC48V/1.25A |
| Consumption (no HDD) | < 5W |
| Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Operating Humidity | Less than 90% RH |
| Chassis | 1U Rack Mount |
| Dimensions | 372×310×46.5mm |
| Weight (no HDD) | 4.6lb / 2.1kg |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.05Lux @(F1.2,AGC ON) , B/W: 0Lux @(IR LED ON) |
| S/N Ratio | 55dB |
| IR LED Count / Range / Nanometer | 18 IR LED's / 75' Range / 850nM |
| Shutter Time | 1/5s – 1/20,000s |
| Lens (IR Corrective) | Fixed 2.8mm - Angle of View 100° - |
| Camera Bracket Adjustment | Pan: 0?~360?, Tilt: 0?~90?, Rotation: 0?~360? |
| Day & Night | Yes - True Day/Night with IR Filter - Auto Switch |
| DNR (Digital Noise Reduction) | 2DNR & 3DNR, Auto / Manual (0-100 Adjustable) |
| True Wide Dynamic Range (120dB) | On / Off (0-100 Adjustable) |
| BLC (Backlight Compensation) | On / Off (0-100 Adjustable) |
| Smart Analytic Features | Virtual Fence, Advanced Motion Detection |
| Region of Interest | Yes |
| Video Compression | H.265, H.264, MJPEG (for both stream types) |
| Max. Resolution | 2560 x 1440 (4MP) |
| Mainstream Resolution | 2560x1440, 2304x1520, 1920x1080, 1280x720 @25 |
| Substream Resolution | 704x576, 640x360, 480x360, 352x288 @ 25FPS |
| Video Bitrate | Main: 128kbps ~ 6144kbps,Sub: 16kbps ~ 1536kbps |
| Protocols | IPv4, HTTP, HTTPS, TCP/UDP, RTSP, DHCP, NTP, RTCP/RTP, SMTP, DNS, UPnP, SNMP |
| General Function | Supports Mirror, Aisle Mode, Smart IR, Password Protection, Privacy Mask, Motion Detection |
| Client Software | NorthernView CMS, NorthernView Mobile App, NorthernView Tools |
| Web Browser | IE11, Chrome, Firefox |
| Communication Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Type | Camera Kit |
| UNSPSC Code | 46171600 |
