Brand: Northern Video
|
SKU:
958986
Northern Video VC5PAIRHD | Intrusion Detection Module, Pair Tvi,Cvi,Ahd,960H, Rj45 Balun? With 4 Bnc Pig
Regular price
$3.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern Video VC5PAIRHD | Intrusion Detection Module, Pair Tvi,Cvi...
Regular price
$3.61
Unit price
Description
Description
Northern Video VC5PAIRHD | Intrusion Detection Module, Pair Tvi,Cvi,Ahd,960H, Rj45 Balun? With 4 Bnc Pig
Categorized under - Shop by Manufacturer/Northern Video | Security | Intrusion Detection | Intrusion Modules

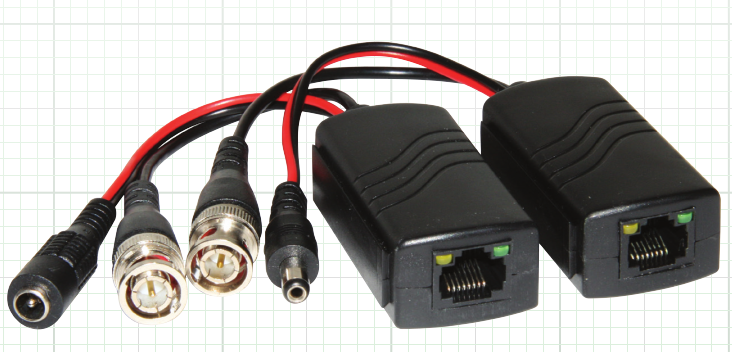

HD Video+Power Baluns for TVI, CVI, AHD & 960H Cameras BNC Male to RJ-45 Connector, 12VDC Male to 12VDC Female Power
Northern Video - VC5PAIRHD - Features
- Transmission: 300M (720p & 960H), 250M (1080p)
- Compatible with TVI, CVI, AHD & 960H Formats
- Compatible with TVI, CVI, AHD & 960H Formats
- 6" BNC Male to RJ-45 Connector
- DC Male & DC Female Power Connections
- Built-in ESD, EFT & Transient Voltgage Protection

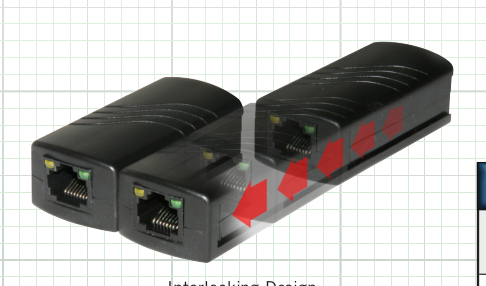

- Interlocking Design
Specifications
Specifications
Northern Video - VC5PAIRHD - Additional Information
- Requires Cables Using EIA/TIA
- 568A or 568B Standards
- DISTANCE / VOLTAGE REQUIREMENT
- 50M
- 13.5V : 15.5V :17.0V
- 100M
- 15.5V: 18.5V: 22.0V
- 150M
- 17.0V :22.0V :27.0V
- 300M
- 22.0V: 30.0V: 42.0V
Northern Video - VC5PAIRHD - Specifications
| Connections | Video RJ-45 to BNC MalePower 12VDC Male to 12VDC Female |
|---|---|
| Video Signal | 1Vp-p, 75 Ohm |
| Bandwidth | 50Hz ~ 60MHz (-3dB) |
| Transmission Distance | Video: 300M (720p & 960H) 250M (1080p) |
| ESD Protection | 30KV (Air), 15KV (Contact); IEC 61000-4-2 Compliant |
| Cable Type | For Use with CAT5e/CAT6 UTP Cable |
| Power Type | Supports 12VDC & 24VAC Power |
| EFT Protection | 40A (5/50ns); IEC 61000-4-4 Compliant |
| Lightning Protection | 2A (8/20?s); IEC 61000-4-5 Compliant |
| Surge Protection Attack Time | <1nS |
| Dimensions | 81mm x 20mm x 30mm (body) w/ 6" BNC & Power Pigtails |
| Weight | 0.2lb |
| UNSPSC Code | 46171600 |
