Brand: Nvent Caddy
|
SKU:
9890686

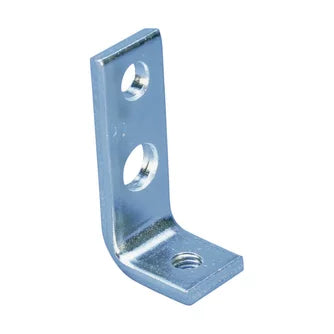

Nvent Caddy 3280037EG | 328 Threaded Steel Side Beam Attachment, EG, 3/8" Rod
Regular price
$14.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Nvent Caddy 3280037EG | 328 Threaded Steel Side Beam Attachment, EG...
Regular price
$14.15
Unit price
Description
Description
Nvent Caddy 3280037EG | 328 Threaded Steel Side Beam Attachment, EG, 3/8" Rod
Nvent Caddy - 3280037EG - Features
- Fastens to wall or the side of a joist to support hanger rod
- Pre-threaded
- Conforms with Federal Specification WW-H-171 (Type 35), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 34)
- Refer to Static Load 1 when used with lag screw. Refer to Static Load 2 with bolt to steel.
- Follow fastener manufacturer’s recommended shear and pull-out strength when fastening to the structure. Fastener not included.
- Install in accordance with applicable code.
Specifications
Specifications
Nvent Caddy - 3280037EG - Specifications
| Brand Name | Nvent Caddy |
|---|---|
| Item Description | 328 Threaded Steel Side Beam Attachment, EG, 3/8" Rod |
| Manufacturer Part Nmuber | 3280037EG |
| Material | Steel |
| Finish | Electrogalvanized |
| Rod Size | 3/8 |
| Hole Size 1 | 17/32" |
| Hole Size 2 | 13/32" |
| A | 2 9/16" |
| B | 1" |
| C | 1 1/4" |
| Static Load 1 | 560 lb |
| Static Load 2 | 620 lb |
