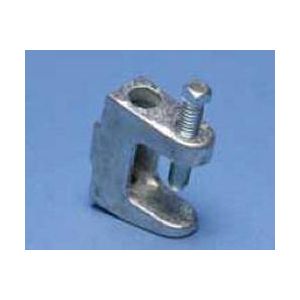

Nvent Caddy BC260025EG | BC26 Universal Beam Clamp With Tapped Hole, 1/4" Rod, 13/16" Max Flange, 1/4" Hole, Threaded

Nvent Caddy - BC260025EG - Features

• One thru-hole for easier installation of threaded rod
• Setscrew must be tightened and torqued onto the sloped side of the I-beam.
• Recognizing that torque wrenches are generally not used or available on many job sites, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added.
• Beam Clamps, Rod: Clamp Type - Rod to Beam Clamp
• Installation - Set-Screw
• Rod Holes - Vertical, Tapped
• Rod Size - 1/4-20
• Material: Steel
• Finish: Electro Zinc Plated
• Hole Size ("): 1/4"
• Hole Type: Threaded
• Rod Size ("): 1/4"
• Screw Diameter ("): 1/4"
• Static Load 1 (lb): 100 lb
• Static Load 2 (lb): 250 lb
• Torque (ft-lb): 4 ft
