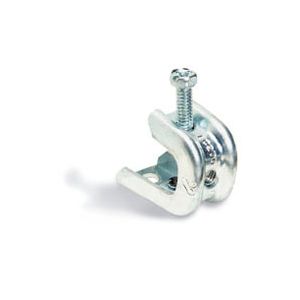

Nvent Caddy BC400 | BC200/BC400 Beam Clamp, 3/8" Rod, 0.75" Max Flange
Threaded hole on back and bottom.
Threaded hole on back and bottom.
Nvent Caddy - BC400 - Features
- Supports threaded rod, threaded bridle rings and boxes
- Available riveted to conduit clips
- Eliminates offset bending conduit
- Threaded hole on back and bottom
- Ideal for electrical, mechanical, and HVAC applications
- Beam Clamps, Rod: Clamp Type - Rod to Beam Clamp
- Installation - Set-Screw
- Rod Holes - Vert & Horiz, Tapped
- Rod Size - 3/8-16
- Finish: Electro Zinc Plated
- Flange Thickness (") - : 3/4"
- Rod Size ("): 3/8"
- Static Load (lb): 200 lb
- Torque (ft-lb): 20 in lb
Specifications
Specifications
Nvent Caddy - BC400 - Specifications
| Type | CLAMPS |
|---|---|
| UNSPSC Code | 31162606 |
| Country of Origin | United States - Subject to change |
| Clamp Type | Rod to Beam Clamp |
| Installation | Set-Screw |
| Rod Holes | Vert & Horiz |
| Jaw Opening | 3/4 in. |
| Flange Width | All |
| Load | 200 lb. |
| Material | Steel |
