Nvent Caddy CAT300CMLN | Cat CM U-Hook, 12"
Regular price
$153.85
Unit price
Brand: Nvent Caddy
|
SKU:
256205
Regular price
$153.85
Unit price
Description
Description

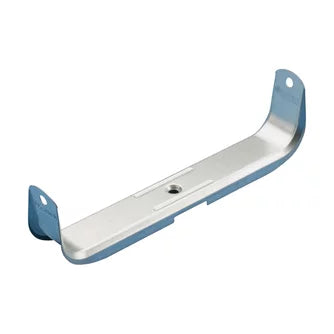

Nvent Caddy CAT300CMLN | Cat CM U-Hook, 12"
Nvent Caddy - CAT300CMLN - Features
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic

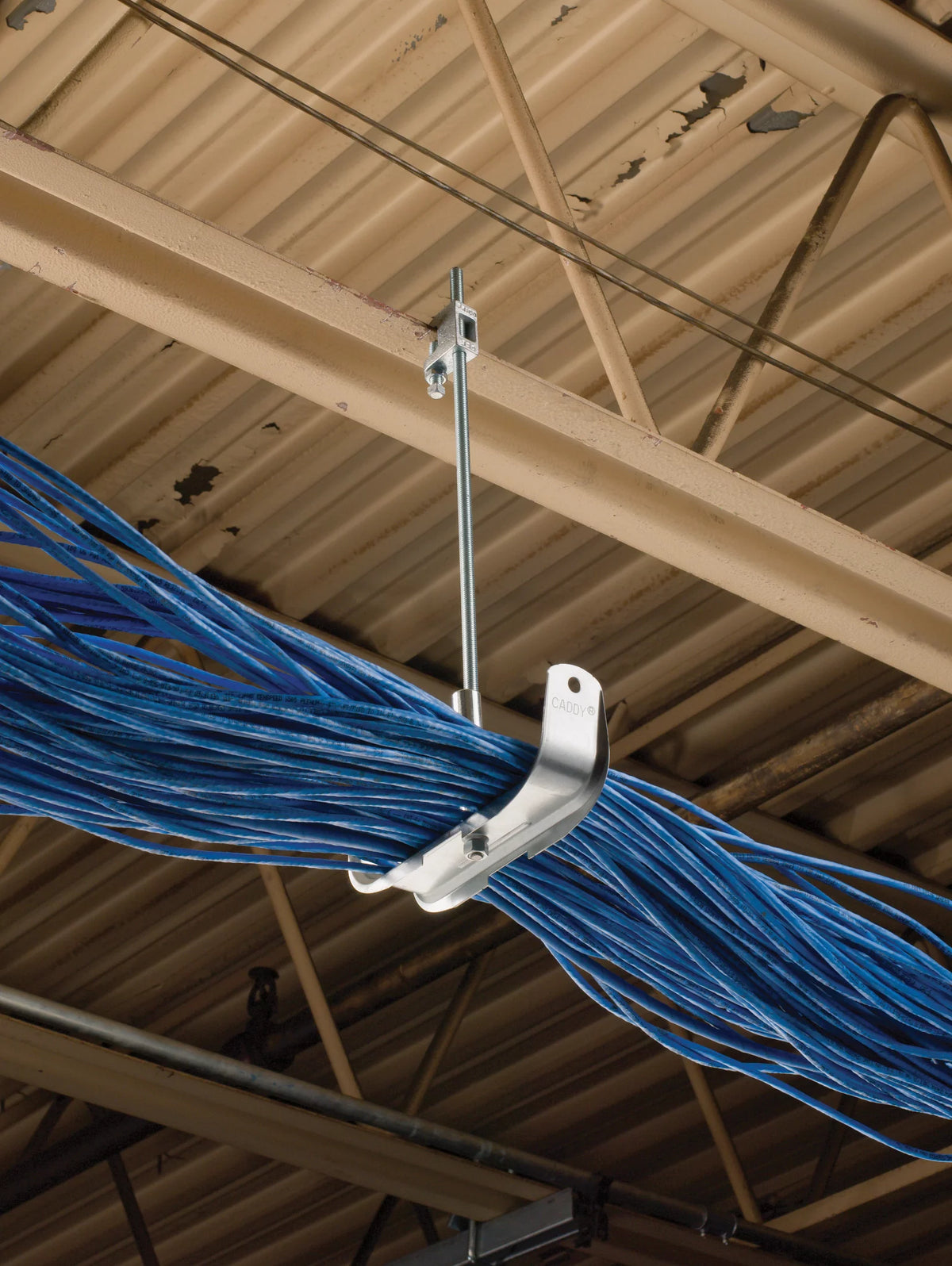

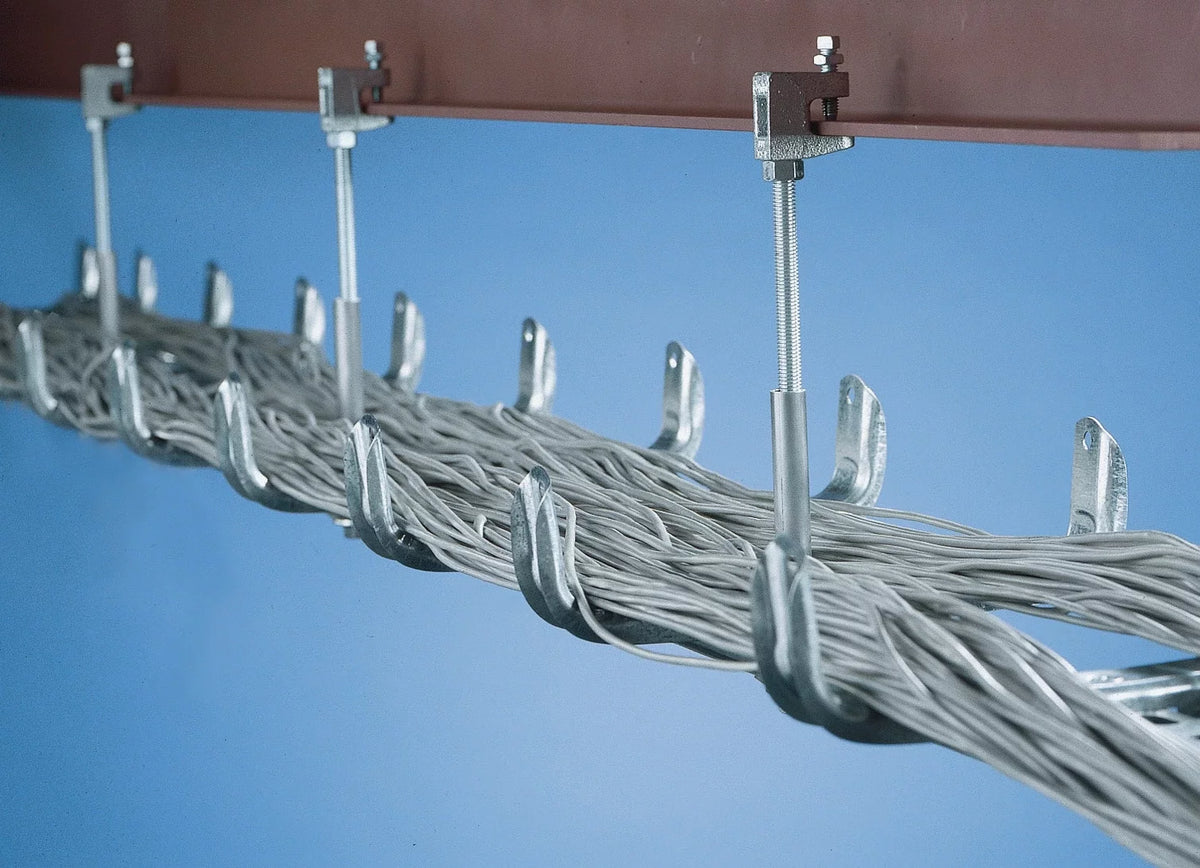

- System offers a convenient pathway for wires and cables
- Specially designed U-Hooks have large-diameter, rounded support surfaces

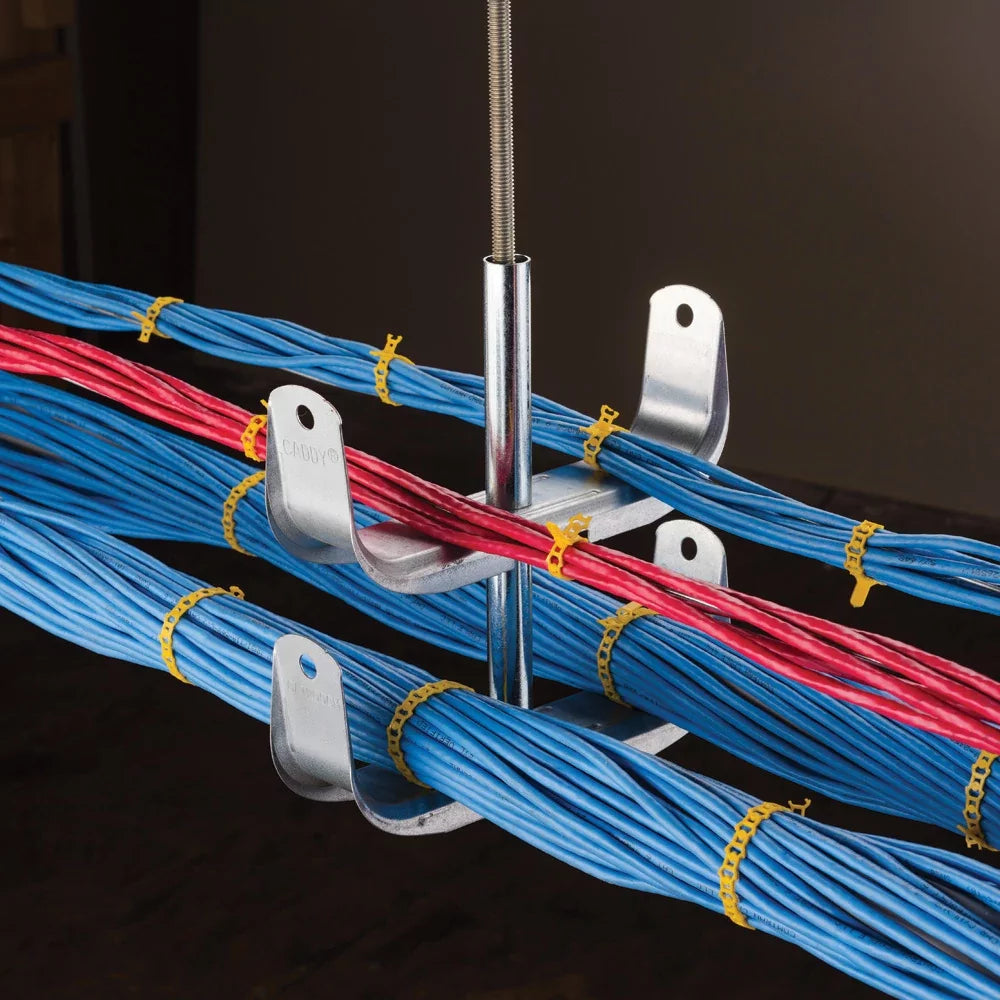

- U-Hooks can be mounted vertically along the same drop rod to create a tree configuration
- Cantilever mounting allows U-Hooks to be mounted to walls and columns with brackets
- Compliant with NEC® and ANSI®/TIA structured cabling systems standards
Specifications
Specifications
Nvent Caddy - CAT300CMLN - Specifications
| Brand Name | Nvent Caddy |
|---|---|
| Item Description | Cat CM U-Hook, 12" |
| Manufacturer Part Nmuber | CAT300CMLN |
| Material | Steel |
| Finish | Electrogalvanized |
| Cable Capacity, Cat 5e | 700 |
| Cable Capacity, Cat 6 | 525 |
| Cable Capacity, Cat 6A | 325 |
| A | 12" |
| Area | 32"² |
| Hole Size | 3/8" |
| Static Load | 100 lb |
| UPC | 782856464907 |
| EAN | 0782856464907 |
Nvent Caddy - CAT300CMLN - Diagrams
| Diagram 1 | Click to View |
|---|
