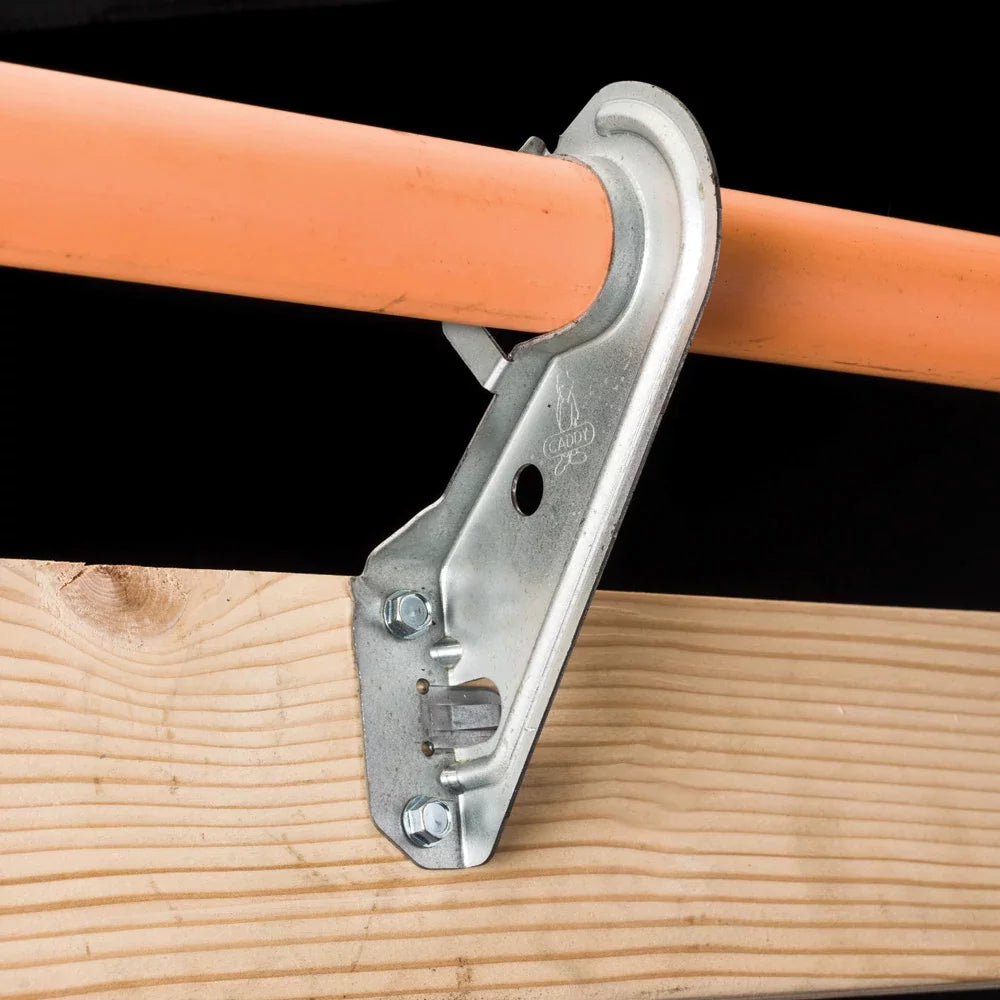

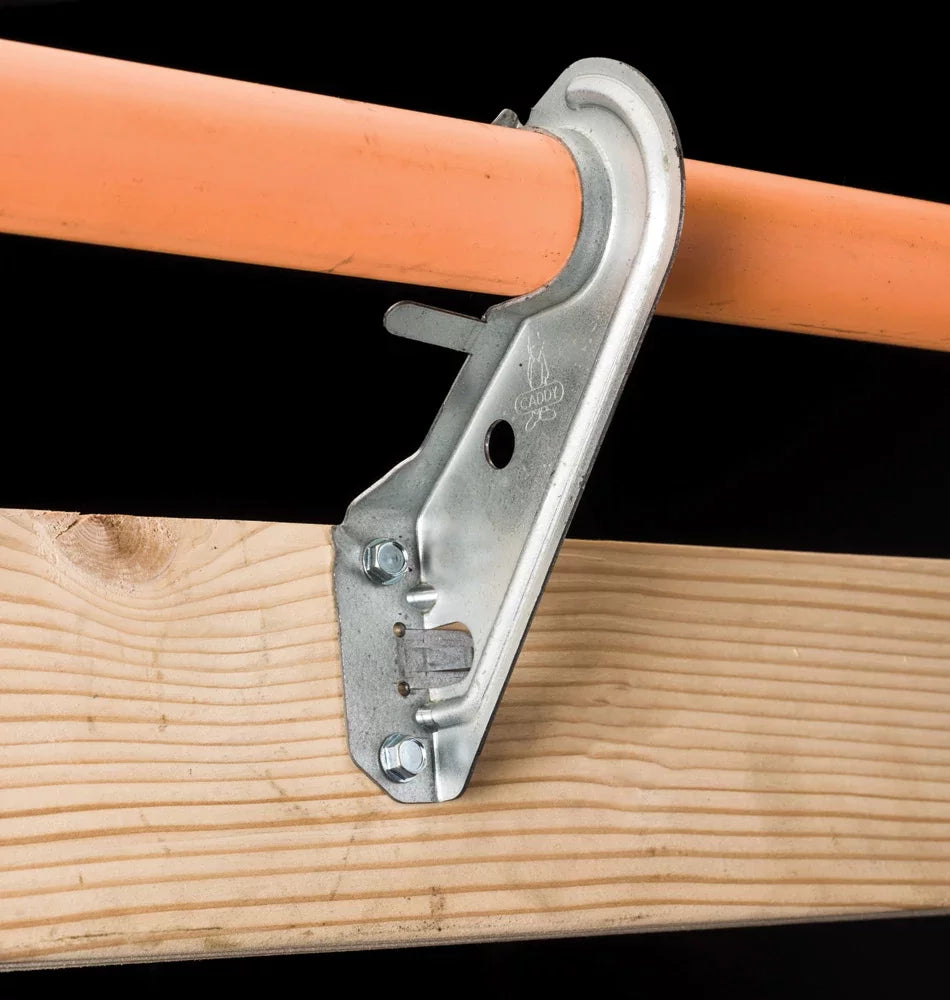

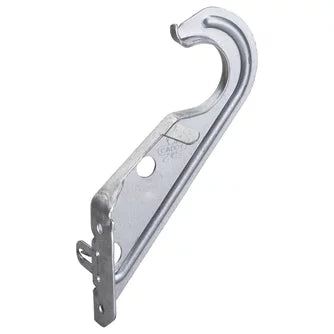

Nvent Caddy DOSR075 | DOSR Double Offset Surge Restraint for CPVC Pipe, 3/4" Pipe
Nvent Caddy - DOSR075 - Features
- Provides quick and easy snap-in installation of pipe
- Built-in nail tab allows for fast, temporary mounting to any surface
- Rated for use with CPVC fire sprinkler pipe
- Positions pipe 1-1/2" (38 mm) out and up from the mounting surface eliminating the need for wooden spacer blocks
- Meets the UL® 203 stringent upward thrust requirement
- UL® Listed as both a hanger and restraint in the double offset orientation
- Complies with static load requirements of NFPA® 13
- Includes mounting screws
- Can be used with 3TW backing nut on composite wood joist installations
Specifications
Specifications
Nvent Caddy - DOSR075 - Specifications
| Brand Name | Nvent Caddy |
|---|---|
| Item Description | DOSR Double Offset Surge Restraint for CPVC Pipe, 3/4" Pipe |
| Manufacturer Part Nmuber | DOSR075 |
| Material | Steel |
| Finish | Pregalvanized |
| Pipe Size | 3/4" |
| Hole Size | 0.2" |
| Height | 5.2" |
| Width | 1" |
| Depth | 3 1/2" |
| A | 1 1/2" |
| Thickness | 18 ga |
| Hanger Spacing | 6' max |
Nvent Caddy - DOSR075 - Diagrams
| Diagram 1 | Click to View |
|---|---|
| Diagram 2 | Click to View |
