Brand: Nvent Caddy | SKU: 9892091

Nvent Caddy PHK | Rooftop Pyramid H-Frame Kit, Foam

$384.96

Description

Foam or rubber bottom offers low abrasion interface for better roof membrane protection
Compatible with roof surfaces including single ply, bituminous, metal and spray foam
Provides superior load distribution, even with varying rooftop surfaces

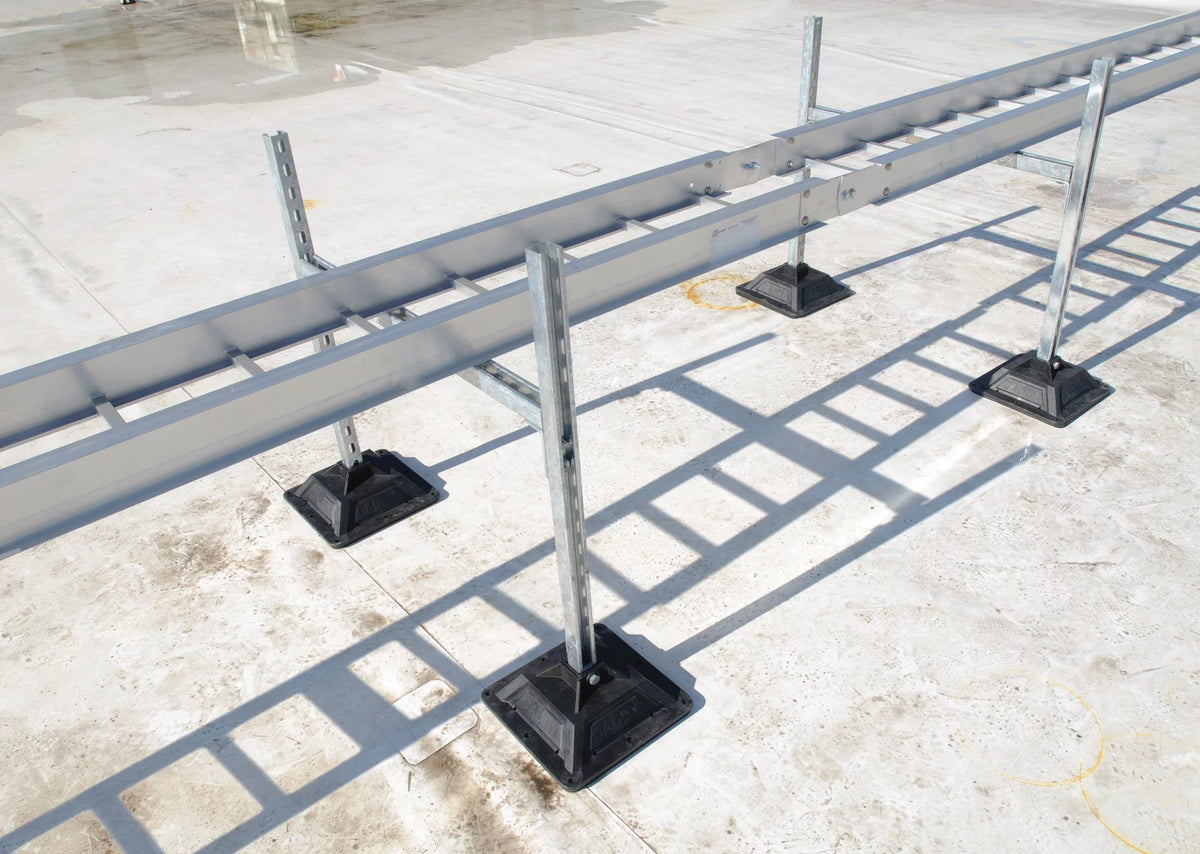

Rubber rooftop interface ideal for solar panel array installations

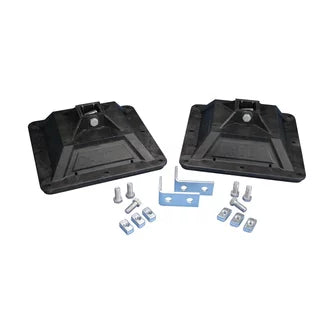

Kit includes 2 post bases with pre-installed mounting hardware, 6 bolts, 6 strut nuts, and 2 L-brackets to complete H-frame
Hot-dip galvanized and UV stabilized for long lasting performance
Accepts standard strut channels
Static load represents 750 lb (3,335 N) per post base. The end user must select and evaluate the strut framing to ensure the assembled H-frame can properly support the applied load.

Brand Name	Nvent Caddy
Item Description	Rooftop Pyramid H-Frame Kit, Foam
Manufacturer Part Nmuber	PHK
Material	Polypropylene; Polyethylene
Temperature	?30 to 130 °F
Static Load Safety Factor	3:1
Rooftop Interface	Foam
Strut Type	A (1 5/8" x 1 5/8")
Height	4.6"
Length	12 3/8"
Width	12 3/8"
Surface Area	287"²
