Nvent Caddy PRF3 | Pyramid RL Fixed Roller Support, 3" Max Pipe
Regular price
$84.48
Unit price
Brand: Nvent Caddy
|
SKU:
9892104
Regular price
$84.48
Unit price
Description
Description

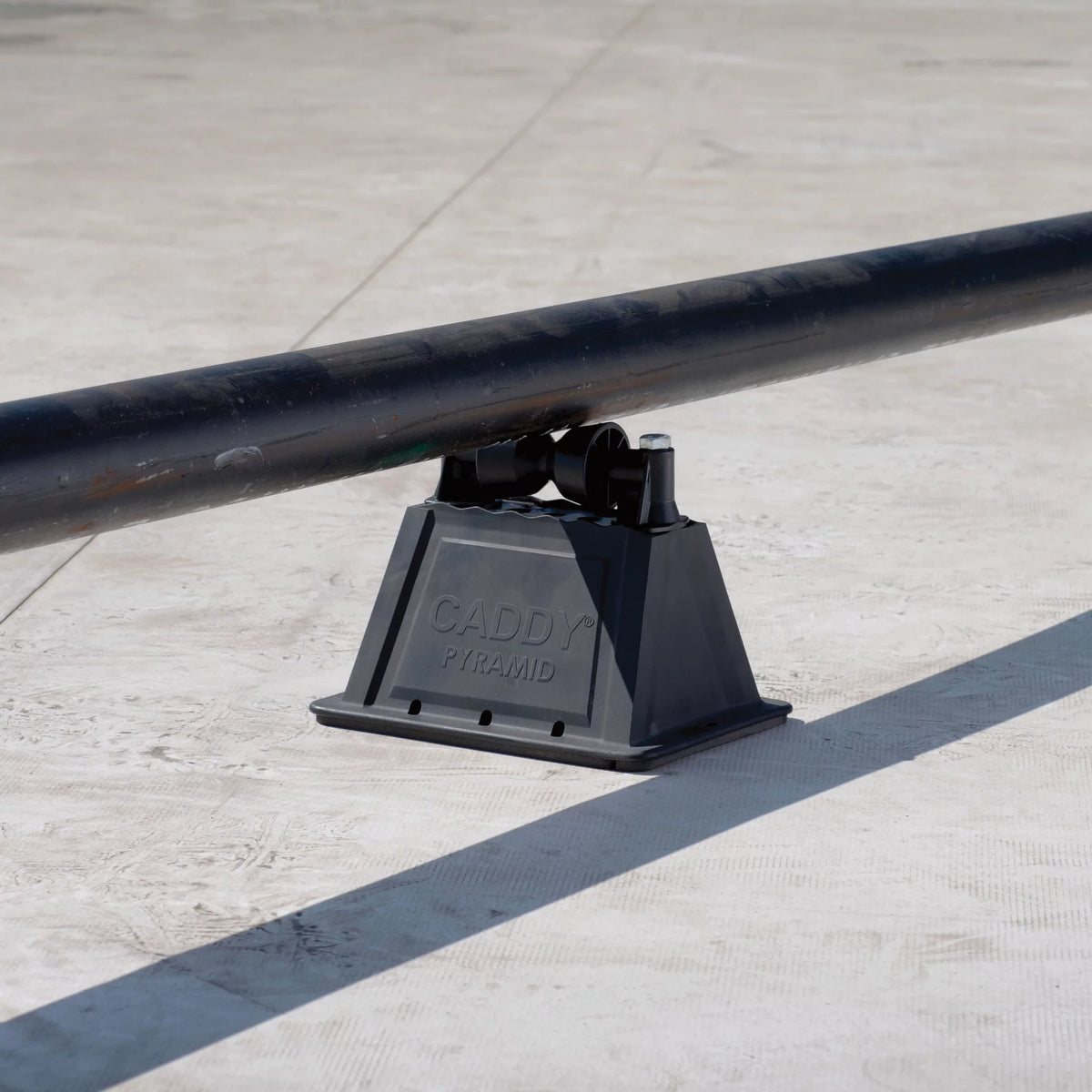

Nvent Caddy PRF3 | Pyramid RL Fixed Roller Support, 3" Max Pipe
Nvent Caddy - PRF3 - Features

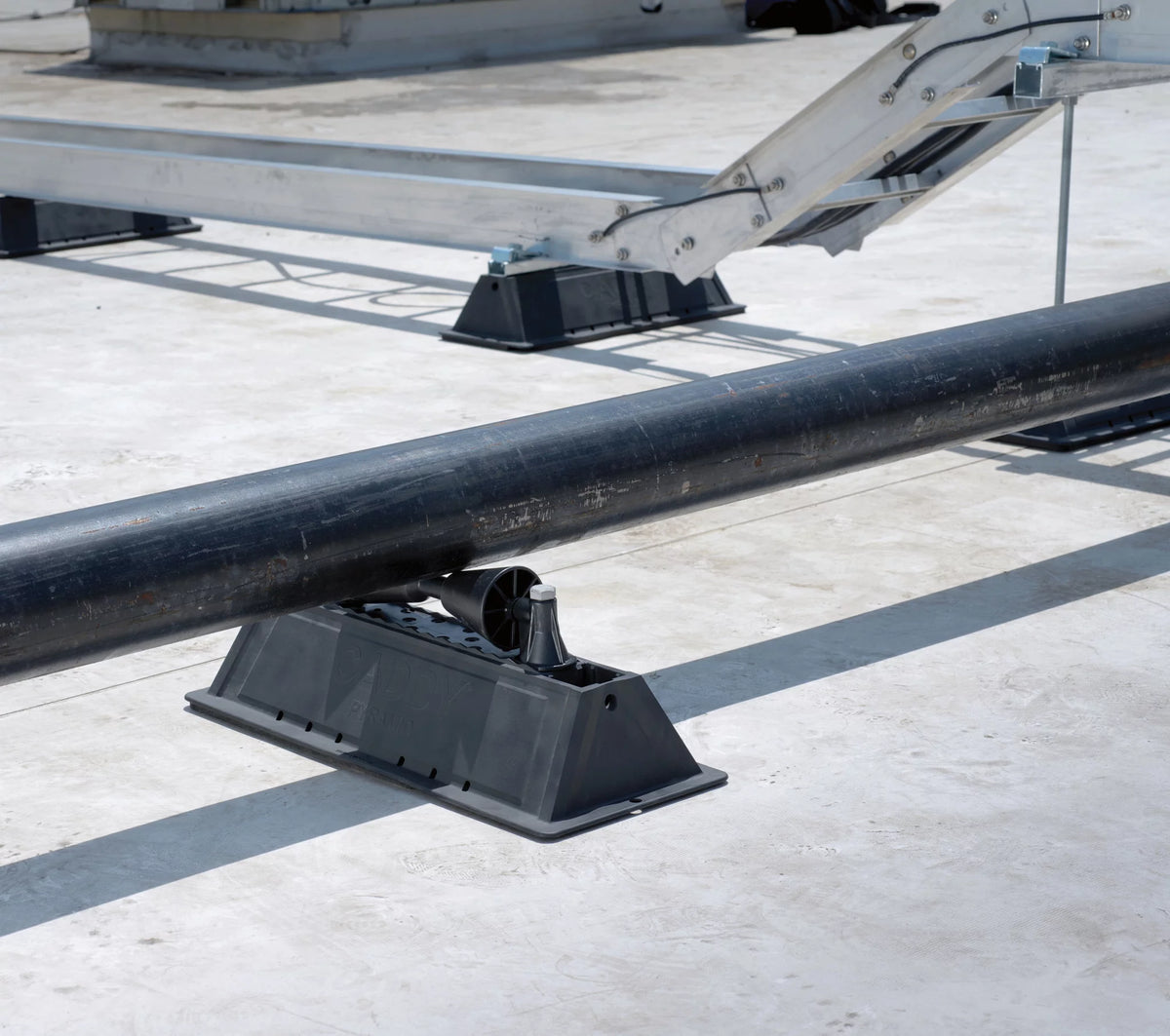

- Roller-based support designed specifically for rooftop applications
- Roller capability allows longitudinal movement of pipe, resulting from thermal expansion or contraction
- Polymeric rollers ensure corrosion free rotation
- Foam bottom offers low abrasion interface for better roof membrane protection
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Ready to use out of the box, saving installation time and labor
- Hot-dip galvanized and UV stabilized for long lasting performance
Specifications
Specifications
Nvent Caddy - PRF3 - Specifications
| Brand Name | Nvent Caddy |
|---|---|
| Item Description | Pyramid RL Fixed Roller Support, 3" Max Pipe |
| Manufacturer Part Nmuber | PRF3 |
| Material | Polyethylene; Polypropylene; Steel |
| Finish | Hot-Dip Galvanized |
| Temperature | ?50 to 150 °F |
| Static Load Safety Factor | 3:1 |
| Pipe Size | 3" max |
| Height | 6 1/4" |
| Length | 12 1/2" |
| Width | 8" |
Nvent Caddy - PRF3 - Diagrams
| Diagram 1 | Click to View |
|---|---|
| Diagram 2 | Click to View |
