Nvent Caddy PSB24A | Rooftop Pyramid ST Bridge Assembly, 24"
Regular price
$191.87
Unit price
Brand: Nvent Caddy
|
SKU:
9892111
Regular price
$191.87
Unit price
Description
Description

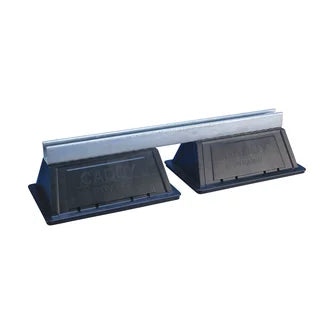

Nvent Caddy PSB24A | Rooftop Pyramid ST Bridge Assembly, 24"
Nvent Caddy - PSB24A - Features

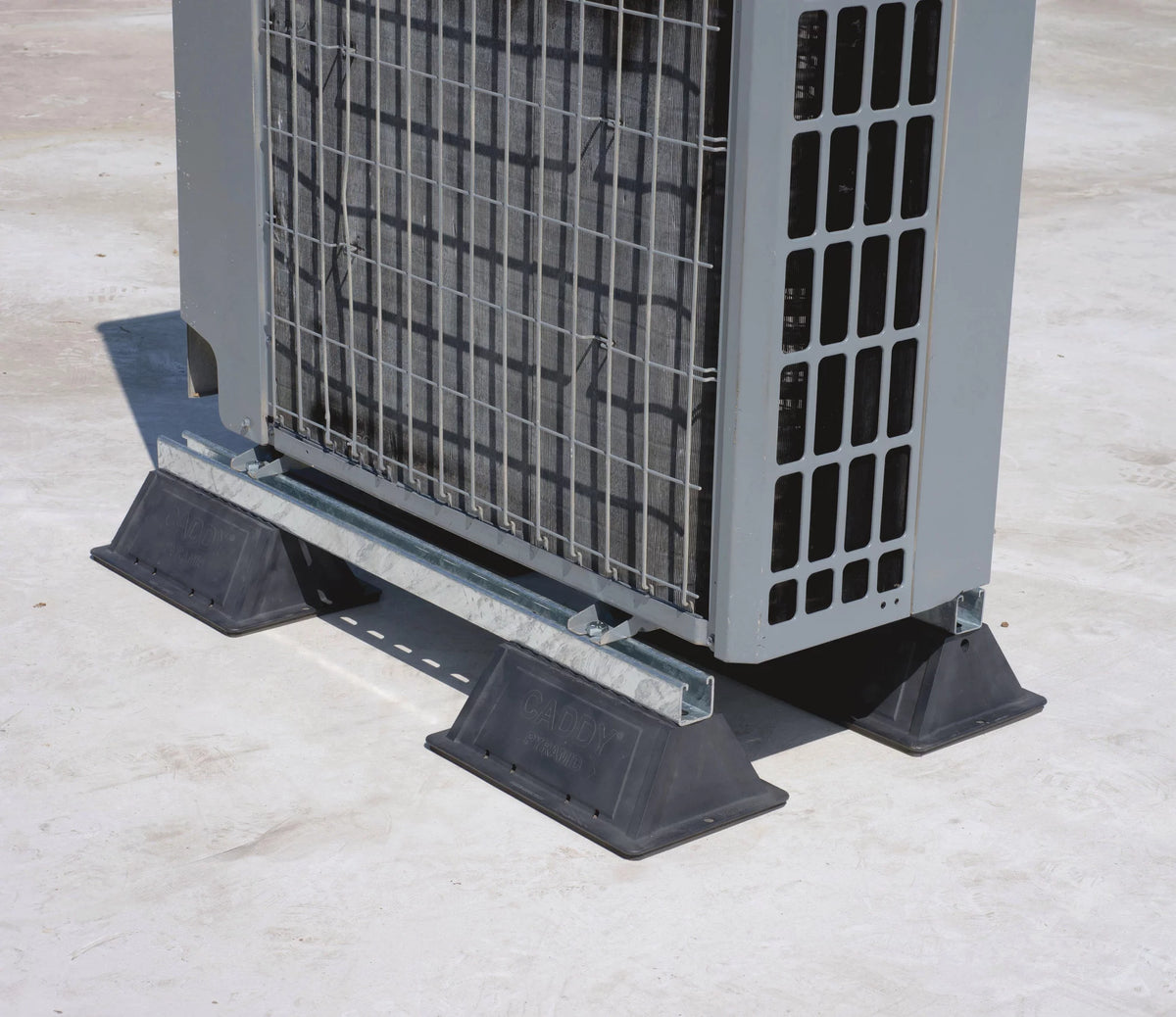

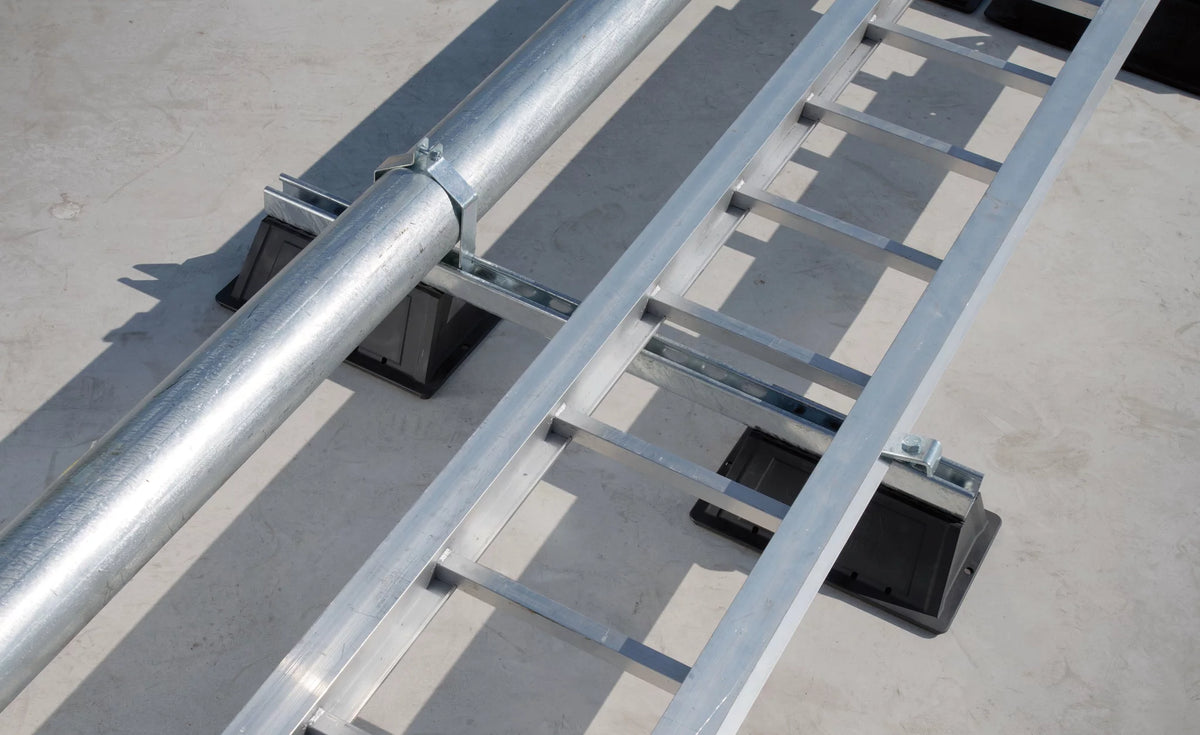

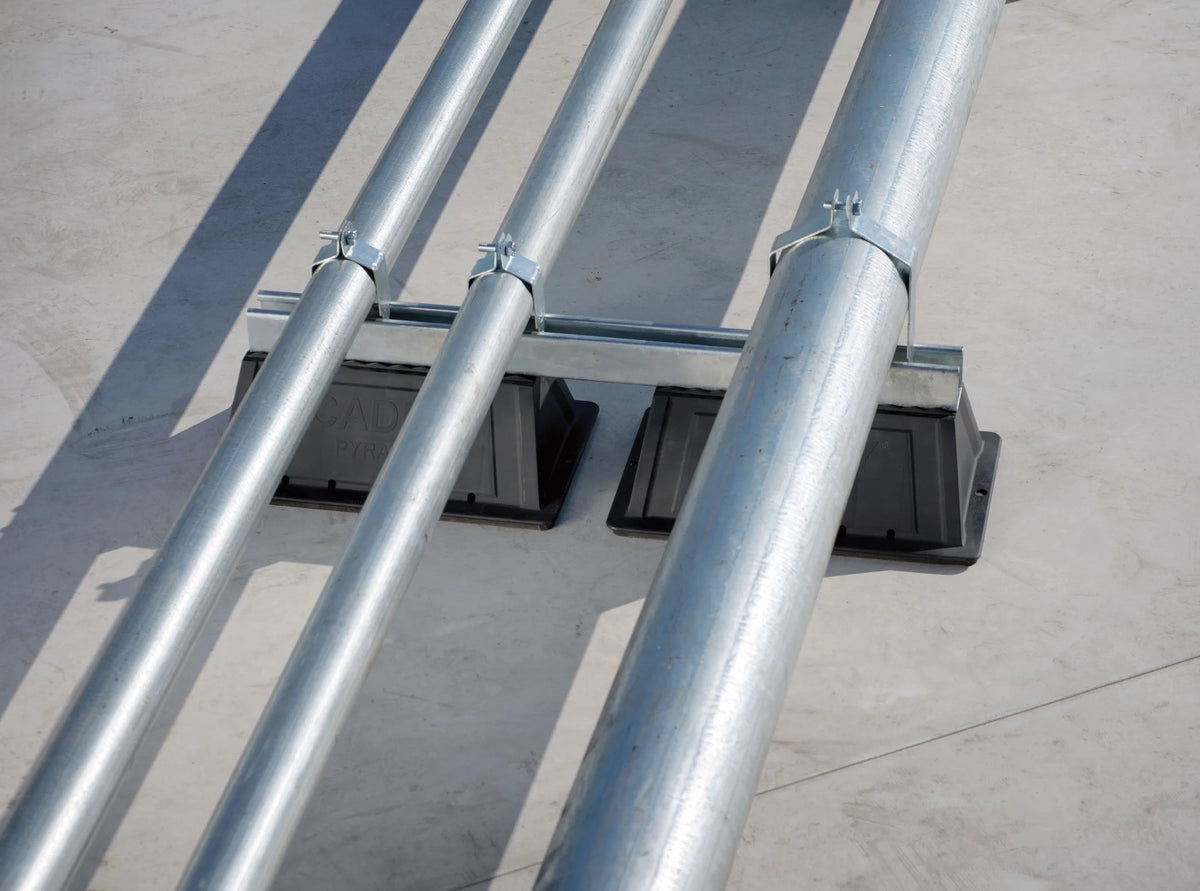

- Ideal for supporting multiple pipe runs, cable tray and air handling units
- Foam bottom offers low abrasion interface for better roof membrane protection
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Provides superior load distribution, even with varying rooftop surfaces
- Ready to use out of the box, saving installation time and labor
- Multiple sizes and load ratings offer the ability to tailor the solution to the application
- Hot-dip galvanized and UV stabilized for long lasting performance
- Static loads are assumed to be uniformly distributed.
Specifications
Specifications
Nvent Caddy - PSB24A - Specifications
| Brand Name | Nvent Caddy |
|---|---|
| Item Description | Rooftop Pyramid ST Bridge Assembly, 24" |
| Manufacturer Part Nmuber | PSB24A |
| Material | Polyethylene; Polypropylene; Steel |
| Finish | Hot-Dip Galvanized |
| Temperature | ?50 to 150 °F |
| Static Load Safety Factor | 3:1 |
| Length 1 | 24" |
| Length 2 | 26 1/2" |
| Height | 5.6" |
| Width | 8" |
| Surface Area | 184"² |
