Brand: Nvent Caddy | SKU: 9892205

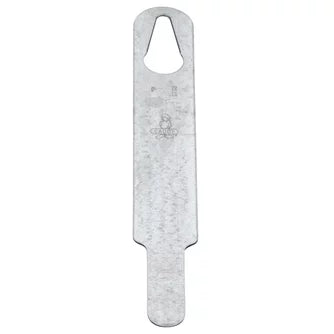

Nvent Caddy RS16 | RS Retrofit Retainer Strap, 16 1/2"

$7.08

Description

Ideal for both new and existing applications
Can be installed without disassembly of the hanging system and/or removing the clamp

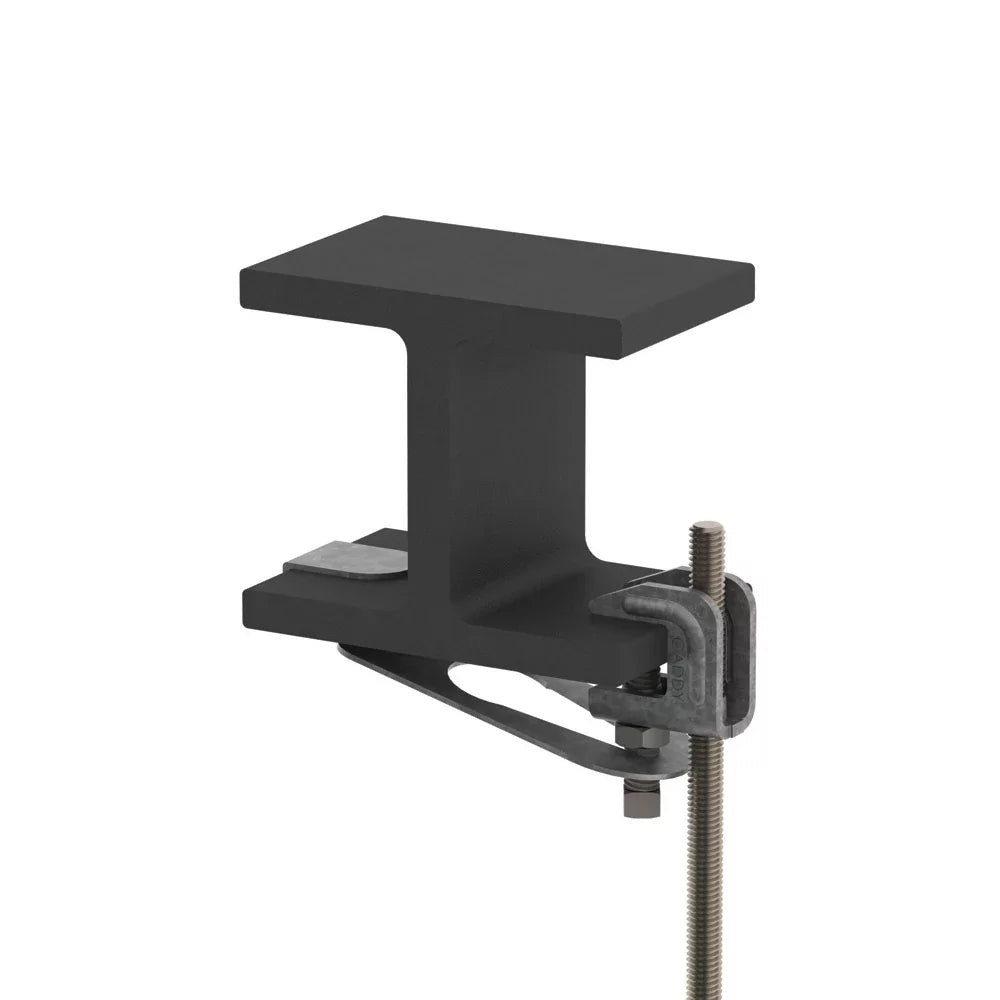

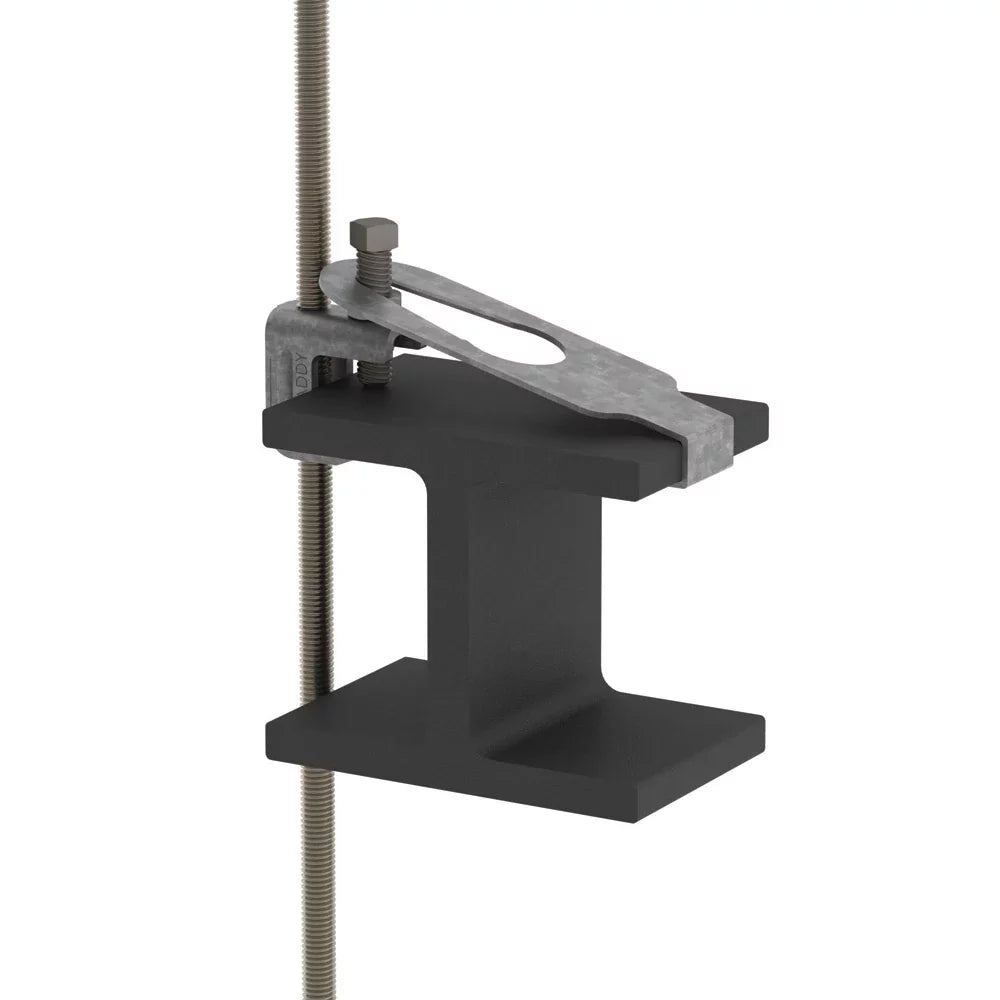

Compatible with all standard nVent CADDY beam clamps and can be secured to either the set screw or threaded rod
Large teardrop-shaped opening is compatible with multiple threaded rod diameters, reducing inventory by 50%
Coined edge on teardrop-shaped opening locks into rod, eliminating shifting during install
Provides a secure attachment in seismic zones and complies with NFPA® requirements
Add 2” to width of flange to determine minimum length strap required.

Brand Name	Nvent Caddy
Item Description	RS Retrofit Retainer Strap, 16 1/2"
Manufacturer Part Nmuber	RS16
Material	Steel
Finish	Pregalvanized
Length	16 1/2"
Width	1 3/4"
Thickness	16 ga
Rod Size	3/8";1/2";5/8";3/4"
Hole Size	1 1/8"
A	3 1/4"
UPC	782856955177
EAN	0782856955177
Standard Packaging Quantity	100.0000
