Brand: Nvent Caddy
|
SKU:
695385

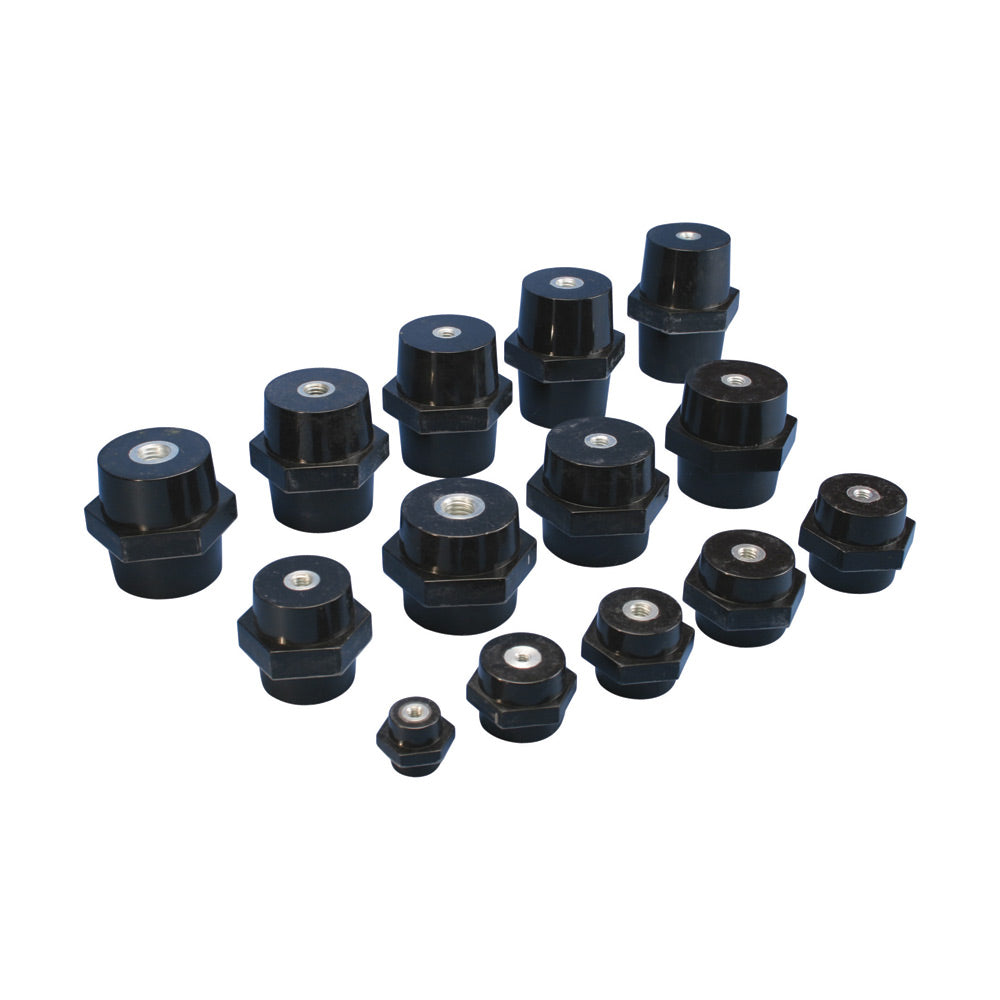

Nvent Eriflex 559681 | Composite Insulator, 2 in. L, 2300 VAC, -40 to +266 F, 2.31 in. D
Regular price
$3.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Nvent Eriflex 559681 | Composite Insulator, 2 in. L, 2300 VAC, -40 ...
Regular price
$3.73
Unit price
Description
Description
Nvent Eriflex 559681 | Composite Insulator, 2 in. L, 2300 VAC, -40 to +266 F, 2.31 in. D
Composite Insulator; 2 in. Length; 2.31 in. Depth; 2 in. Height; 2300 VAC; Glass Fiber Reinforced Polyester/Steel; -40 to +266 F; 1/2 in. UNC Thread; 1200 to 3000 lb. Load; Electro-Galvanized; System of Measurement: Imperial
Nvent Eriflex - 559681 - Features
- Great stability of electrical and mechanical parameters
- Manufactured from a halogen-free fiberglass-reinforced thermalset unsaturated polyester molded compound (BMC)
- High resistance to leakage current
- Electro-plated zinc inserts are threaded to ASME® standards
- Cost effective
- Wide range of sizes from 1 in to 3.5 in
- UL recognized in E125470 and evaluated for dielectric withstand rating of 1500 VAC/DC
- 1.65 in Dia
- Glass fiber reinforced polyester/steel
- UL 94V-0 flammability rating, 1/2 UNC thread, -40 to 266 deg F working temperature
Specifications
Specifications
Nvent Eriflex - 559681 - Product Categories
- Power Products
- Pole Line Equipment
- Insulators
- Composite Insulators
Nvent Eriflex - 559681 - Specifications
| Manufacturer Name | Nvent Caddy |
|---|---|
| Manufacturer Part Number | 559681 |
| Item Description | Composite Insulator, 2 in. L, 2300 VAC, -40 to +266 F, 2.31 in. D |
| Component | Insulators |
| Depth | 2.31 In. |
| Finish | Electro-Galvanized |
| Flammability Rating | Ul 94V-0 |
| Height | 2 In. |
| Length | 2 In. |
| Load Capacity | 1200 To 3000 Lb. |
| Material | Polyester |
| Product Type | Low Voltage Insulator |
| Size | Iso 2 In. High, 1/2-13 |
| System Of Measurement | Imperial |
| Temperature Rating | -40 To +266 F |
| Thread Size | 1/2 In. Unc |
| Type | Low-Voltage, Stand-Off Insulator |
| Voltage | 2300 Vac |
| UPC | 782856583240 |
