Nvent Eriflex MBJ162508 | Grounding and Bonding Braid, Copper, Tinn...
Description
Description

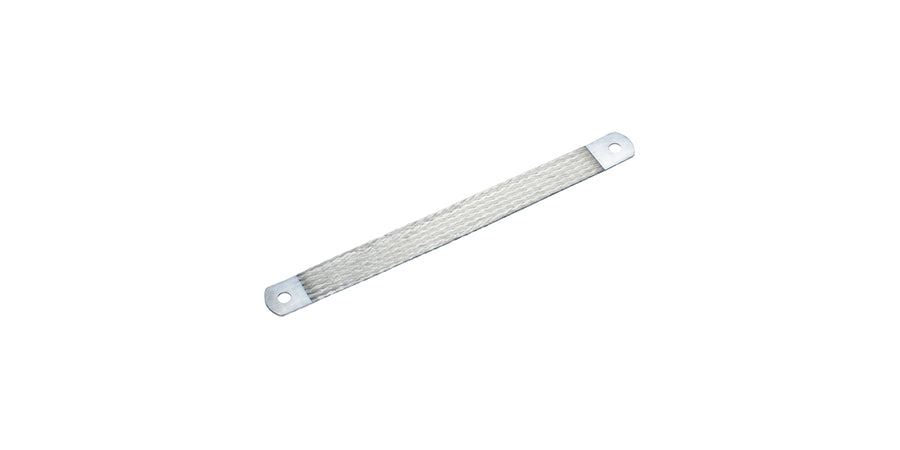

MBJ grounding and bonding braids are a reliable and convenient grounding solution for applications that require flexibility and durability. The tinned copper ground braids with massivated palms come ready to install without any additional cutting, stripping, crimping or punching and do not require the addition of tin or crimped lugs. The proprietary manufacturing process optimizes the electrical contact between each wire and helps eliminate moisture issues in the palms, preventing corrosion and lengthening the useful life of the braid.
Nvent Eriflex - MBJ162508 - Features
- Complete range of earth ground, flexible connections from 6 - 100 sq-mm (11.84 to 197.35 kcmil) cross section and from 100 to 500 mm (3.94 to 19.69 in) length
- Integral palm without tinned or crimped lugs for superior electrical contact and tensile strength resistance
- Resistant to vibration and fatigue, reducing maintenance
- Provides weight savings, material savings and lower impedance when compared to similar lugged cables with insulation
- Ready to use out of the box, eliminates the need for cutting, stripping, crimping and punching
- Quick and easy installation
- Recommended by the EMC/EMI directives and less impedance than cables
- 221 deg F maximum working temperature
- 0.059 in overall braid thick
Specifications
Specifications
Nvent Eriflex - MBJ162508 - Product Categories
- Power Products
- Pole Line Equipment
- Utility Grade Connectors
- Grounding Braids
Nvent Eriflex - MBJ162508 - Specifications
| Manufacturer Name | Nvent Caddy |
|---|---|
| Manufacturer Part Number | MBJ162508 |
| Item Description | Grounding and Bonding Braid, Copper, Tinned, 120 A |
| Amperage | 120 |
| Component | Accessories |
| Connector Type | Braid |
| Current Rating | 120 A |
| Dimensions | Lxwxt: 9.843 X 0.591 X 0.059 In. |
| Finish | Tinned |
| Hole Size | 0.34 |
| Length | 9.84 |
| Material | Copper |
| Operating Temperature | 221 |
| Product Type | Grounding And Bonding Braid |
| Thickness | 0.06 |
| Weight | 0.09 |
| Wire Size | 31.57 |
| UPC | 782856449669 |
