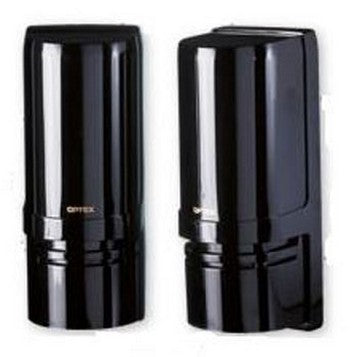

Optex AX-100-PLUS | 100' Outdoor Dual Beam with Form C
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

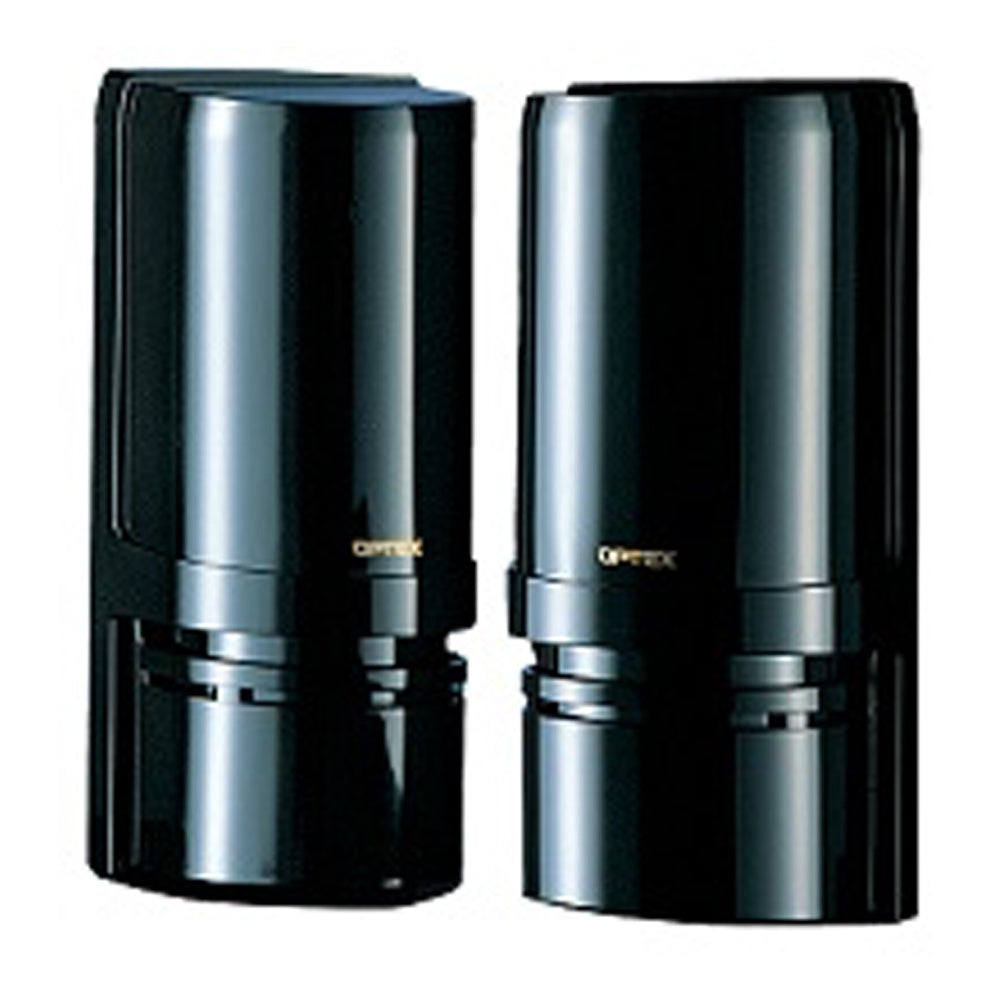

The AX-100 PLUS is a 100' outdoor dual beam w/ Form C from Optex which is part of the Photoelectric Detector series used in many outdoor situations. The AX-100 PLUS 100?dual beam comes with a fine angle adjustment, an automatic gain control, lightning and surge protection, plus a 99% beam blocking rate, synchronized pulsed beams, and an adjustable period for beam interruption. This high grade outdoor dual beam incorporates a design and a technology that offers a variety of functions to greatly simplify an installation and help maintain a performance that is reliable even in the most difficult environmental and weather situations. This high grade outdoor dual beam is manufactured from quality materials and can be purchased at an affordable price.
Photoelectric Detectors Improved with OPTEX Innovation to Provide Advanced Performance in Outdoor Detection.OPTEX Photoelectric Detectors with Innovative Features for Easy Installation Provide Stable Performance against False Alarms for More Effective Outdoor Detection and Non Security Applications.The OPTEX AX-100/200 Photoelectric Detector Series is the next step in Outdoor Detection and will satisfy all the needs of both users and installers. OPTEX unique technology and design provide a wide range of functions that greatly simplify installation and maintain reliable performance even in many adverse weather or environmental conditions.*Replacement Lens (Covers) Optex part number is AX-ALPHAPLUSCVR. (Sold Individually). FA-3 bracket accessory not available for the U.S.
Optex - AX-100-PLUS - Features
- 100ft Outdoor Detection With Clear Viewfinder Visibility
- Fine Angle Adjustment for Alignment
- Lightning & Surge Protection
- Rain, Dust & Insect Protection
- Twin Synchronized Pulsed Beams Designed for Greater Stability
- 99% Beam Blocking Rate
- Automatic Gain Control Circuit
- Adjustable Beam Interruption Period
- Lighting & Surge Protection
Specifications
Specifications
Optex - AX-100-PLUS - Specifications
| Manufacturer | Optex Inc |
|---|---|
| Condition | New |
| Detection Method | Infrared Photoelectric |
| Outdoor range | 100ft. ( 30m ) |
| Maximum Arrival Distance | 1000ft. ( 300m ) |
| Beam Characteristics | Pulsed infrared |
| Power Input | 10.5~28V DC |
| Alaram Period | 2sec ( ±1 ) nominal |
| Alaram Output | Form C Relay ( 28V DC 0.2A max ) |
| Tamper Switch | N.C. opens when cover is removed (Receiver Only) |
| Operating Temperature | -13°F ~ 131°F (-25°C ~ 55°C) |
| Environment Humidity | 95% Max |
| Alignment Angle | ±5°Vertical, ±90° Horizontal |
| Mounting | Wall or Pole |
