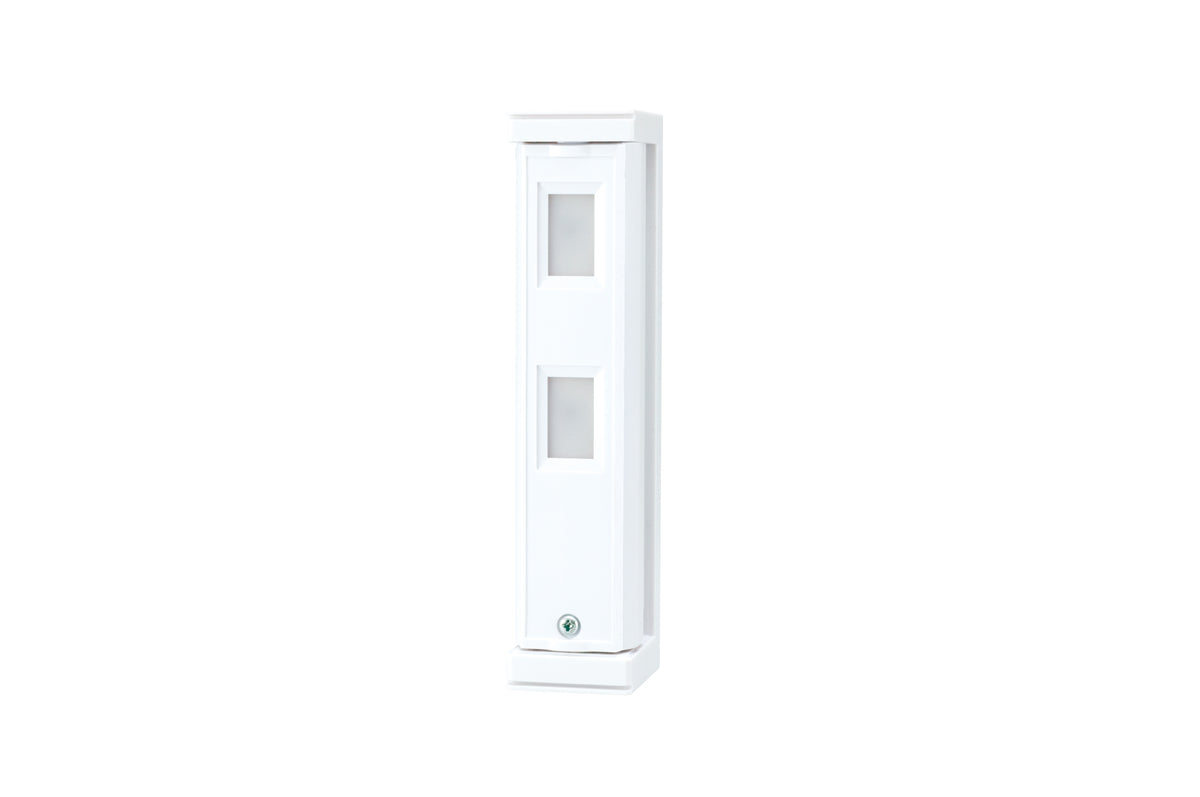

Optex FTN-AM | Compact Outdoor Dual PIR Detector With Anti-Masking, 16.5' x 3.3' or 6.7' x 3.3'
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The FTN-AM is a high performance compact 16.5' x 3.3'/6.7' x 3.3' dual PIR detector with anti-masking from Optex which is specially manufactured to be used for outdoor setups. The FTN-AM PIR detector comes with pet tolerant features, intelligence and logic, double conductive shielding, super multi dimension analysis for simple analysis of every move and motion before triggering the alarm, as well as a 190?horizontal rotation w/ inbuilt mounting bracket, and a selectable narrow detection range. The FTN-AM PIR detector also features an IP55 rating for outdoor use, a wall mountable design, a passive infrared detection method, plus a 60sec warm up period. This professional PIR is able to offer use where many small animals may exist to limit the need for the alarm to trigger each time an unwanted object comes into range, and is able to be effortlessly installed for all operators.
The 'fit' FTN-AM offer the perfect solution for those outdoor areas where false alarms caused by environmental disturbances and small animals are an issue. The FTN-AM comes with a built in bracket that enables horizontal rotation of 190 degrees, and it's compact size and flexible detection area allow the sensor to 'fit' into a variety of both residential and commercial applications. The FTN-AM includes the added security of Anti-Masking.
Optex - FTN-AM - Features
- Selectable 16.4ft. (5m) and 6.6ft. (2m) narrow detection ranges
- 190° horizontal rotation with built in mounting bracket
- Dual PIR detectors for enhanced pet tolerance
- Super Multi Dimension Analysis Logic analyzes every motion before signaling an alarm
- Double Conductive Shielding
- Intelligent 'AND' logic
- Selectable 16.4ft. (5m) and 6.6ft. (2m) narrow detection ranges
- 190?horizontal rotation with built in mounting bracket
- Dual PIR detectors for enhanced pet tollerance
Specifications
Specifications
Optex - FTN-AM - Specifications
| Manufacturer | Optex Inc |
|---|---|
| Category | New |
| Model | FTN-AM |
| Detection method | Passive infrared |
| PIRcoverage | 16'5"×3'3" (5x1m) |
| Detection length limit | 6'7", 16'5" (2m, 5m) |
| Detectable speed | 1' - 4'11"/s (0.3 - 1.5 m/s) |
| Sensitivity | 3.6F [ at 2'/s] (2.0C [at 0.6 m/s]) |
| Operation voltage | 9.5 - 18 V DC |
| Current draw | 20mA(max.) (at 12 V DC) |
| Alarm period | 2.0 1.0sec. |
| Warm-up Period | Approx. 60 sec. (LED blinks) |
| Alarm output | N.C./N.O. Selectable 28 V DC 0.1 A (max.) |
| Trouble Output | N.C. 28 V DC 0.1 A (max.), open when the cover is removed. |
| LED Indicator Light/Blink | Warm-up, alarm, masking detection (FTN-AM only) |
| Operation Temperature | -4 - +140F (-20 - +60C) |
| Environment Humidity | 95% max. |
| IP Rating | IP55 |
| Mounting | Wall (Outdoor, Indoor) |
| Mounting Height | 2'7" - 3'11" (0.8 - 1.2 m) |
| Accessories screw | (3×20 mm)×2 |
