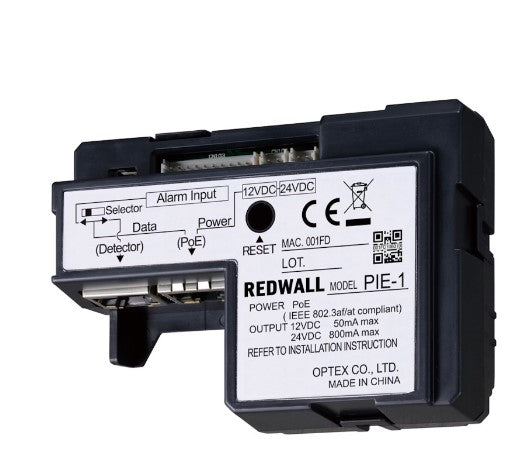

Optex PIE1 | PoE IP Encoder
Description
Description
PIE-1 is an encoder that converts analog relay outputs to original ASCII code (Redwall Event Code) for Redwall and Fiber SenSys detectors. Detectors can be connected to Video Management Software platforms with PIE-1 and control IP cameras. PIE-1 is generating Redwall Event Code using the analog alarm inputs from the Redwall and Fiber SenSys detectors. Video Management Software receives the event code and sends a command to reposition to a pre-set and/or start recording with a camera. The PIE-1 is compatible with Power over Ethernet (PoE). IEEE802.3 af/at making it possible to supply power using a PoE hub or switch. Only one LAN cable is needed to connect PIE-1 to a PoE hub or switch reducing your installation time and cost.
Optex - PIE1 - Features
- Change analog relay output signals (N.C.) to original ASCII code
- Supply power to detectors using PoE hub or switch
- Integrated with leading VMS platforms
Specifications
Specifications
Optex - PIE1 - Specifications
| Type | Encoder |
|---|---|
| UNSPSC Code | 46171610 |
| Power Suppiy | PoE |
| Protocols Supported | IPv4, ARP, UDP, TCP, ICMP, HTTP |
| Power Output | 24 VDC 800 mA maximum, 12 VDC 50 mA maximum |
| Operating Temperature | -40 to 140?F (-40 to 60?C) |
| Operating Humidity | 95% RH. maximum |
| Dimensions | 3.66 x 3.73 x 1.30" (92.96 x 94.74 x 33.02 mm) |
