Description
Description

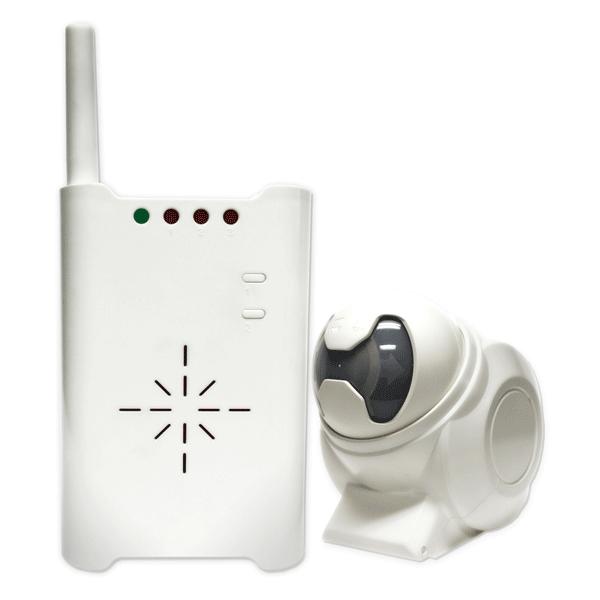

The RCTD-20U is a long range 2000 WSS transmitter/receiver set from Optex which is used for monitoring a property on a 24 hour, seven day a week basis. The RCTD-20U receiver set can detect people or vehicles that may be approaching a property, and offers an alert or chime to prepare for the arrival of deliveries or visitors. The RCTD-20U long range 2000 transmitter is a convenient way to activate lights, motors, magnetic locks and other similar types of electrical equipment, and offers a convenient means of alerting to the presence of people or vehicles in the vicinity of the operating range making it suitable for a home or business in indoor or outdoor setups.
The RCTD-20U or “Wireless 2000” from Optex is a wireless annunciator system that not only alerts shop owners to customers entering their store, but also can provide driveway annunciation and perimeter awareness. The Wireless 2000 includes an outdoor rated PIR detector, as well as an R.F. receiver that can hold up to 9 detectors and chimes when the sensor detects motion. The R.F. receiver also features a Form C relay for activation of a variety of electronic equipment. Additional accessories can be added, including the TC-20U wireless door / window contact, TS-10U wireless push button transmitter for notification or activation applications and TR-20U repeater for applications where extended range between Wireless 2000 devices is necessary. Whether for home or business, indoor or outdoor, the Wireless 2000 is the ideal choice for perimeter awareness and wireless remote control.
Optex - RCTD-20U - Features
- Accepts 9 transmitters, identifies each group of 3 with a different chime tone
- Form C relay for activating other devices with adjustable output duration
- 2000ft. transmission range (line of sight)
- Selectable 17ft. fan (wide) or 50ft beam (long range) detection pattern
- Easy installation and setup
- Indoor and outdoor use
- Extra long transmission range
- Adjustable volume
- On-Off control
- An optional alarm mode
Specifications
Specifications
Optex - RCTD-20U - Specifications
| Manufacturer | Optex Inc |
|---|---|
| Condition | New |
| Detection method | Passive infrared |
| Detection pattern | 50ft (15m) long range, 17ft (5m) fan pattern |
| Angle adjustment | ±45° Vertically & ±5° Horizontally or ±5° Vertically & 45°Horizontally |
| Power source 9V | alkaline battery |
| Battery life | 250/day at 70°F (20°C) |
| Status indicator | Red LED |
| Battery life | 250/day at 70°F (20°C) |
| Radio frequency | 418MHz |
| Max. transmission range | 2000ft (line of sight) |
| Operating temperature | 15°F~120°F (-10°C~+50°C) |
| Water resistance | IP54 |
| Installation location | Outdoor/Indoor |
| Accessories | Mounting screw × 2 |
Documents and Downloads
Documents and Downloads
