Brand: Optex | SKU: 484262

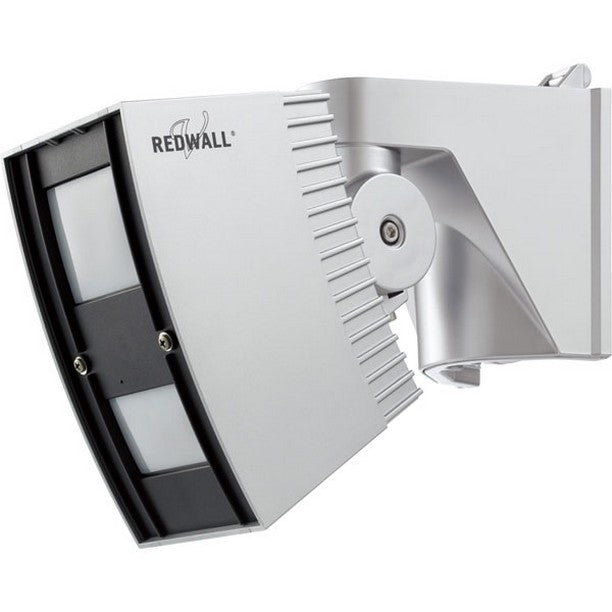

Optex SIP-4010WF | Wireless Ready 130' X 33' Superior Intelligent PIR Detector

Regular price $789.36
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Optex SIP-4010WF | Wireless Ready 130' X 33' Superior Intelligent PIR Detector

The SIP-4010WF is a wireless ready superior intelligent 130'x 33' PIR detector from Optex which is able to offer advanced detection within a variety of applications with its robust and reliable design. The SIP-4010WF wireless ready PIR detector comes with ambient temperature and illuminance detection for sensitivity management, BS 8418 compliancy, advanced detection algorithm, 3 Pyro-elements w/ double conductive shielding, anti-vandalism functions, as well as a reinforced polycarbonate housing, anti-rotation functions w/ 3 axis accelerometer, and fog cancellation algorithm. The SIP-4010WF wireless ready PIR detector also features anti-masking function w/ photo-beam, a detection logic selector, an independent sensitivity selector, a detection range selector, as well as adjustable alarm interval times, and a 4m installation height. This powerful PIR detector is able to offer simple setup, and is able to offer resistance against unwanted alarm triggering when non-important items enter the vicinity.

The SIP-4010WF is a battery powered PIR detector that offers mid range outdoor detection for triggering CCTV systems. It is compatible most manufacturers wireless transmitters, eliminating the need to run wire to power the detector. The SIP-4010WF is also equipped with anti-rotation, anti-masking functions in addition to the anti-tamper feature which provides further security. The superior power management circuit achieves low current consumption without compromising the rich functionality. (Battery and backbox not included.).

Optex - SIP-4010WF - Features

  • Battery operated Intelligent PIR Detection System (Battery and transmitter not included)
  • Detection of ambient temperature and illuminance for automatic sensitivity management
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
  • Anti-vandalism functions
  • Anti-rotation function with 3-axis accelerometer
  • Anti-masking function with photo-beam
  • Reinforced polycarbonate housing
  • Max. 4m (13ft.) installation height
  • Independent sensitivity selector for near/far areas
  • Detection logic selector Detection range selector
  • Independent N.C. and N.O. outputs
  • Adjustable alarm interval time
  • Intelligent PIR Detection System
  • BS 8418 Compliant
  • Fog cancelation algorithm (Patent pending)
  • Detection logic selector
  • Detection range selector

Specifications

Optex - SIP-4010WF - Specifications

ManufacturerOptex Inc
ConditionNew
ModelSIP-4010WF
Detection methodPassive infrared
Coverage30 x 10 m (100 x 65 ft.)
Power input11 – 16 VDC 22 – 26 VAC
Current draw35mA max. (12 VDC) 70mA max (24 VAC)
Mounting Height2.3 m to 4m (7.6 to 13 ft.)
Sensitivity selector FarSH/H/M/L Near: SH/H/M/L
Range selector FarON/OFF
Alarm OutputN.O., N.C., 28 VDC 0.2A max.
Alarm interval periodOff/15,30,60 sec
Trouble output N.C.28VDC 0.2A max.
Tamper Output N.C28VDC 0.1A max.
Alarm Period Approx2 sec
Warm-up period Approx60 sec
IP rating Main unitIP65; Chassis: IP55
Dimensions227 x 102 x 266 mm (9.0 x 4.0 x 10.5 in.)
