Brand: Panduit
|
SKU:
A2-56R-C-GEN

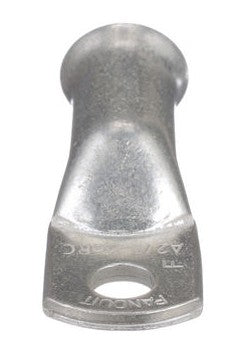

Panduit A2-56R-C | Pan-Lug Lug, 2, Tin Plt Copper, One 0.31" Stud, PK100
Regular price
$2.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit A2-56R-C | Pan-Lug Lug, 2, Tin Plt Copper, One 0.31" S...
Regular price
$2.55
Unit price
Description
Description
Panduit A2-56R-C | Pan-Lug Lug, 2, Tin Plt Copper, One 0.31" Stud, PK100
Our tongue battery cable compression lug simplifies a secure battery cable connection with its straight tongue design, excellent copper conductivity, ideal for heavy-duty electrical systems.
Specifications
Specifications
Panduit - A2-56R-C - Package Contents
| UPC | 61305671746 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0610 |
Panduit - A2-56R-C - Specifications
| Product Type | Compression Lug |
|---|---|
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Standard |
| Barrel Entry | Flared |
| Tongue Type | Round |
| Tongue Angle | Straight |
| Inspection Window | No |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Class K Copper Flex Conductor Size | 2 AWG |
| Barrel Length (In.) | 0.74 |
| Barrel Length (mm) | 18.8 |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 1.89 |
