Panduit A2C50-A-C8 | Wire Clip
Description
Description
Provide enhanced holding power and stability with our adhesive-backed wire clips, ideal for your heavier cables or more demanding environments.

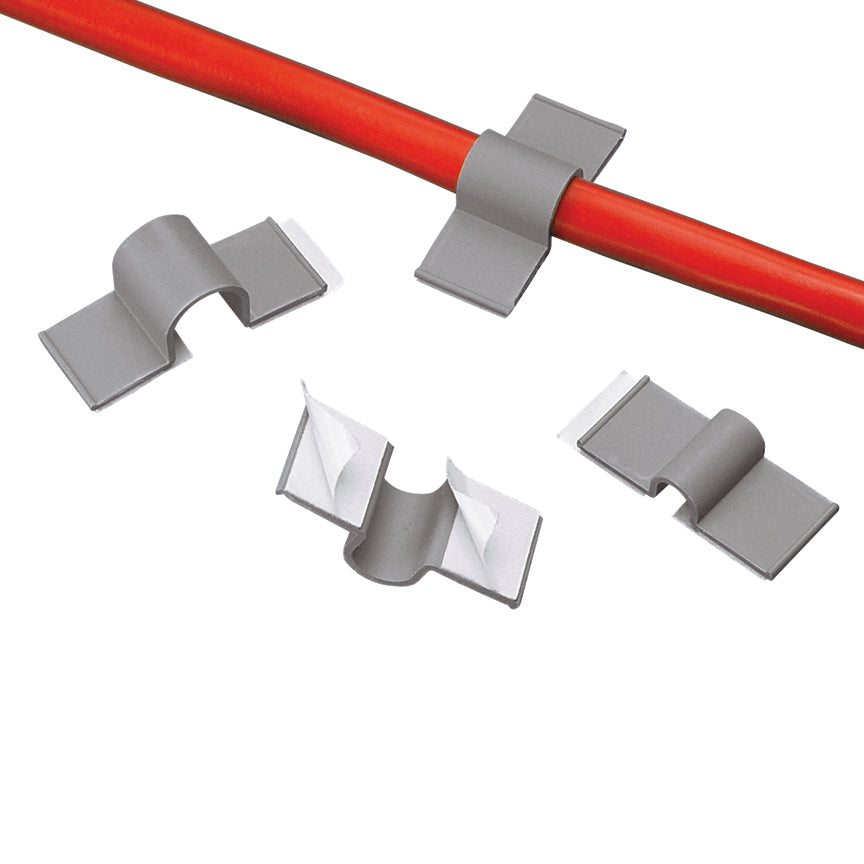

Adhesive backed "A2C" clip, 0.50 (12.7mm) bundle, light gray.
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cord Clip, Adhesive Backed, 1/2 in Cable, 0.32 lb Static Load, Rubber Adhesive Tape Mounting, Specifications: 1/2 in Dia Bundle, Light Gray Color, PVC, 1.72 in L x 0.63 in W x 0.61 in H Dimensions
Panduit - A2C50-A-C8 - Features
- Releasable latches allow addition or removal of cables
- Superior adhesive for long-term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
- Holds cords, cables and tubing
- Single rubber adhesive pad for confined areas
Specifications
Specifications
Panduit - A2C50-A-C8 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | A2C50-A-C8 |
| UNSPSC Code | 31162900 |
| Product Type | Wire Clip |
| Application | Hold cords, cables and tubing |
| Adhesive Material | Rubber |
| Body Material | PVC |
| Color | Light Gray |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1.72 |
| Overall Length (mm) | 43.7 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
| Overall Height (In.) | 0.61 |
| Overall Height (mm) | 15.5 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| Vertical Static Load Capacity (kg) | 0.128 |
| Vertical Static Load Capacity (lb) | 0.28 |
| Horizontal Static Load Capacity (kg) | 0.128 |
| Horizontal Static Load Capacity (lb) | 0.28 |
| Part Features | Holds cords, cable and tubing, two rubber adhesive pads for added strength |
| UPC | 07498358093 |
Panduit - A2C50-A-C8 - Videos
| Panduit A2C50-A-C8 Video 1 | Click to View |
|---|
