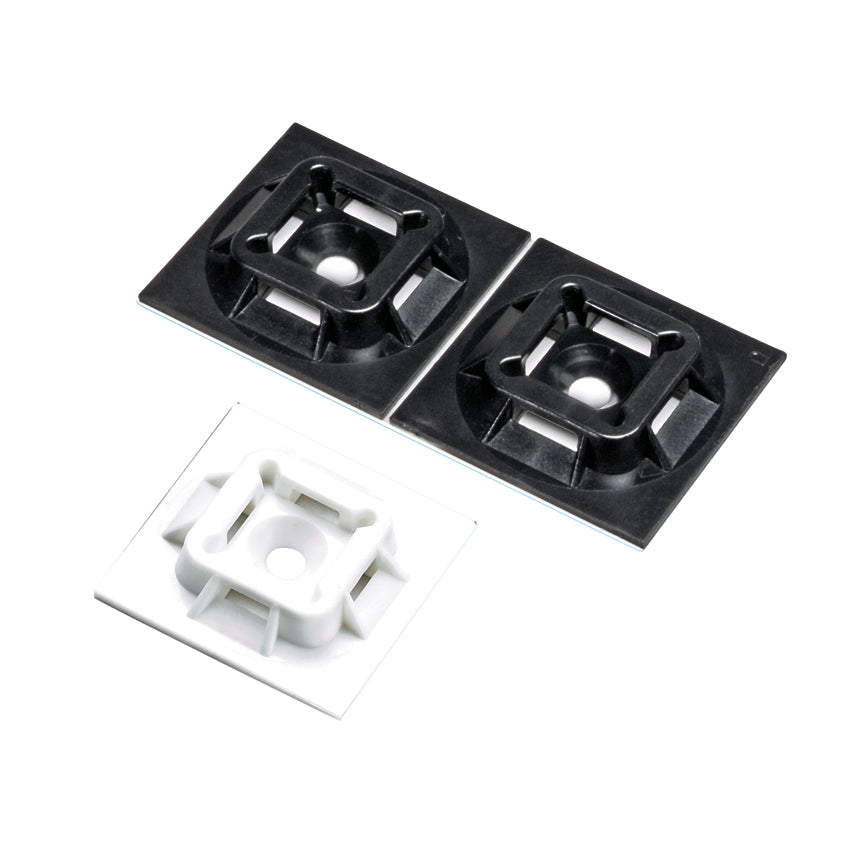

Panduit ABM100-A-C15 | Cable Tie Mount
Description
Description
Optimize cable management with our high-bond, four-way adhesive cable tie mount. Ideal for high-temp indoor use, they offer quick installation, easy orientation, and lasting reliability.
Cable Tie Mount, Adhesive, 1"x1" (25.4mm x 25.4mm), Ivory, 100 Pack
Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cable Tie Mount, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.19 in Maximum Tie Width, 1 in Base Length, 1 in Base Width, Nylon, Ivory
Panduit - ABM100-A-C15 - Features
- Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
- Rubber-based adhesive provides a strong and reliable bond
- Allow cable tie entry from all four sides
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - ABM100-A-C15 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM100-A-C15 |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | Ivory |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498338441 |
Panduit - ABM100-A-C15 - Videos
| Panduit ABM100-A-C15 Video 1 | Click to View |
|---|
