Brand: Panduit
|
SKU:
317784
Panduit ABM100-AT-D | Abm100-At-D Cable Tie Mount
Regular price
$431.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABM100-AT-D | Abm100-At-D Cable Tie Mount
Regular price
$431.48
Unit price
Description
Description

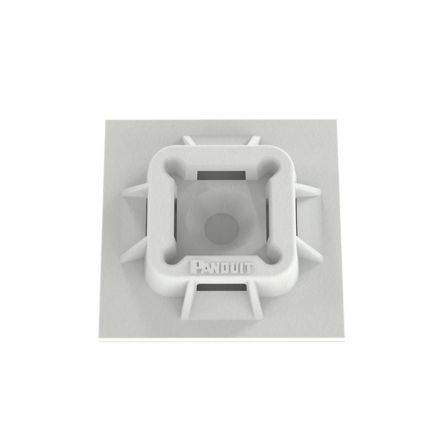

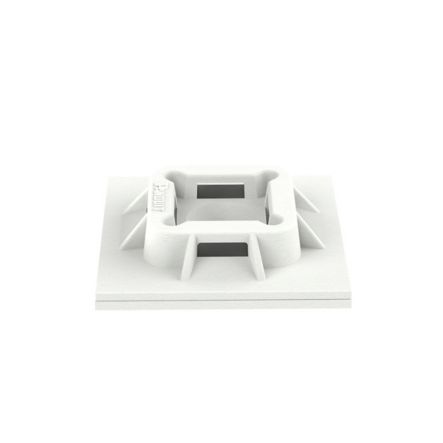

Panduit ABM100-AT-D | Abm100-At-D Cable Tie Mount
The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 1" long x 1" wide (25.4 x 25.4 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable miniature, intermediate, and standard cable ties. It is designed for indoor, high-temperature environments and comes in packages of 500.
Panduit - ABM100-AT-D - Features
- Superior adhesive for long term reliability

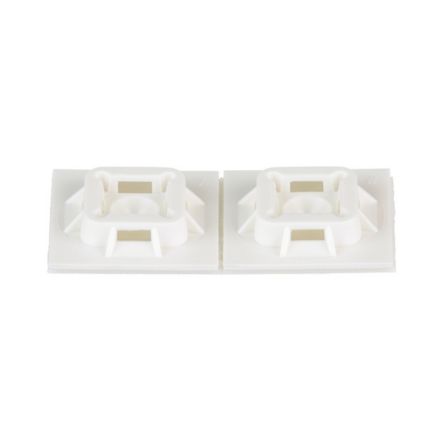

- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
Specifications
Specifications
Panduit - ABM100-AT-D - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM100-AT-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM100-AT-D |
| Item Description | Abm100-At-D Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Acrylic Adhesive Tape |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - ABM100-AT-D - Package Information
| UPC | 07498353610 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1326 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.3262 |
Panduit - ABM100-AT-D - Videos
| Video 1 | Click to View |
|---|
