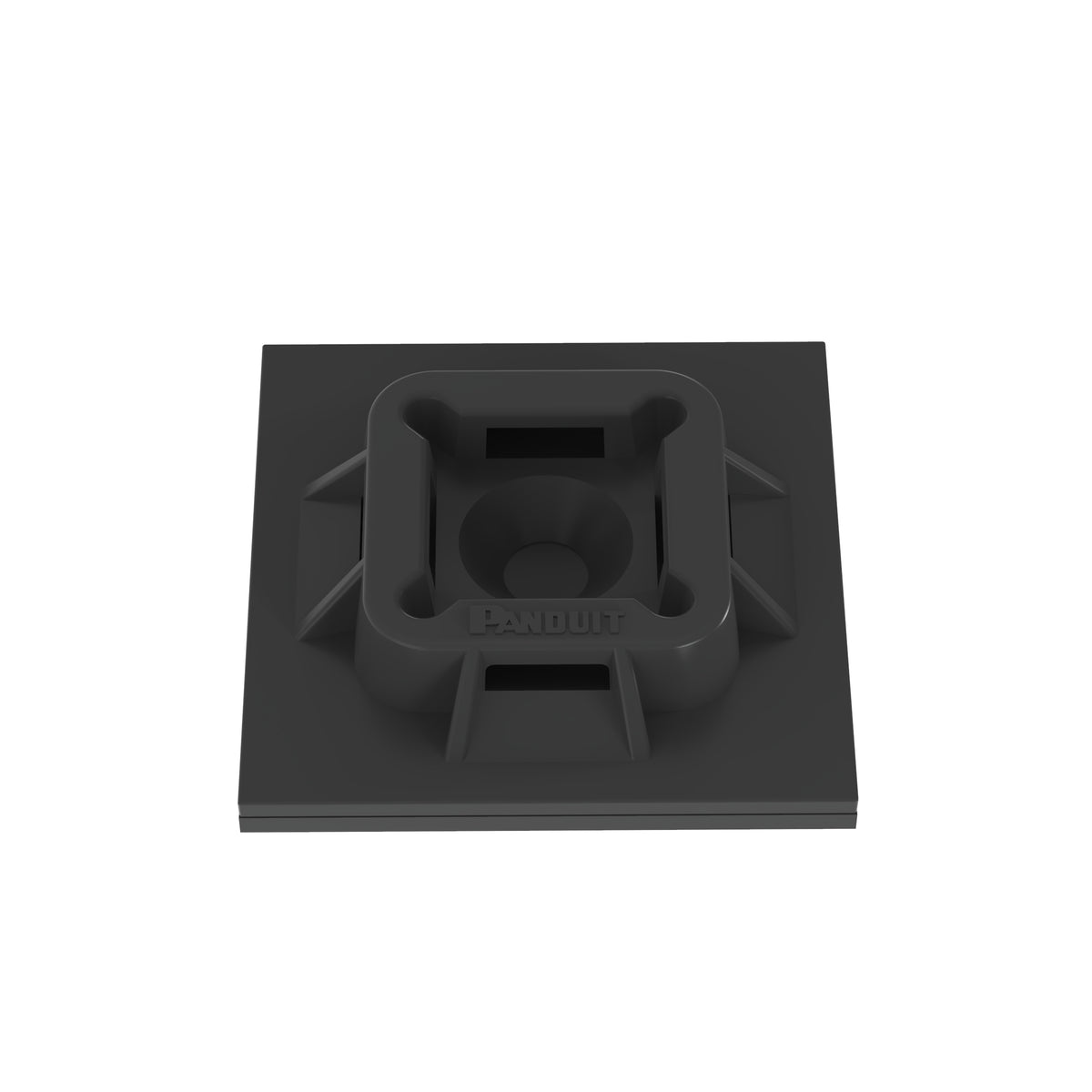

Panduit ABM100-AT-D0 | 4-Way Adhesive Backed Cable Tie Mount
Description
Description
Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability. The 4-way adhesive backed cable tie mount in black is mounted with acrylic adhesive tape. It is 1 in L x 1 in W (25.4 x 25.4 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance and stiffness. It is used with miniature, intermediate and standard cable ties. It is designed for outdoor high temperature environments and comes in packages of 500.
Panduit Cable Tie Mount, 4-Way Tie Entry, Acrylic Adhesive Tape Mount, 0.19 in Maximum Tie Width, 1 in Base Length, 1 in Base Width, Nylon, Black
Optimize cable management with our high-bond, four-way adhesive cable tie mount. Ideal for high-temp indoor use, they offer quick installation, easy orientation, and lasting reliability.
Panduit - ABM100-AT-D0 - Features
- Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
- Rubber-based adhesive provides a strong and reliable bond
- Allow cable tie entry from all four sides
- For use with miniature, intermediate, standard, SGM = Super-Grip miniature, Super-Grip intermediate and Super-Grip standard cable ties
Specifications
Specifications
Panduit - ABM100-AT-D0 - Specifications
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.24 |
| Overall Height (mm) | 6.1 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| UPC | 07498328108 |
Panduit - ABM100-AT-D0 - Package Information
| UPC | 07498328108 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.1275 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.2750 |
