Brand: Panduit
|
SKU:
ABM100-S6-C
Panduit ABM100-S6-C | ABM100-S6-C Cable Tie Mount
Regular price
$121.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABM100-S6-C | ABM100-S6-C Cable Tie Mount
Regular price
$121.40
Unit price
Description
Description

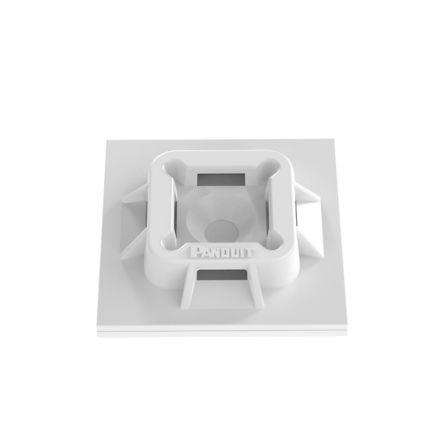

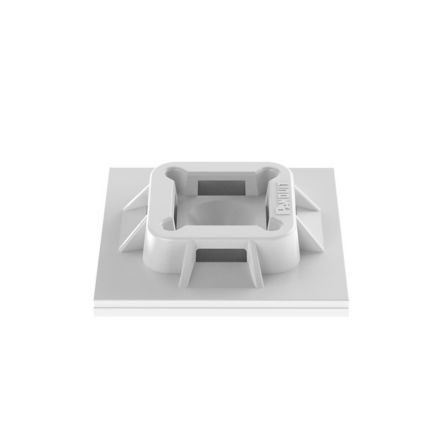

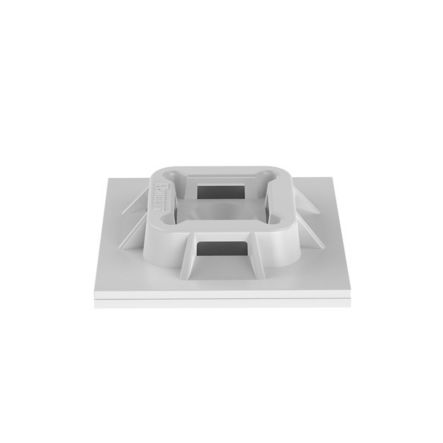

Panduit ABM100-S6-C | ABM100-S6-C Cable Tie Mount
The cable tie mount in white is mounted with a #6 (M3) screw or user supplied adhesive. It is 1" long x 1" wide (25.4 x 25.4 mm), made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.
Specifications
Specifications
Panduit - ABM100-S6-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM100-S6-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM100-S6-C |
| Item Description | ABM100-S6-C Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Flammability Rating | UL94V-2 |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Acrylic Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - ABM100-S6-C - Package Information
| UPC | 07498338445 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0420 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.4196 |
Panduit - ABM100-S6-C - Videos
| Video 1 | Click to View |
|---|
