Panduit ABM112-A-D | Cable Tie Mount
Regular price
$329.31
Unit price
Brand: Panduit
|
SKU:
PAN-ABM112-A-D
Regular price
$329.31
Unit price
Description
Description

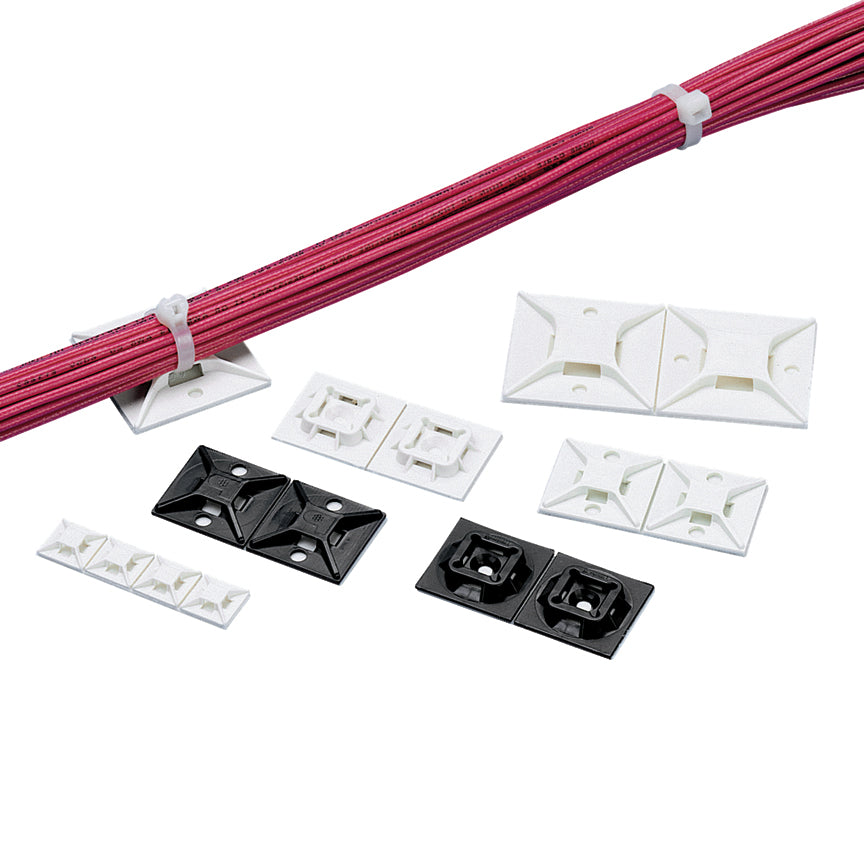

Panduit ABM112-A-D | Cable Tie Mount
Panduit Cable Tie Mount, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.19 in Maximum Tie Width, 1.12 in Base Length, 1.12 in Base Width, Nylon, White
Panduit - ABM112-A-D - Features
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - ABM112-A-D - Specifications
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
|---|---|
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120.2 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20.2 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | 0.14 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 1.12 |
| Overall Length (mm) | 28.4 |
| Overall Width (In.) | 1.12 |
| Overall Width (mm) | 28.4 |
| Standards Met | CE Compliant, UL Recognized, RoHS Compliant |
| UPC | 07498328112 |
