Panduit ABM112-A-D20 | 4-Way Adhesive Backed Cable Tie Mount
Description
Description
Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.

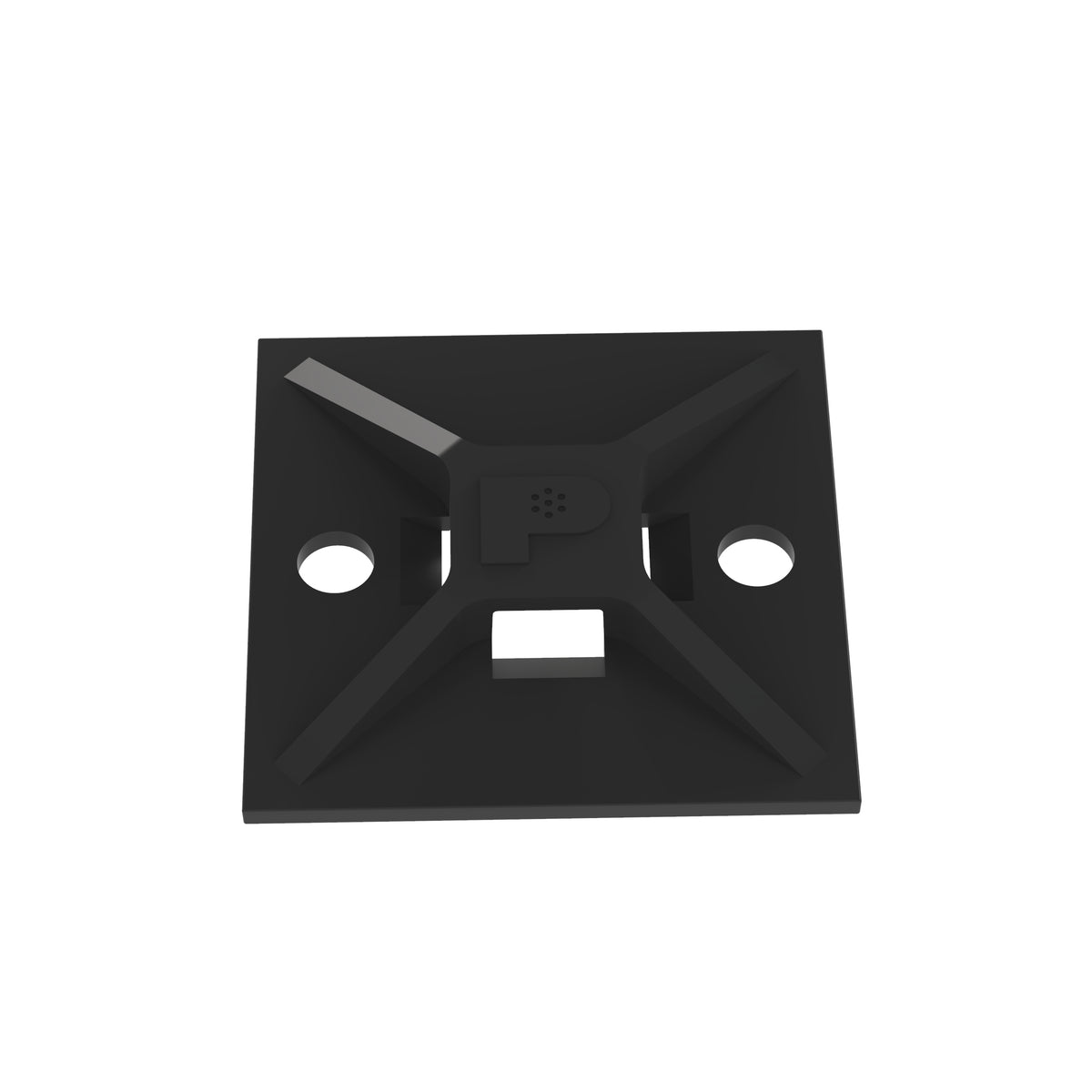

Panduit Cable Tie Mount, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.19 in Maximum Tie Width, 1.12 in Base Length, 1.12 in Base Width, Nylon, Black
Optimize cable management with our high-bond, four-way adhesive cable tie mount. Ideal for high-temp indoor use, they offer quick installation, easy orientation, and lasting reliability.
Panduit’s ABM112-A-D20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standa rd cable ties and are designed for indoor environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 500.
Panduit - ABM112-A-D20 - Features
- Riser (OFNR) rated with 1.6 mm jacket
- Applications: Used with Miniature, Intermediate, and Standard Cables Ties
- Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
- Rubber-based adhesive provides a strong and reliable bond
- Allow cable tie entry from all four sides
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - ABM112-A-D20 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized, RoHS Compliant |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 1.13 |
| Overall Length (mm) | 28.5 |
| Overall Width (In.) | 1.12 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Standards Met | CE Compliant, UL Recognized, RoHS Compliant |
| UPC | 07498364271 |
Panduit - ABM112-A-D20 - Package Information
| UPC | 07498364271 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.1717 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.7173 |
Panduit - ABM112-A-D20 - Videos
| Panduit ABM112-A-D20 Videos | Click to View |
|---|
