Panduit ABM112-AT-C0 | ABM112-AT-C0 Cable Tie Mount, Black, UV PA6....
Description
Description

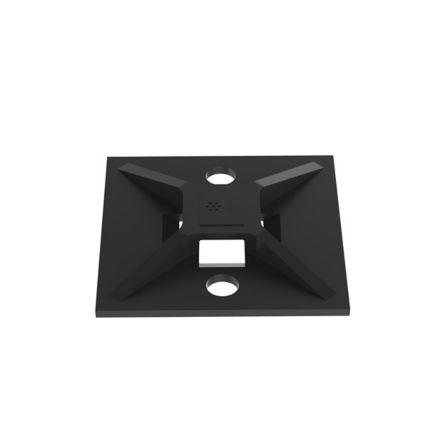

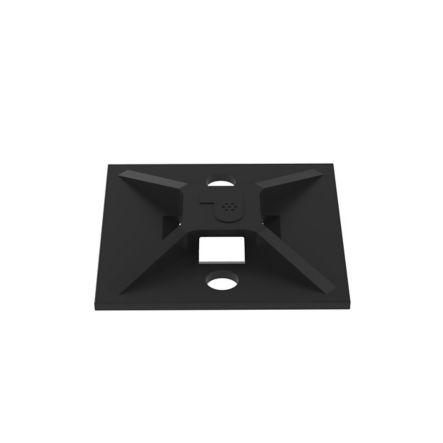

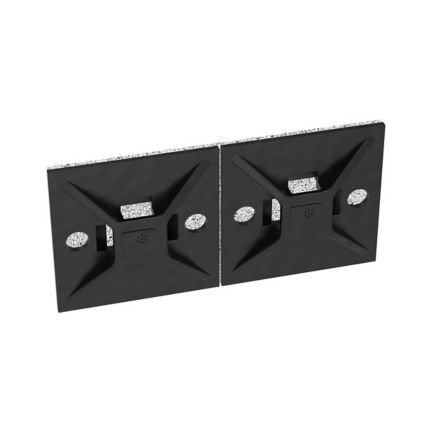

Panduit’s ABM112-AT-C0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 100.
Panduit - ABM112-AT-C0 - Features
- 4-Way Adhesive Backed Cable Tie Mount
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
Specifications
Specifications
Panduit - ABM112-AT-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM112-AT-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM112-AT-C0 |
| Item Description | ABM112-AT-C0 Cable Tie Mount, Black, UV PA6.6, Acrylic Adh., 1.12x1.12", PK100 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Acrylic Adhesive Tape |
| Mounting Hole Thread Size | 0.14 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 1.12 |
| Overall Length (mm) | 28.5 |
| Overall Width (In.) | 1.12 |
| Overall Width (mm) | 50.3 |
| Resistance Properties | UV Resistant |
| Standards Met | CE Compliant, UL Recognized, RoHS Compliant |
| Static Load Capacity (kg) | 0.286 |
| Static Load Capacity (lb) | 0.63 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - ABM112-AT-C0 - Package Information
| UPC | 07498328113 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0334 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.3338 |
