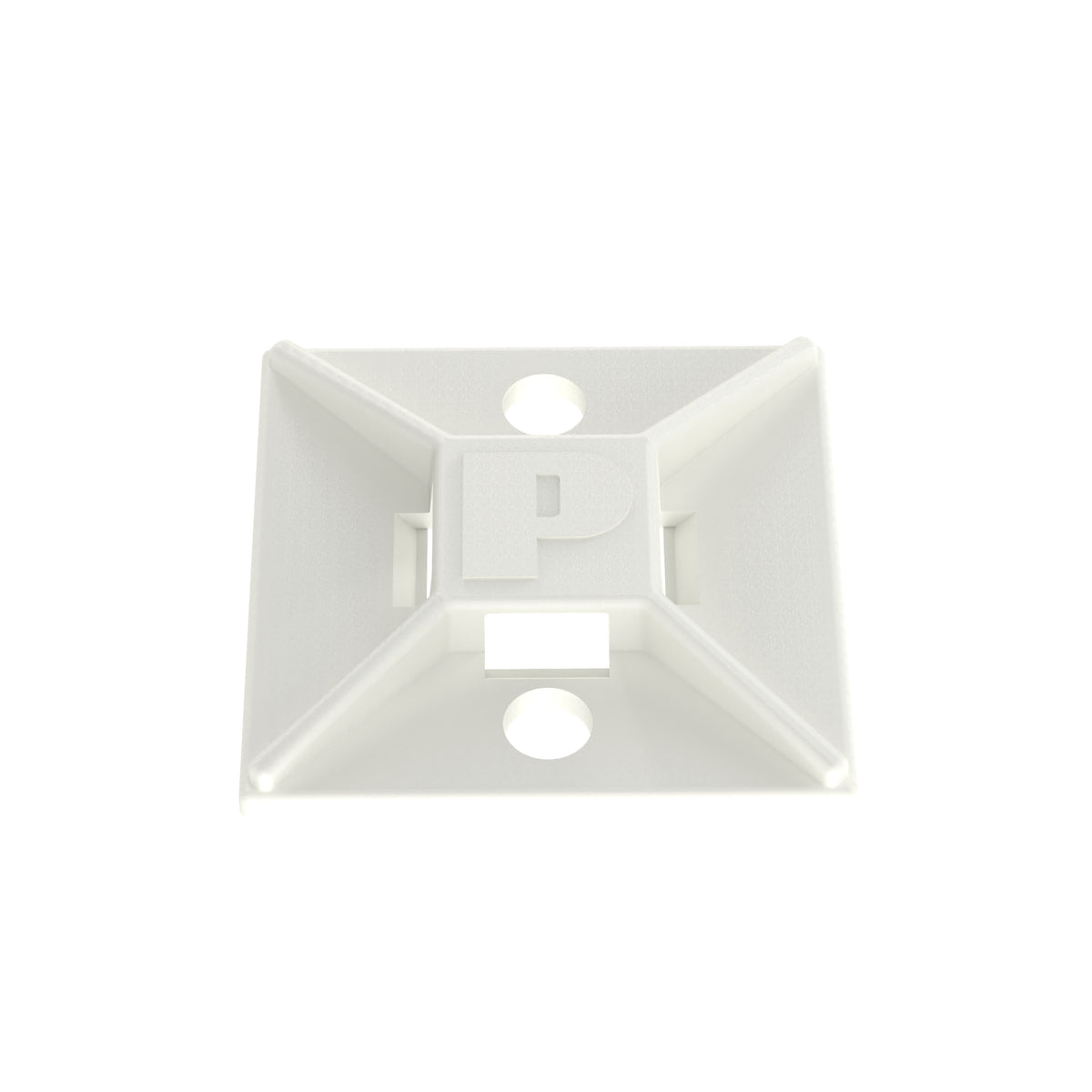

Panduit ABM112-AT-D | 4-Way Adhesive Backed Cable Tie Mount
Description
Description
Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cable Tie Mount, 4-Way Tie Entry, Acrylic Adhesive Tape Mount, 0.19 in Maximum Tie Width, 1.12 in Base Length, 1.12 in Base Width, Nylon, White
Optimize cable management with our high-bond, four-way adhesive cable tie mount. Ideal for high-temp indoor use, they offer quick installation, easy orientation, and lasting reliability.
Panduit’s ABM112-AT-D 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standa rd cable ties and are designed for indoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are white in color and come in packages of 500.
Panduit - ABM112-AT-D - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Applications: Used with Miniature, Intermediate, and Standard Cables Ties
- Weather resistant
- For use with miniature, intermediate, standard, Super-Grip miniature and Super-Grip intermediate cable ties
Specifications
Specifications
Panduit - ABM112-AT-D - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized, RoHS Compliant |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 1.13 |
| Overall Length (mm) | 28.5 |
| Overall Width (In.) | 1.12 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Standards Met | CE Compliant, UL Recognized, RoHS Compliant |
| UPC | 07498364265 |
Panduit - ABM112-AT-D - Package Information
| UPC | 07498364265 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.1768 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.7679 |
