Brand: Panduit
|
SKU:
252564
Panduit ABM1M-A-C | Abm1M-A-C Cable Tie Mount, White, Pa 6.6, Rubber Adh., 0.5X0.5", Pk100
Regular price
$74.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABM1M-A-C | Abm1M-A-C Cable Tie Mount, White, Pa 6.6, Rubbe...
Regular price
$74.41
Unit price
Description
Description

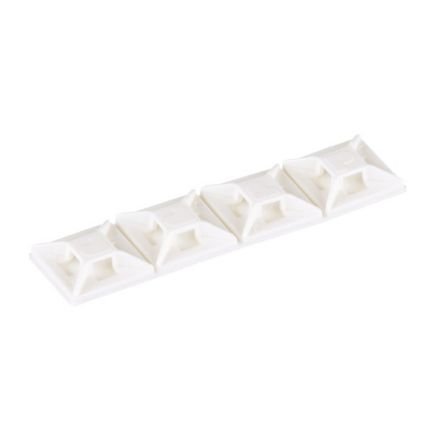

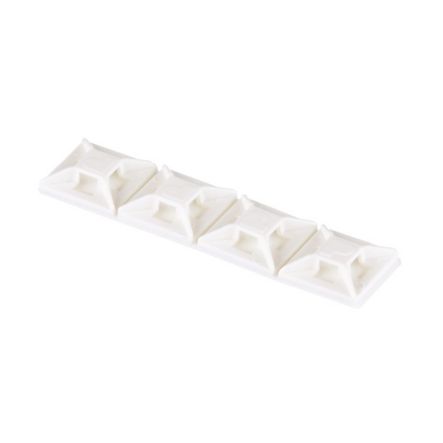

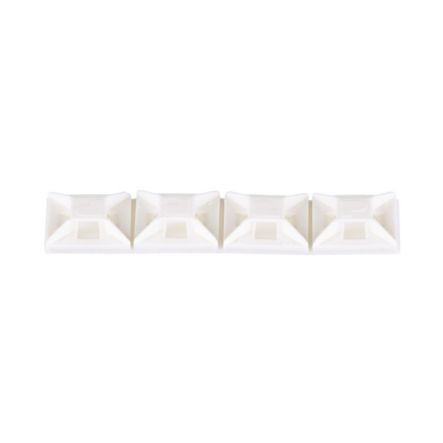

Panduit ABM1M-A-C | Abm1M-A-C Cable Tie Mount, White, Pa 6.6, Rubber Adh., 0.5X0.5", Pk100
Panduit’s ABM1M-A-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature cable ties and are intended for use in indoor environments. The mounts are 0.50" x 0.50" (12.7mm x 12.7mm), supplied in strips of 2, are white in color and come in packages of 100.
Panduit - ABM1M-A-C - Features
- Cable Tie Mount, Adhesive, 0.50 Inch x 0.50 Inch (12.7 mm x 12.7 mm), White. Superior adhesive for long term reliability. 2-up mount configuration speeds liner removal and installation. Four-way cable tie entry for easy orientation of wires and cables. Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled. Use with Panduit cable ties for a complete wire routing solution. Material is Nylon 6.6. Use with Miniature Panduit Cable Ties. Color is White.
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
Specifications
Specifications
Panduit - ABM1M-A-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM1M-A-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM1M-A-C |
| Item Description | Abm1M-A-C Cable Tie Mount, White, Pa 6.6, Rubber Adh., 0.5X0.5", Pk100 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.15 |
| Overall Height (mm) | 3.8 |
| Overall Length (In.) | 0.5 |
| Overall Length (mm) | 12.7 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized, RoHS Compliant |
| Static Load Capacity (kg) | 0.059 |
| Static Load Capacity (lb) | 0.13 |
| For Use With | Miniature Cross-Section Ties |
Panduit - ABM1M-A-C - Package Information
| UPC | 07498358062 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0320 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1599 |
Panduit - ABM1M-A-C - Videos
| Video 1 | Click to View |
|---|
