Brand: Panduit
|
SKU:
264741

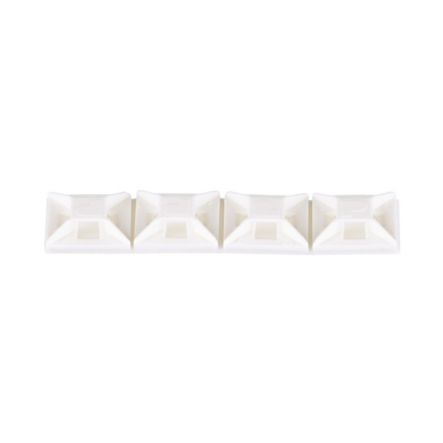

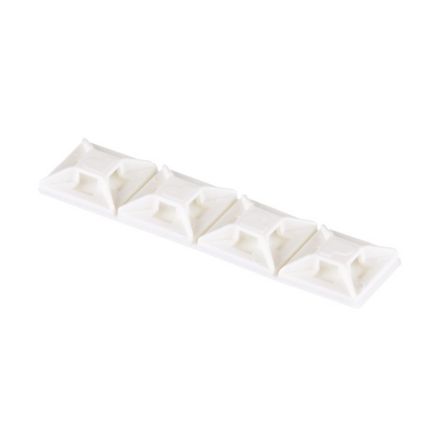

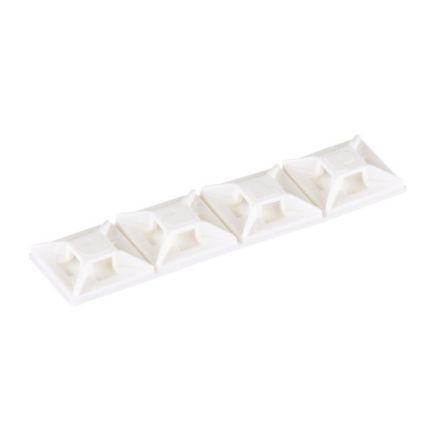

Panduit ABM1M-A-M | Abm1M-A-M Cable Tie Mount, White, Pa 6.6, Rubber Adh., 0.5X0.5", Pk1000
Regular price
$456.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABM1M-A-M | Abm1M-A-M Cable Tie Mount, White, Pa 6.6, Rubbe...
Regular price
$456.46
Unit price
Description
Description
Panduit ABM1M-A-M | Abm1M-A-M Cable Tie Mount, White, Pa 6.6, Rubber Adh., 0.5X0.5", Pk1000
Panduit’s ABM1M-A-M 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts are for use with miniature cable ties and are intended for use in indoor environments. They are .50" x .50" (12.7mm x 12.7mm), supplied in strips of 4, are white in color and come in packages of 1000.
Panduit - ABM1M-A-M - Features
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
Specifications
Specifications
Panduit - ABM1M-A-M - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM1M-A-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM1M-A-M |
| Item Description | Abm1M-A-M Cable Tie Mount, White, Pa 6.6, Rubber Adh., 0.5X0.5", Pk1000 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.15 |
| Overall Height (mm) | 3.8 |
| Overall Length (In.) | 0.5 |
| Overall Length (mm) | 12.7 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized, RoHS Compliant |
| Static Load Capacity (kg) | 0.059 |
| Static Load Capacity (lb) | 0.13 |
| For Use With | Miniature Cross-Section Ties |
Panduit - ABM1M-A-M - Package Information
| UPC | 07498358063 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0295 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.1476 |
Panduit - ABM1M-A-M - Videos
| Video 1 | Click to View |
|---|
