Panduit ABM2S-A-C15 | ABM2S-A-C15 Cable Tie Mount
Description
Description

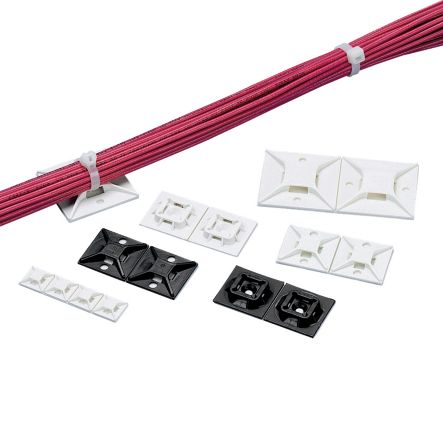

The 4-way adhesive backed cable tie mount in ivory is mounted with rubber adhesive tape. It is 1" long x 1" wide (25.4 x 25.4 mm) and made of ABS plastic. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.
Cable Tie Mount, Material ABS, Color Ivory, Environment - Indoor, Height 0.16 Inch, Length 1.00 Inch, Width 1.00 Inch, Mounting Method - Rubber Adhesive Tape, Temperature Range 120 Degrees Fahrenheit (49 Degrees Celsius), Use With Miniature through Standard Cable Ties
Specifications
Specifications
Panduit - ABM2S-A-C15 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM2S-A-C15 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM2S-A-C15 |
| Item Description | ABM2S-A-C15 Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | Ivory |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Overall Height (In.) | 0.165 |
| Overall Height (mm) | 4.2 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - ABM2S-A-C15 - Package Information
| UPC | 07498358029 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0568 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.2839 |
Panduit - ABM2S-A-C15 - Videos
| Video 1 | Click to View |
|---|
