Brand: Panduit
|
SKU:
711994
Panduit ABM2S-A-C20 | Abm2S-A-C20 Cable Tie Mount, Light Black, Abs, Rubber Adh., 1X1", Pk100
Regular price
$151.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ABM2S-A-C20 | Abm2S-A-C20 Cable Tie Mount, Light Black, Abs...
Regular price
$151.31
Unit price
Description
Description
Panduit ABM2S-A-C20 | Abm2S-A-C20 Cable Tie Mount, Light Black, Abs, Rubber Adh., 1X1", Pk100

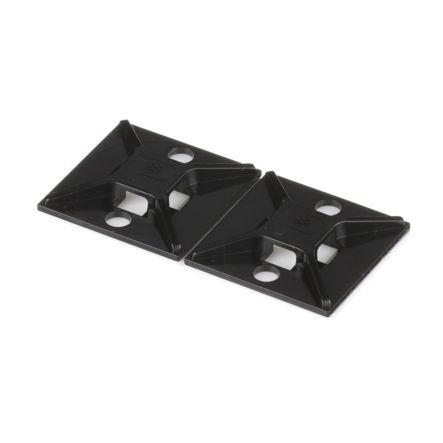

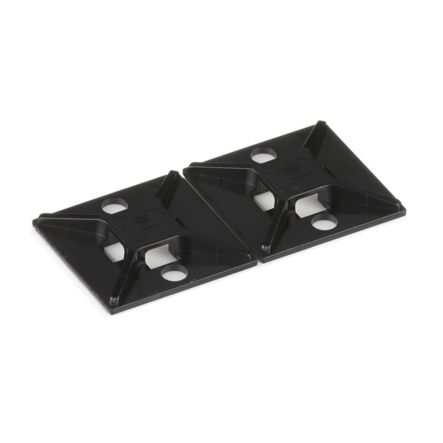

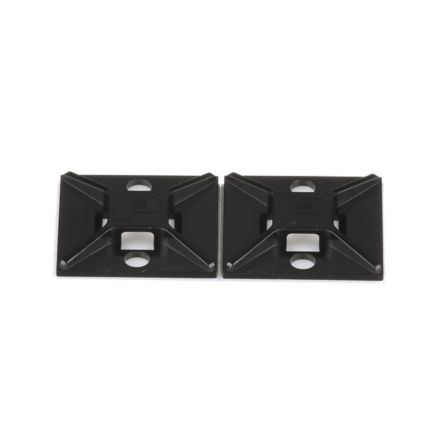

Panduit’s ABM2S-A-C20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of ABS plastic. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
Panduit - ABM2S-A-C20 - Features
- Cable Tie Mount, Adhesive, 1 Inch x 1 Inch (25.4 mm x 25.4 mm). Superior adhesive for long term reliability. 2-up mount configuration speeds liner removal and installation. Four-way cable tie entry for easy orientation of wires and cables. Adhesive bac king allows routing of wires and cables where mounting holes cannot be drilled. Use with Panduit cable ties for a complete wire routing solution. Material is ABS. Use with Miniature through Standard Panduit Cable Ties. Color is White.
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drlled
- Used with Panduit cable ties for a complete wire routing solution
Specifications
Specifications
Panduit - ABM2S-A-C20 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM2S-A-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM2S-A-C20 |
| Item Description | Abm2S-A-C20 Cable Tie Mount, Light Black, Abs, Rubber Adh., 1X1", Pk100 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | 0.15 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - ABM2S-A-C20 - Package Information
| UPC | 07498309574 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0568 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2839 |
