Panduit ABM2S-A-D | ABM2S-A-D Cable Tie Mount, White, ABS, Rubber A...
Description
Description

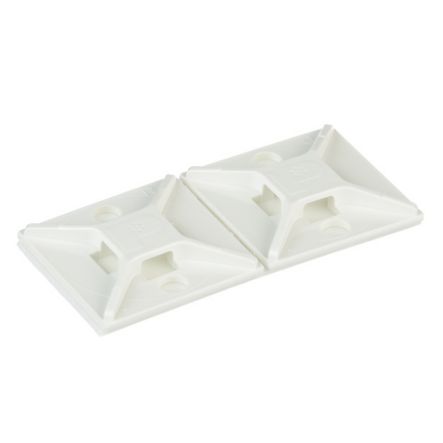

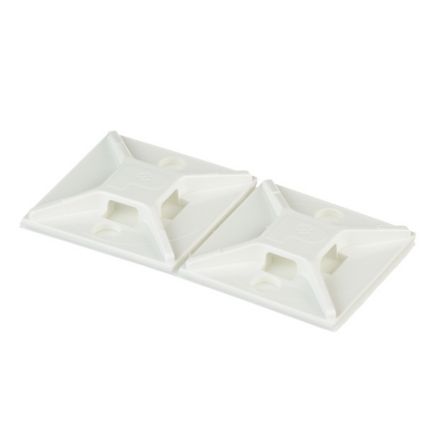

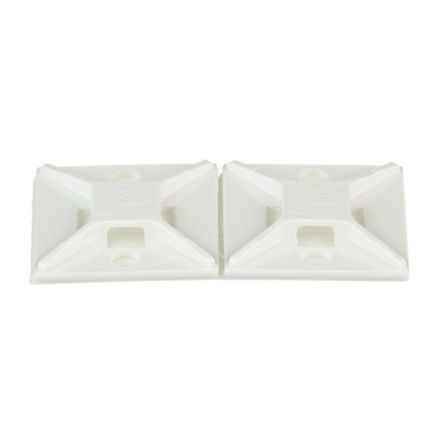

Panduit’s ABM2S-A-D 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of ABS plastic. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are white in color and come in packages of 500.
Panduit ABM2S-A-D - MOUNT - MOUNT 4 WAY ADHESIVE BACKED
Specifications
Specifications
Panduit - ABM2S-A-D - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM2S-A-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM2S-A-D |
| Item Description | ABM2S-A-D Cable Tie Mount, White, ABS, Rubber Adh., 1x1", PK500 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | 0.15 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| Static Load Capacity (lb) | 0.5 |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - ABM2S-A-D - Package Information
| UPC | 07498358030 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1285 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.2851 |
