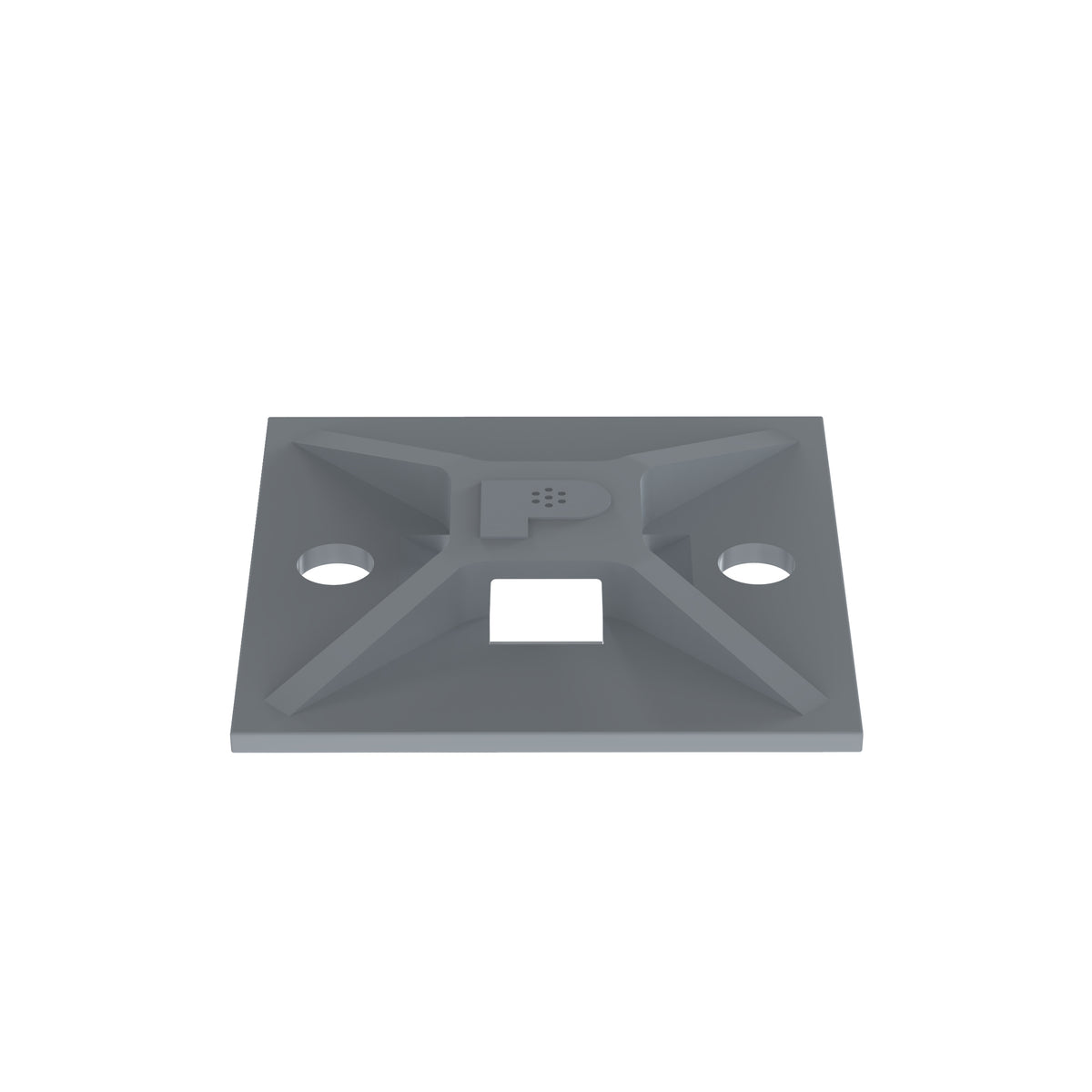

Panduit ABM2S-A-D14 | 4-Way Adhesive Backed Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Adhesive Backed, 4-Way Tie Entry, Threaded Rubber Adhesive Mount, 1 in Base Length, 1 in Base Width, ABS, Gray
Optimize cable management with our high-bond, four-way adhesive cable tie mount. Ideal for high-temp indoor use, they offer quick installation, easy orientation, and lasting reliability.
Panduit’s ABM2S-A-D14 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of ABS plastic. These mounts can be used with miniature, intermediate, and stand ard cable ties and are designed for indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are gray in color and come in packages of 500.
Panduit - ABM2S-A-D14 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Applications: Used with Miniature, Intermediate, and Standard Cables Ties
- Allows cable tie entry from all four sides
- Produced 2-up or 4-up for fast and easy liner removal to speed installation
- Uses premium adhesive for a long term, reliable bond
- Adhesive backing allows routing of wire and cable where mounting holes cannot be drilled
- Mounts should be use with cable tie for a complete wire routing solution
Specifications
Specifications
Panduit - ABM2S-A-D14 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Material Description | ABS () |
| Product Type | Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | Gray |
| Environment | Indoor |
| Material | ABS |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Adhesive Tape |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.1 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.227 |
| UPC | 07498358031 |
Panduit - ABM2S-A-D14 - Package Information
| UPC | 07498358031 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.1326 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.3262 |
Panduit - ABM2S-A-D14 - Videos
| Panduit ABM2S-A-D14 Videos | Click to View |
|---|
