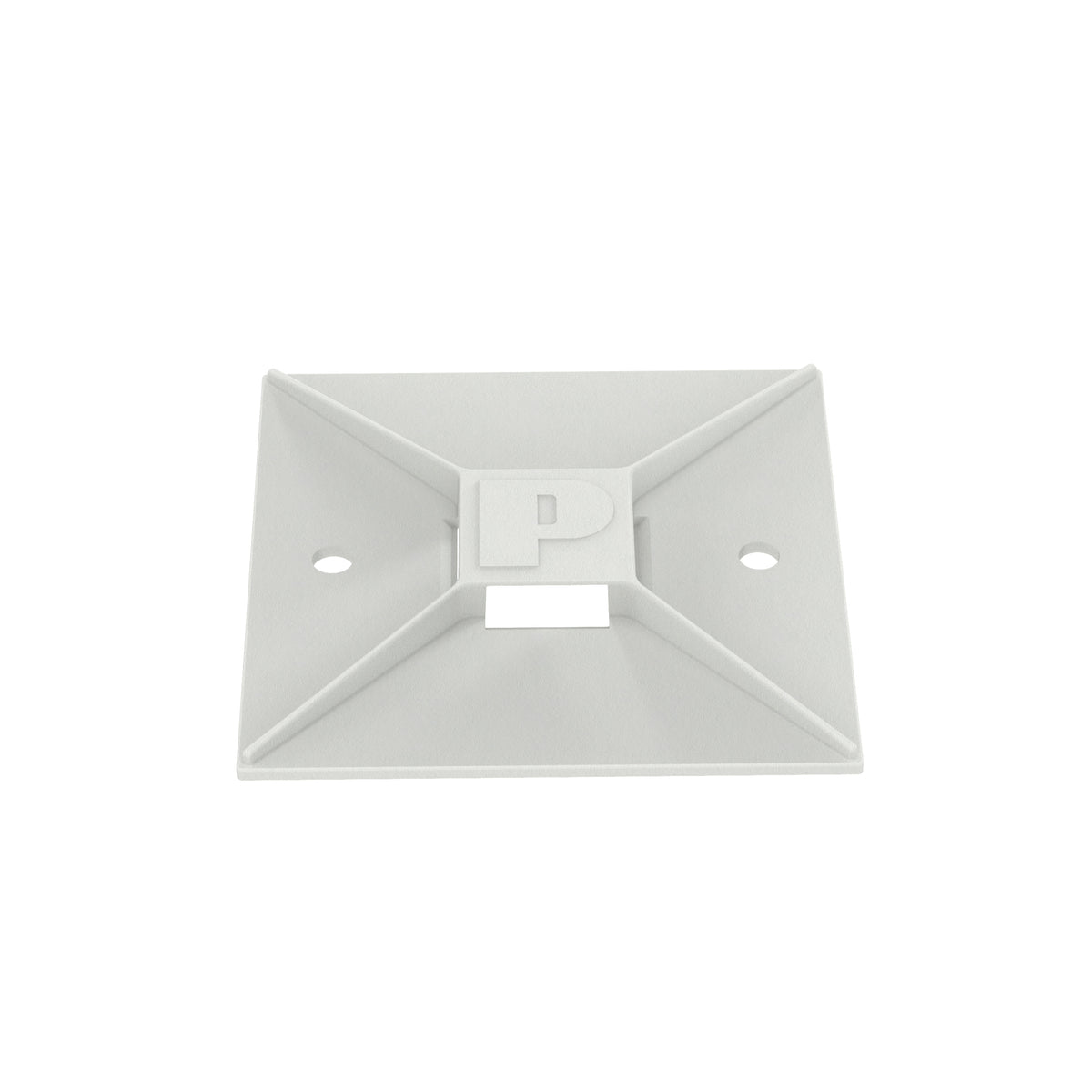

Panduit ABM2S-S6-D | 4-Way Adhesive Backed Cable Tie Mount
Description
Description
Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cable Tie Mount, 4-Way Tie Entry, Adhesive/Threaded Mount, 0.19 in Maximum Tie Width, 1 in Base Length, 1 in Base Width, ABS, White
Optimize cable management with our high-bond, four-way adhesive cable tie mount. Ideal for high-temp indoor use, they offer quick installation, easy orientation, and lasting reliability.
Panduit’s ABM2S-S6-D 4-Way Cable Tie Mounts allow cable tie entry from all four sides. They can easily be applied with user supplied adhesive or size #6 (M3) screws. They are made of ABS Plastic and designed for indoor use. Used with miniature, interme diate and standard cable ties. They are 1.0" x 1.0" (25.4mm x 25.4mm), are white in color and come in packages of 500.
Panduit - ABM2S-S6-D - Features
- Applications: Used with Miniature, Intermediate, and Standard Cables Ties
- Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
- Rubber based adhesive provides a strong and reliable bond
- Allow cable tie entry from all four sides
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - ABM2S-S6-D - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Material Description | ABS () |
| Product Type | Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Color | White |
| Environment | Indoor |
| Material | ABS |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #6 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 4.1 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358056 |
Panduit - ABM2S-S6-D - Package Information
| UPC | 07498358056 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.1285 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.2851 |
Panduit - ABM2S-S6-D - Videos
| Panduit ABM2S-S6-D Videos | Click to View |
|---|
