Panduit ABM3H-A-L | Cable Tie Mount, Adhesive, 1.5";x1.5"...
Description
Description

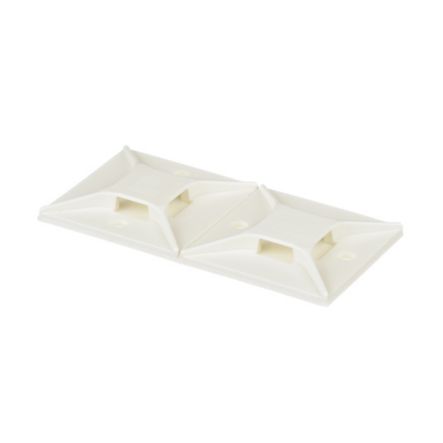

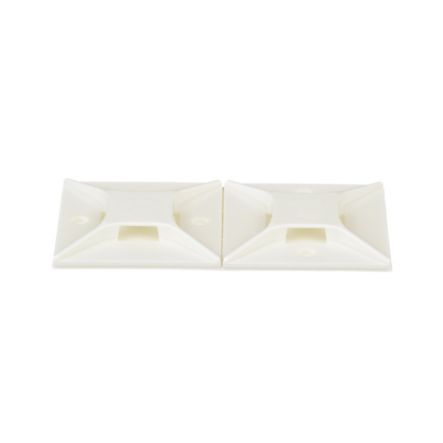

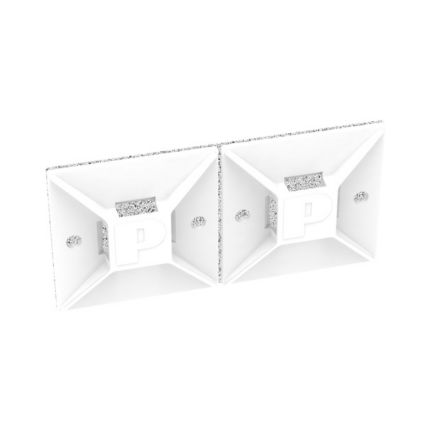

Panduit’s ABM3H-A-L 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are white in color and come in packages of 50.
Panduit - ABM3H-A-L - Features
- Superior adhesive for long term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- Specification Description
- 4-Way Adhesive Backed Cable Tie Mount
- Material: Nylon 6.6
- Color: White
- Screw Size: #6 (M3)
- Mounting Method: Rubber Adhesive Tape
- Environment: Indoor
- Maximum Static Load: 1.13 lb (513 g)
- Dimension: 1.5 Inch Length x 1.5 Inch Width x 0.25 Inch Height (38.1 mm x 38.1 mm x 6.4 mm)
Specifications
Specifications
Panduit - ABM3H-A-L - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM3H-A-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM3H-A-L |
| Item Description | ABM3H-A-L Cable Tie Mount, White, PA 6.6, Rubber Adh., 1.5x1.5", PK50 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.29 |
| Overall Height (mm) | 7.4 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.513 |
| Static Load Capacity (lb) | 1.13 |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
Panduit - ABM3H-A-L - Package Information
| UPC | 07498358472 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.0334 |
| Standard Ctn. Qty. | 500 |
| Standard Ctn. Volume (cf) | 0.3338 |
Panduit - ABM3H-A-L - Videos
| Video 1 | Click to View |
|---|
