Panduit ABM3H-A-T | Cable Tie Mount | UPC - 07498358473
Description
Description

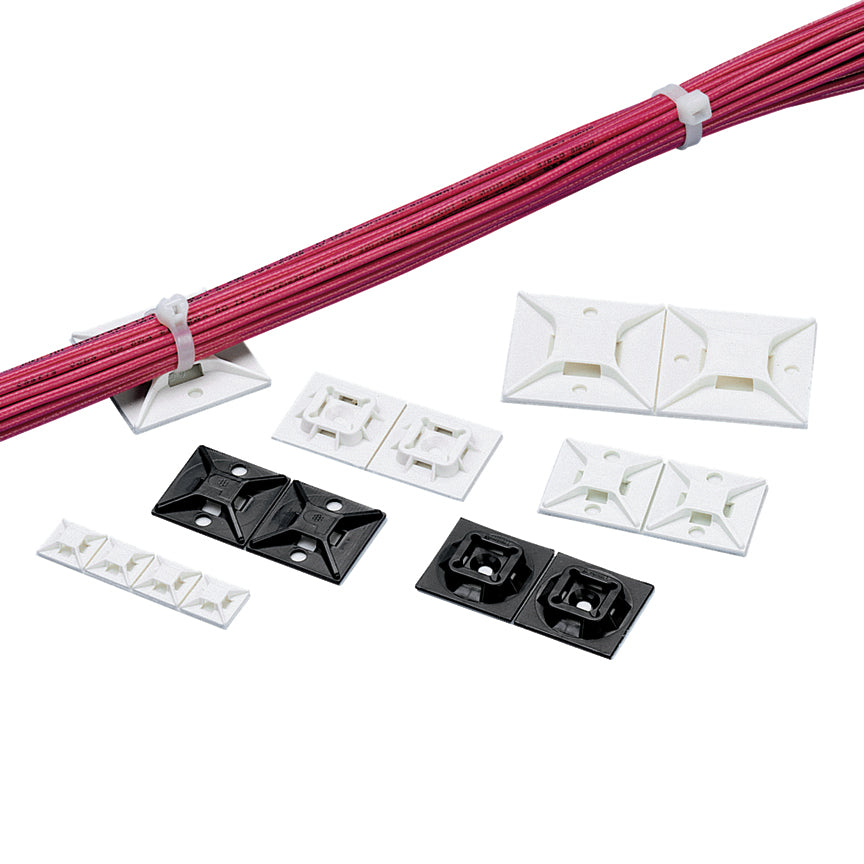

Offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Cable Tie Mount, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.35 in Maximum Tie Width, 1-1/2 in Base Length, 1-1/2 in Base Width, Nylon, White
Features + Benefits
- Produced 2-up and with tear tabs for fast and easy liner removal to speed installation
- Rubber-based adhesive provides a strong and reliable bond
- Allow cable tie entry from all four sides
- For use with miniature, intermediate, standard, light-heavy, heavy and miniature Tak-Ty hook and loop ties
Panduit ABM3H-A-T | Cable Tie Mount | UPC - 07498358473 Key Specs
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120.2 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20.2 |
| Mount Method | Rubber Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.29 |
| Overall Height (mm) | 7.4 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
Panduit ABM3H-A-T | Cable Tie Mount | UPC - 07498358473 Data Sheets
| Part Drawings | ABM3H-A Adhesive Backed Mount GB0239GW-R2 | Download and View |
| Application Guides | Adhesive Backed Mounts and Devices Application Guide WACB06 | Download and View |
Panduit ABM3H-A-T | Cable Tie Mount | UPC - 07498358473 Environmental Information
| Panduit's RoHS Statement | Download and View |
