Panduit ABM3H-AT-L | ABM3H-AT-L Cable Tie Mount
Description
Description

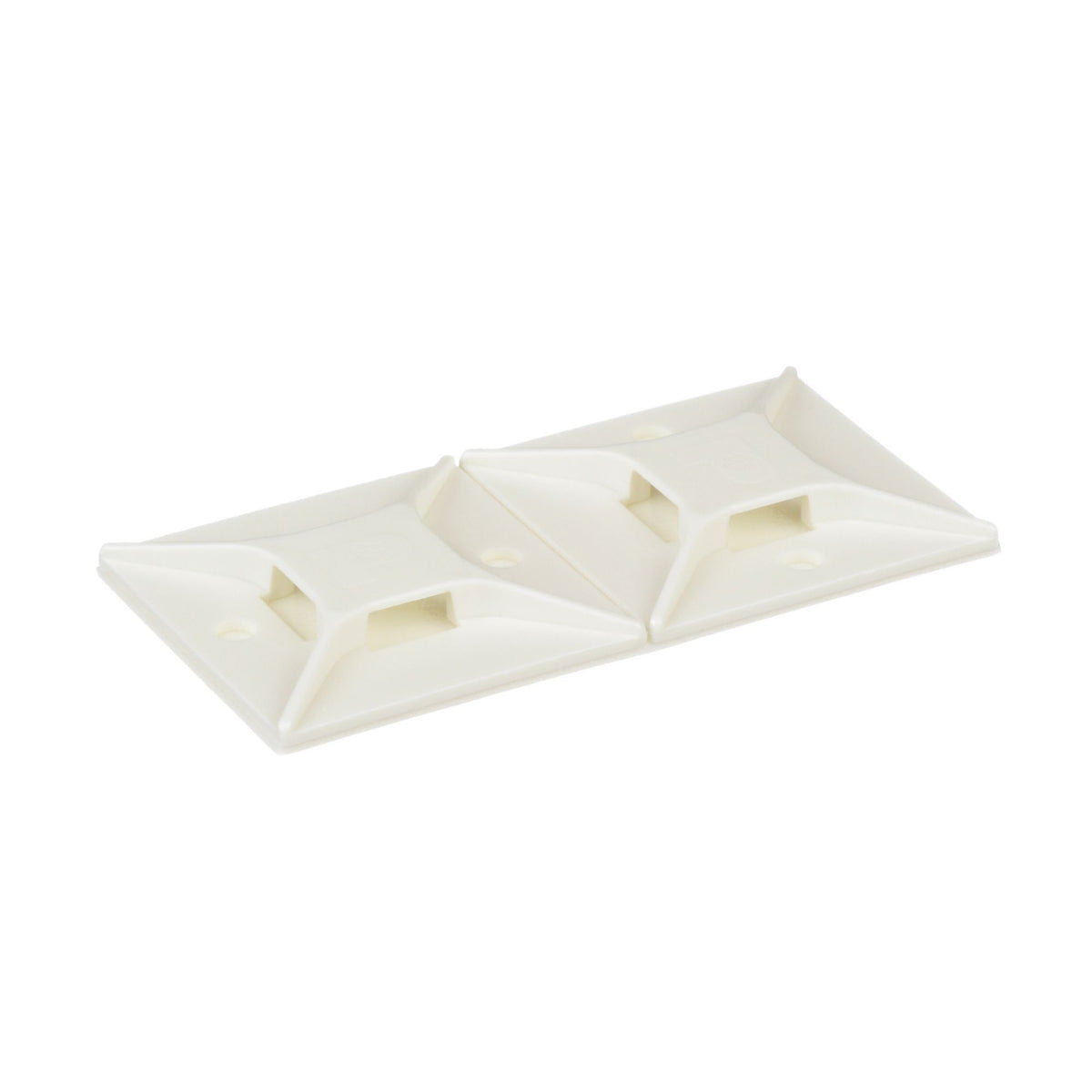

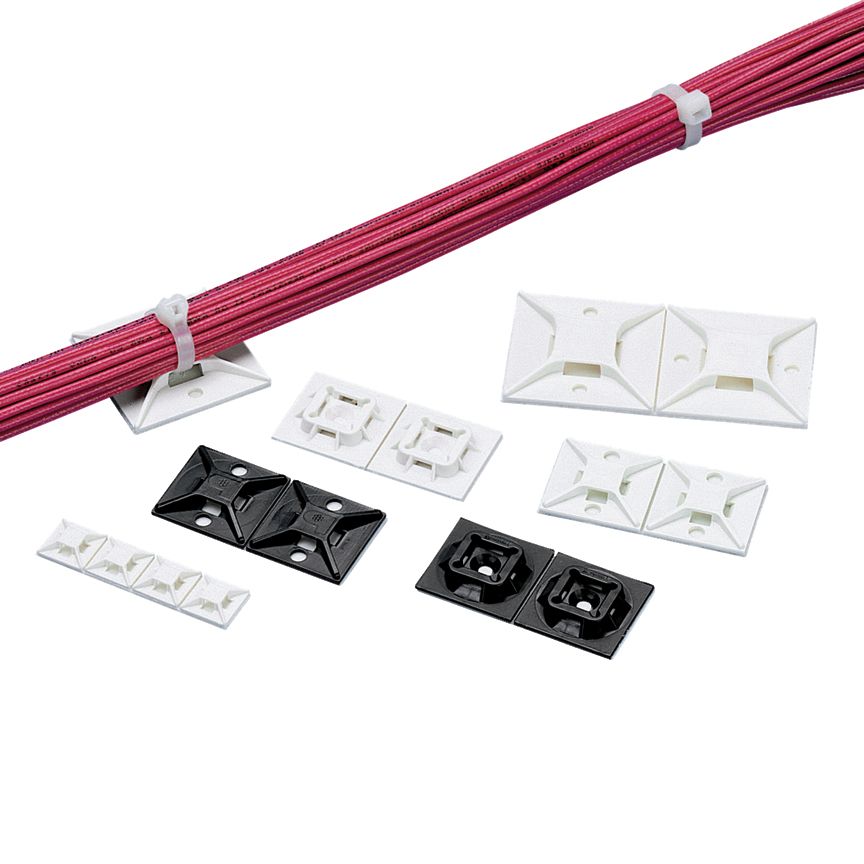

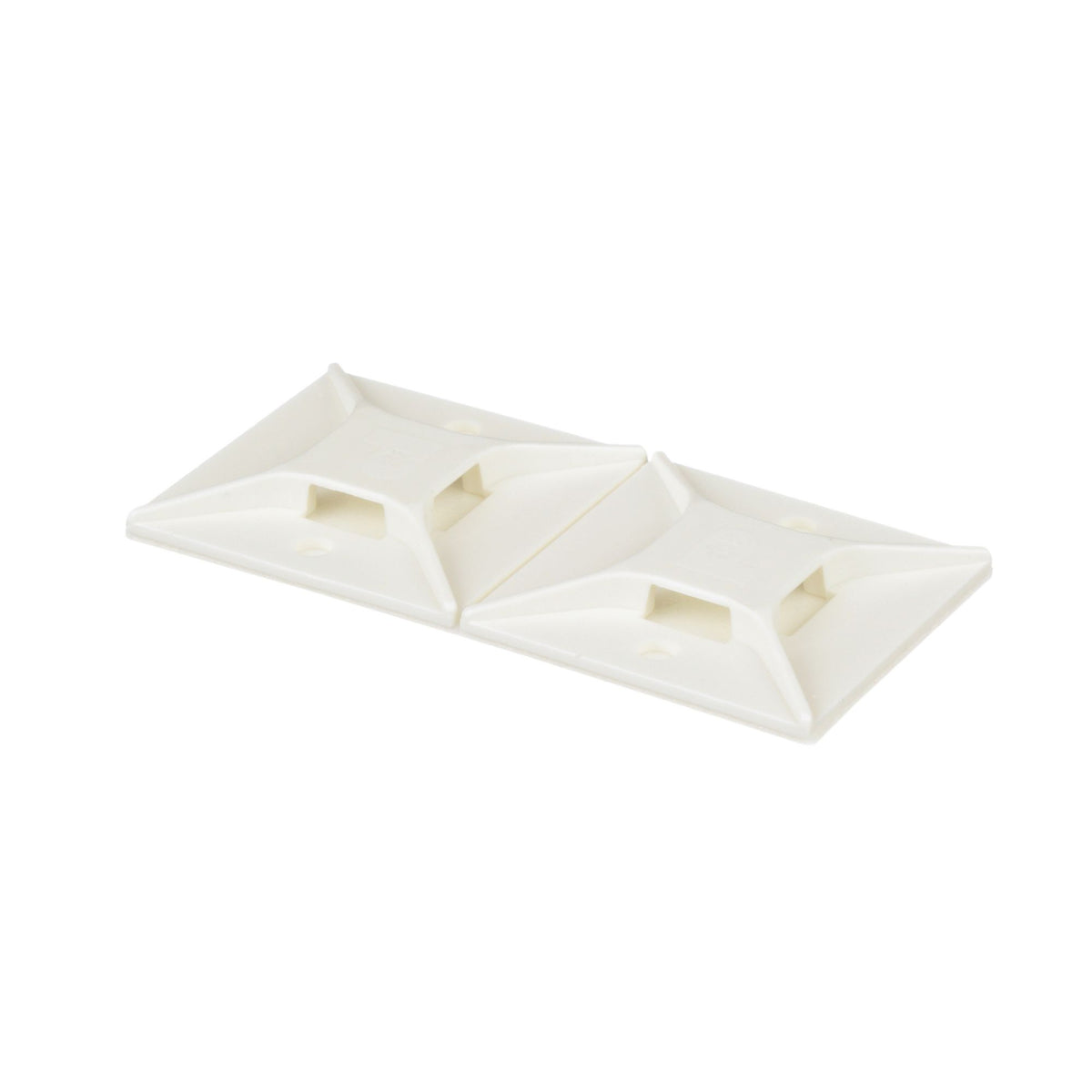

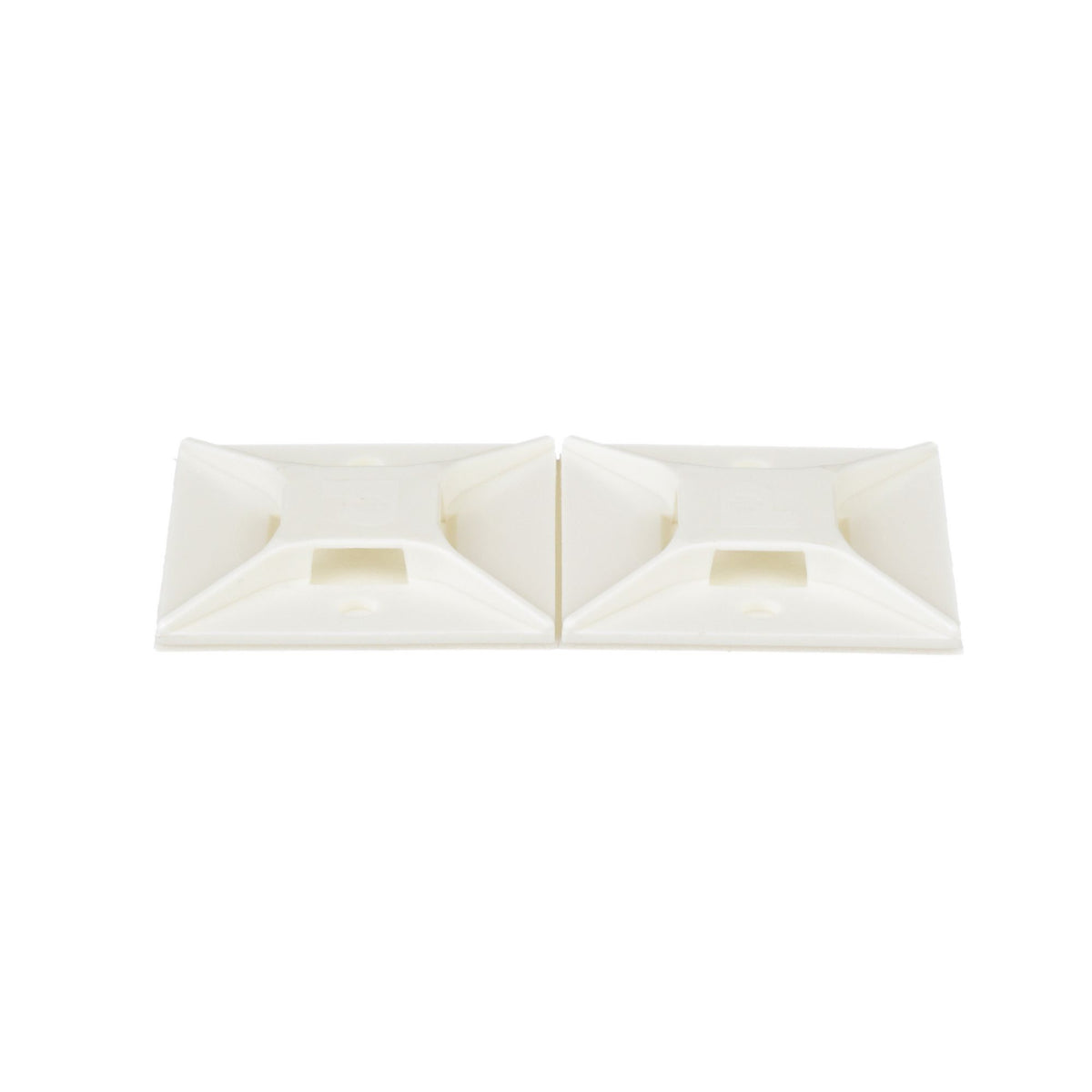

The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 1.5" long x 1.5" wide (38.1 x 38.1 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. It is designed for indoor, high-temperature environments and comes in packages of 50.
Panduit ABM3H-AT-L Panduit Abm3hatl Cable Managem50/pk
Specifications
Specifications
Panduit - ABM3H-AT-L - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM3H-AT-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM3H-AT-L |
| Item Description | ABM3H-AT-L Cable Tie Mount |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Acrylic Adhesive Tape |
| Overall Height (In.) | 0.21 |
| Overall Height (mm) | 5.4 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| Standards Met | UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant |
| Static Load Capacity (kg) | 0.513 |
| Static Load Capacity (lb) | 1.13 |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
Panduit - ABM3H-AT-L - Package Information
| UPC | 07498358481 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0420 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.4196 |
