Panduit ABM4H-AT-L | Abm4H-At-L Cable Tie Mount, White, Pa 6.6, Acr...
Description
Description

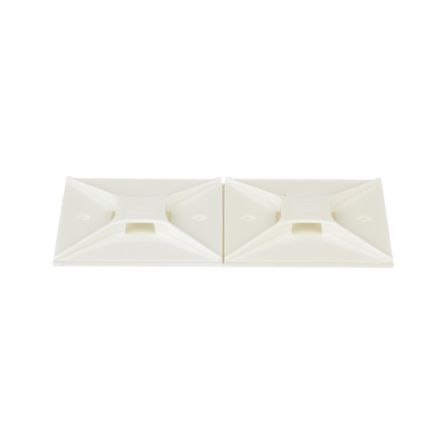

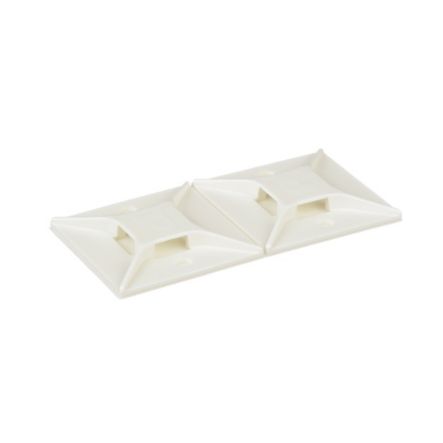

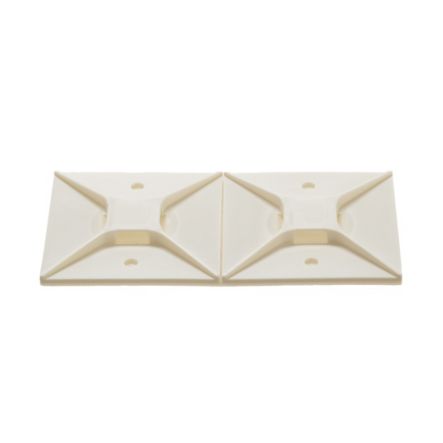

Panduit ABM4H-AT-L Cable Tie Mount, 4-Way Entry, High Temperature/Indoor, Nylon 6.6, Acrylic Adhesive, 2";x2"; (50.8mm x 50.8mm), White, Pack of 50
Panduit’s ABM4H-AT-L 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor, high-temperature environments. They are 2" x 2" (50.8mm x 50.8mm), supplied in strips of 2, are white in color and come in packages of 50.
Specifications
Specifications
Panduit - ABM4H-AT-L - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - ABM4H-AT-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ABM4H-AT-L |
| Item Description | Abm4H-At-L Cable Tie Mount, White, Pa 6.6, Acrylic Adh., 2X2", Pk50 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| Product Type | Cable Tie Mount |
| Color | White |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Mount Method | Acrylic Adhesive Tape |
| Mounting Hole Thread Size | #6 |
| Overall Height (mm) | 50.8 |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 50.8 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized: E136577, RoHS Compliant |
| Static Load Capacity (kg) | 0.907 |
| Static Load Capacity (lb) | 2 |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
Panduit - ABM4H-AT-L - Package Information
| UPC | 07498358479 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0894 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.8942 |
Panduit - ABM4H-AT-L - Videos
| Video 1 | Click to View |
|---|
